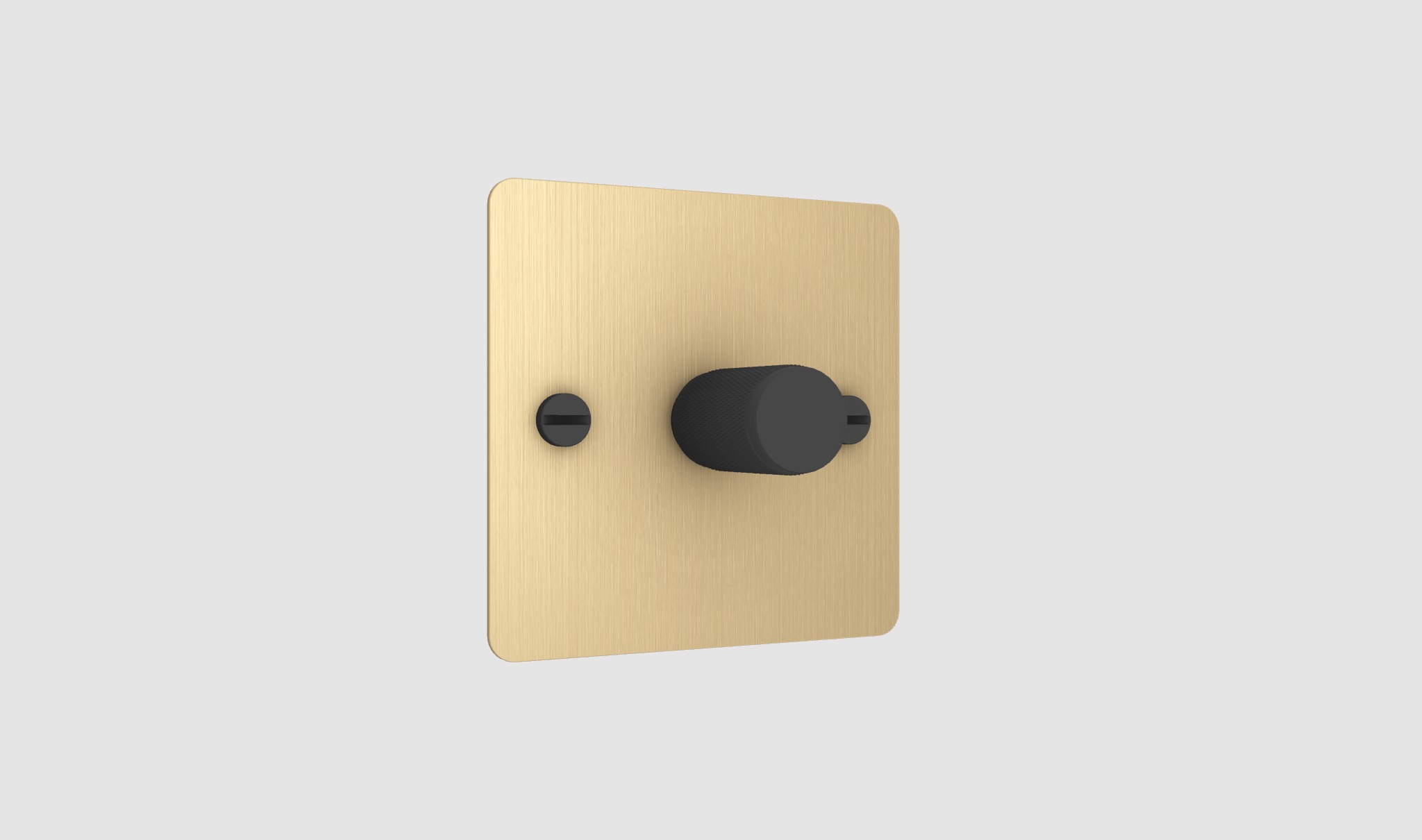

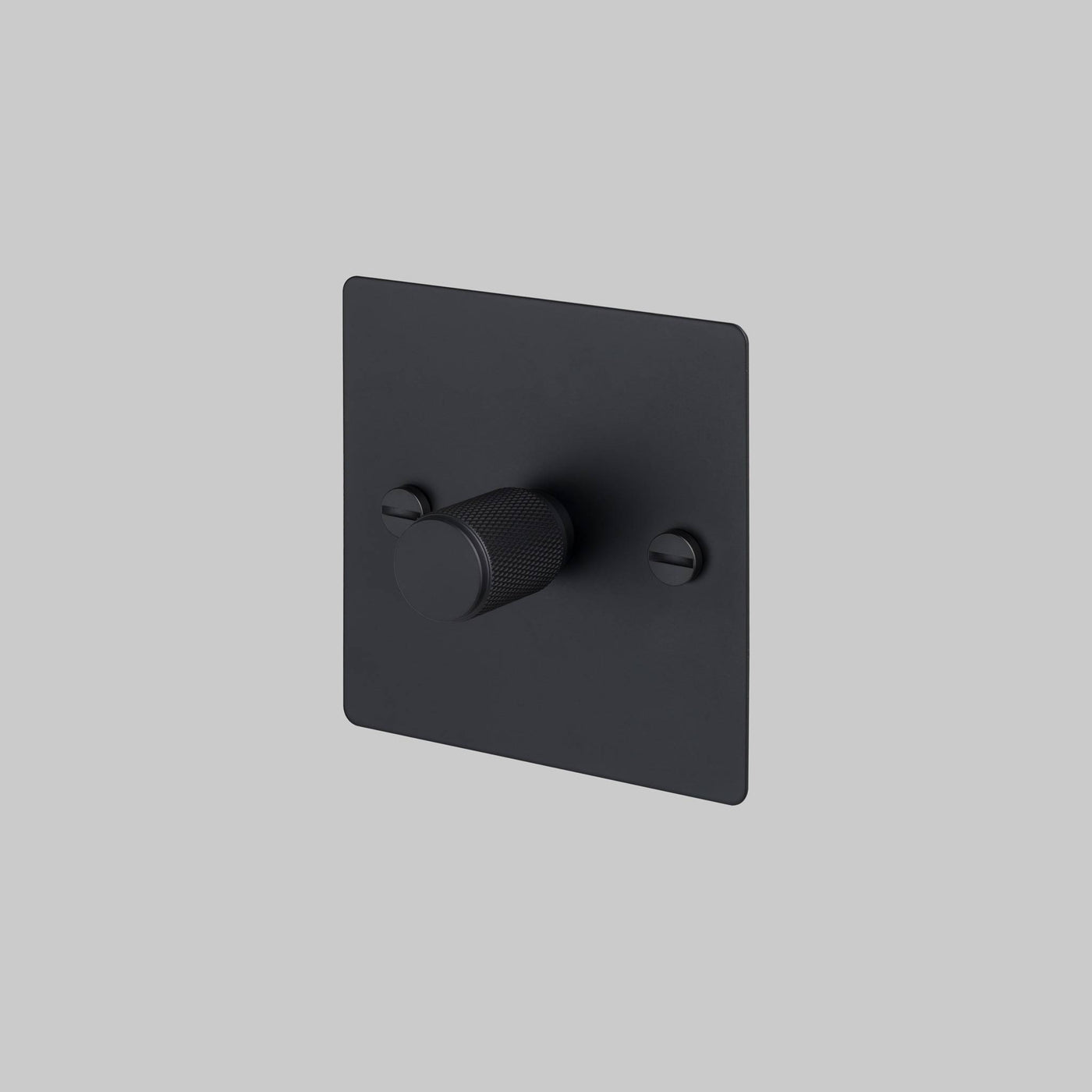

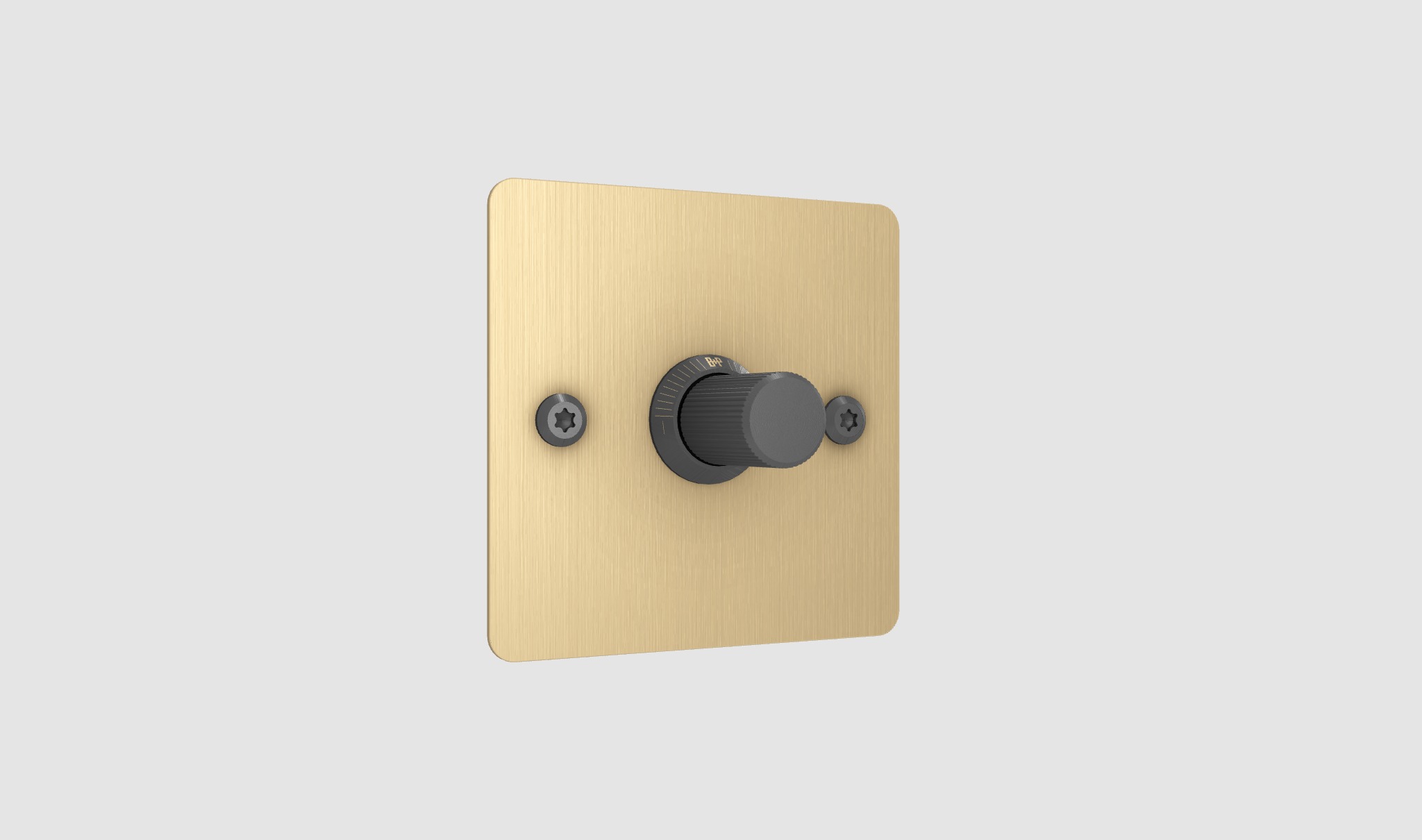

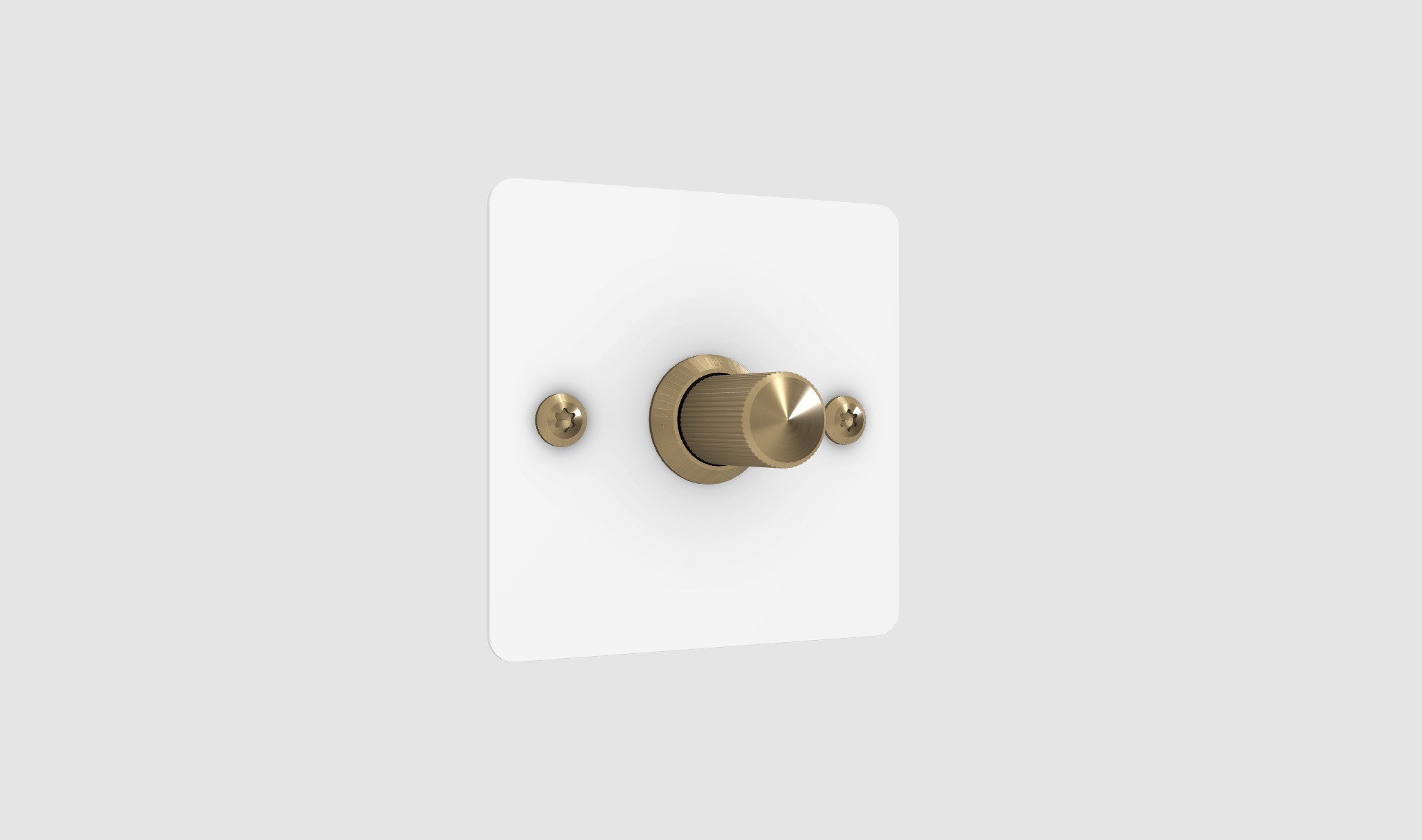

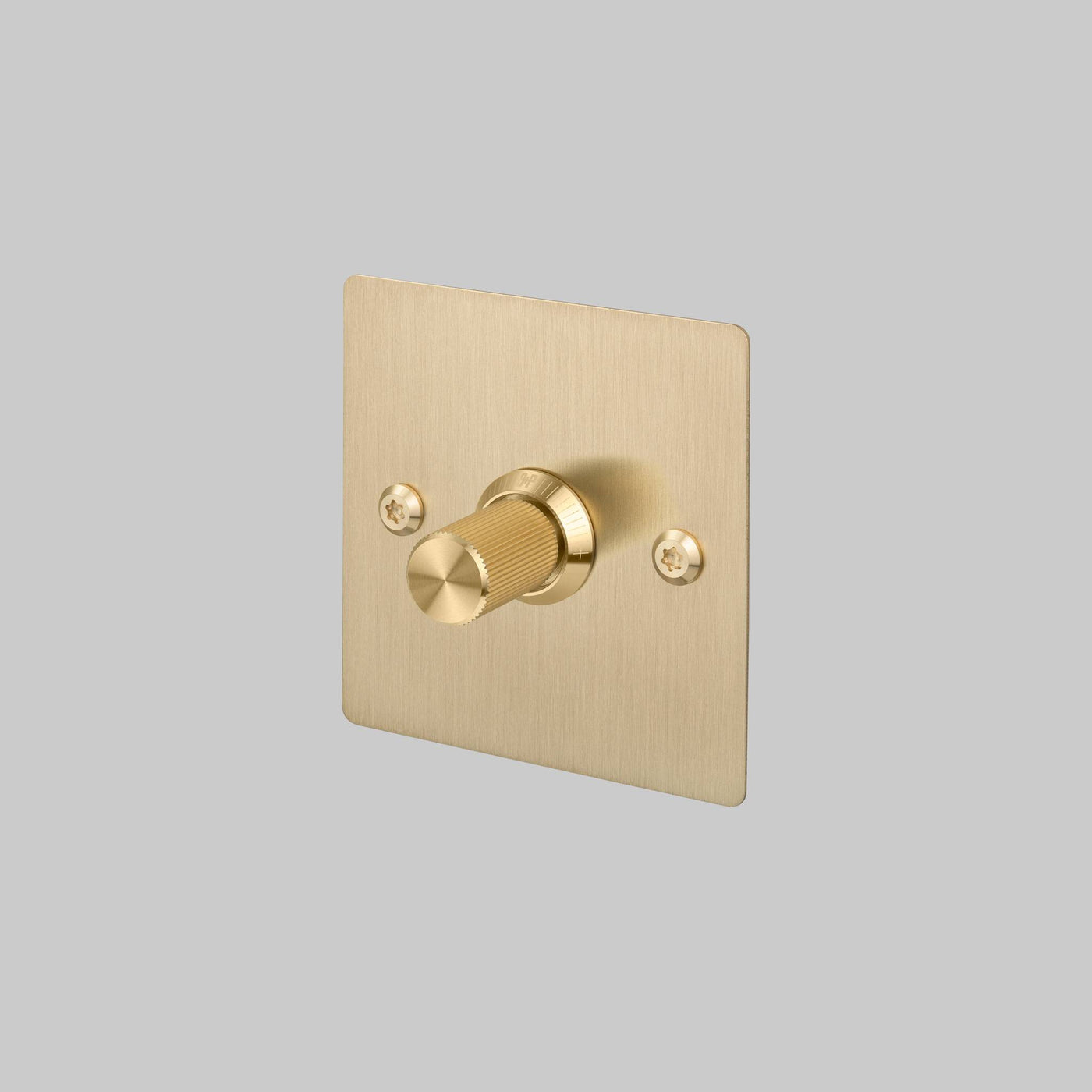

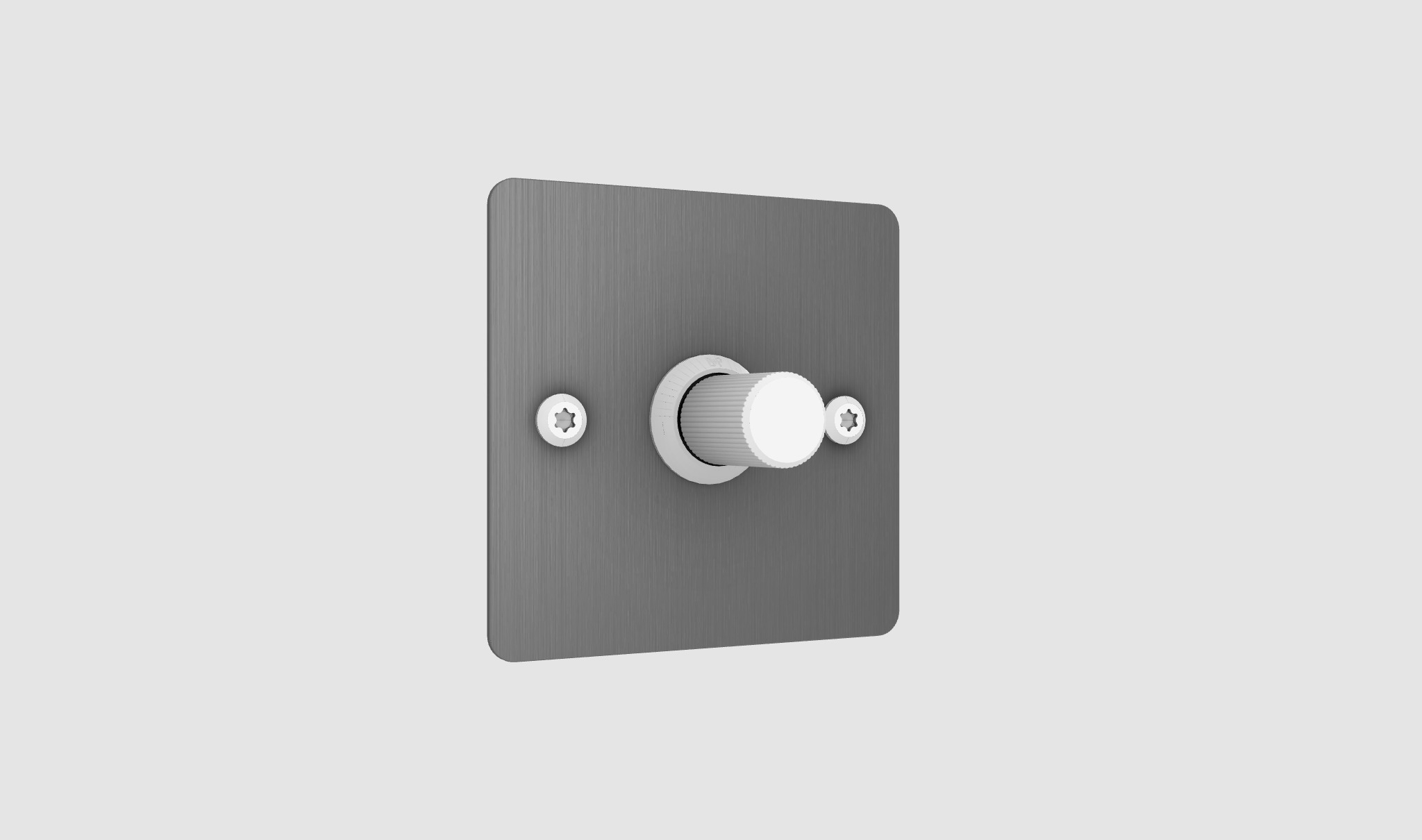

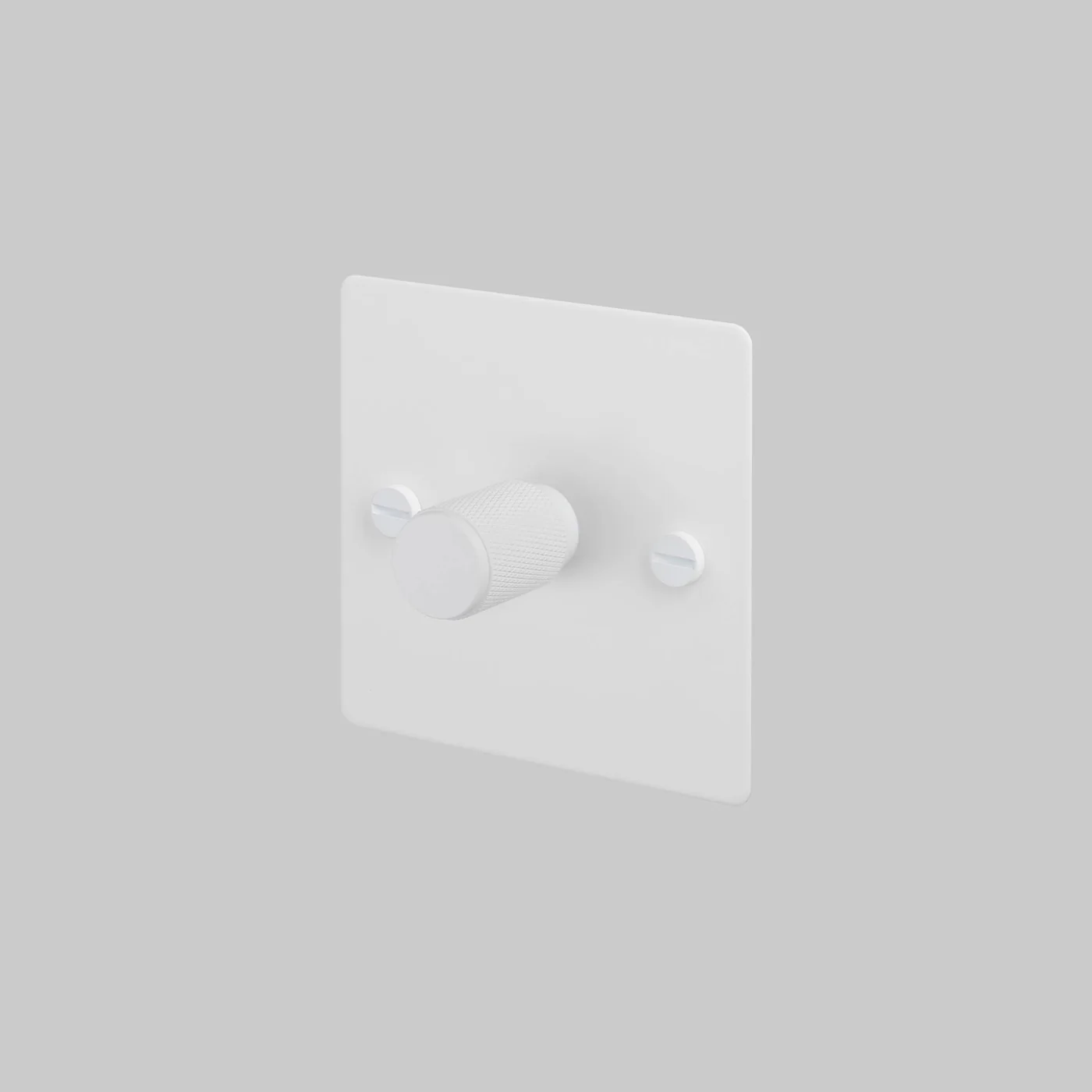

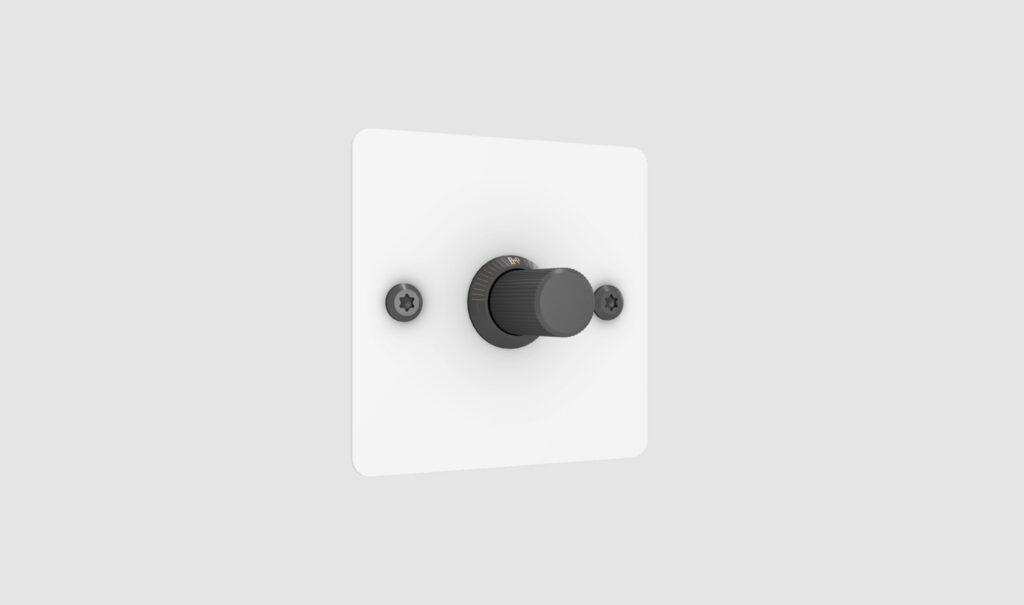

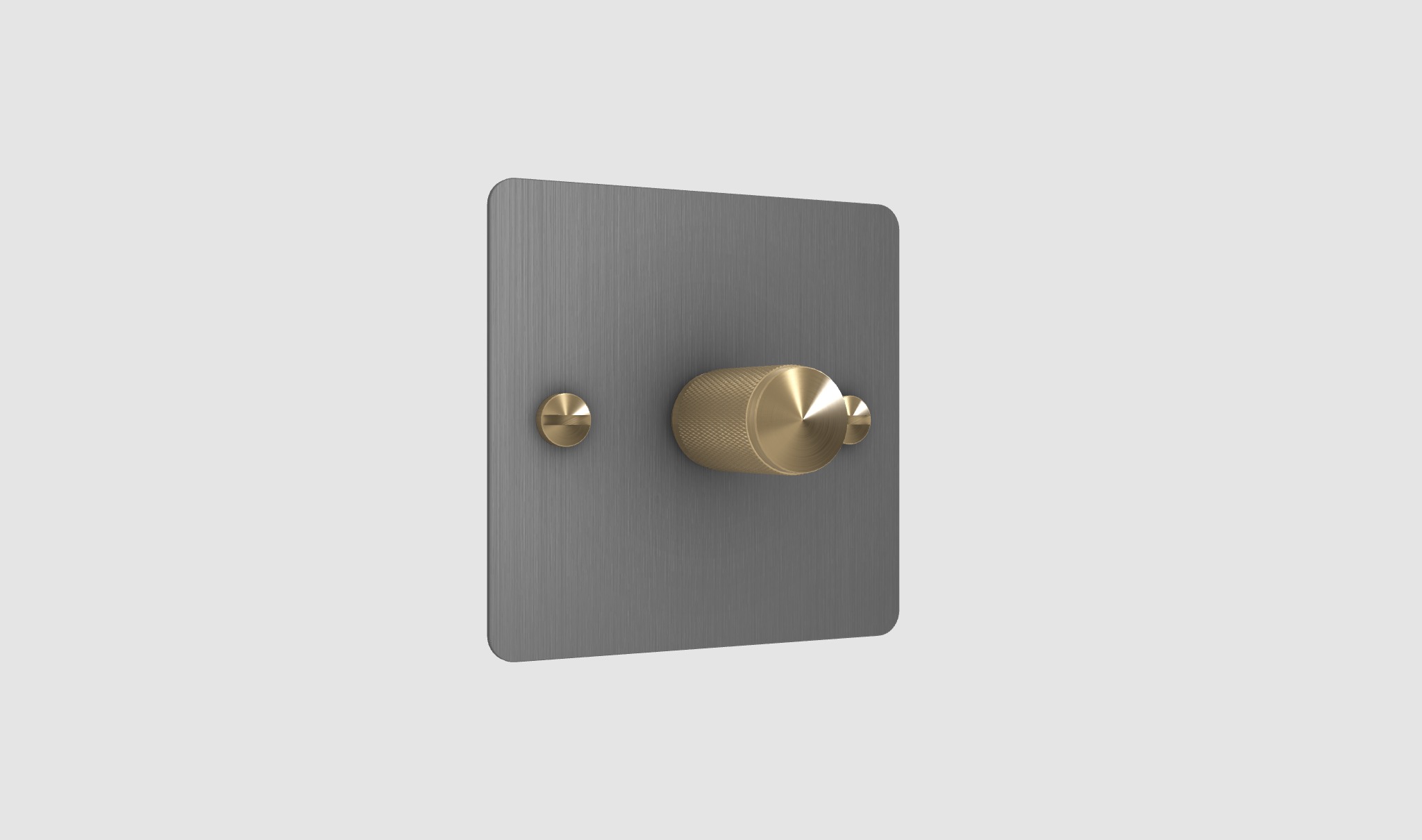

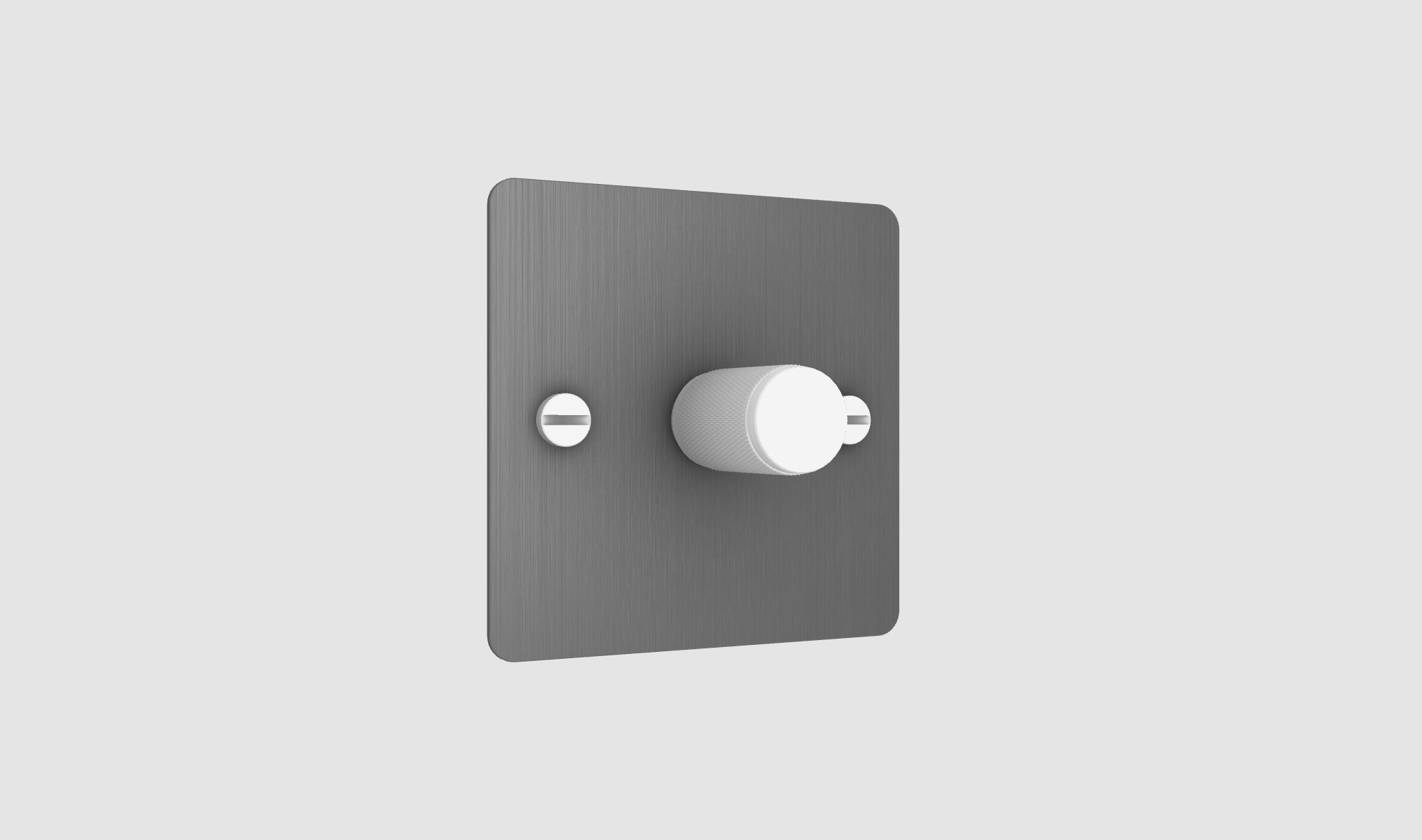

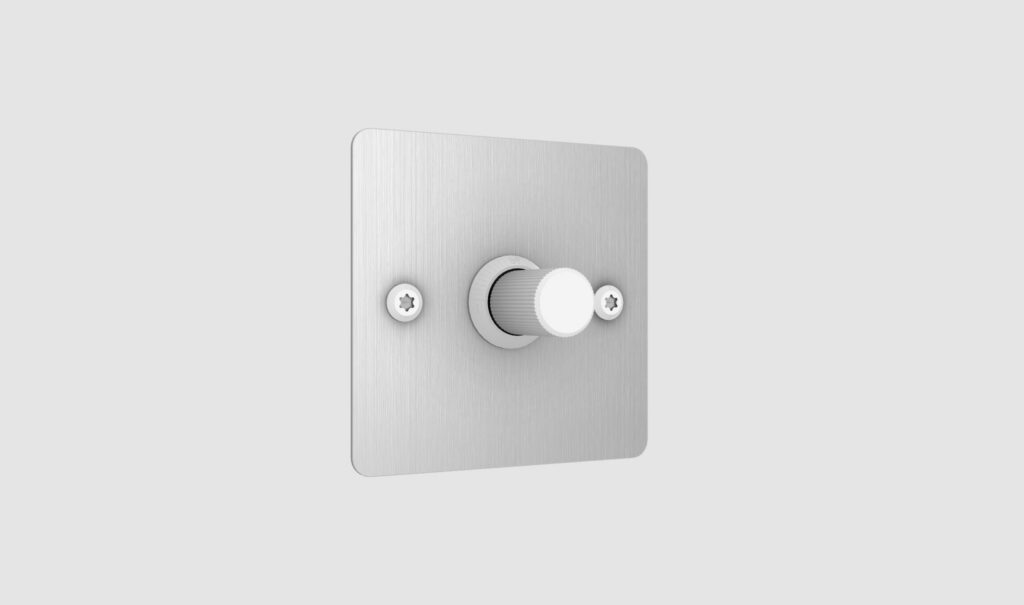

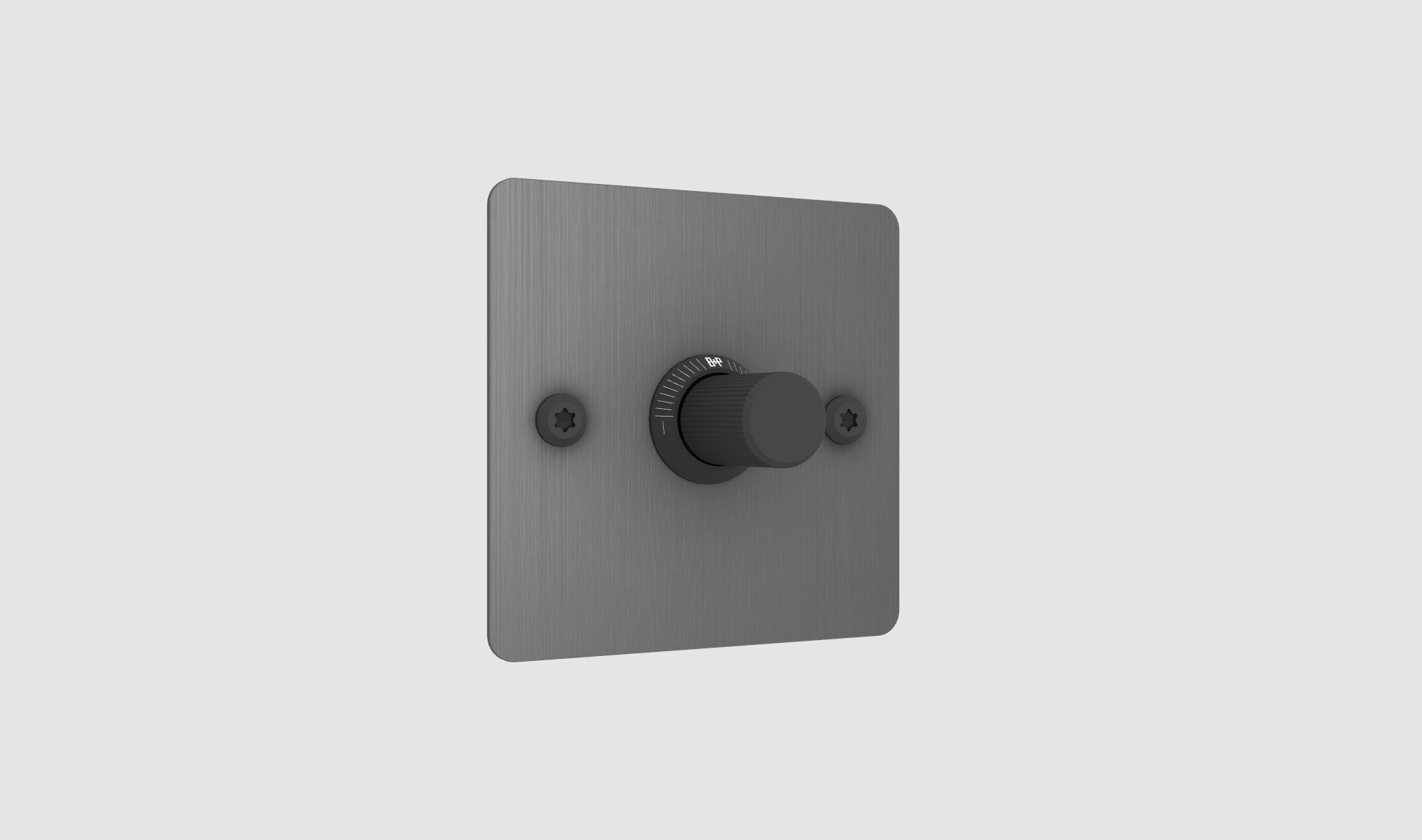

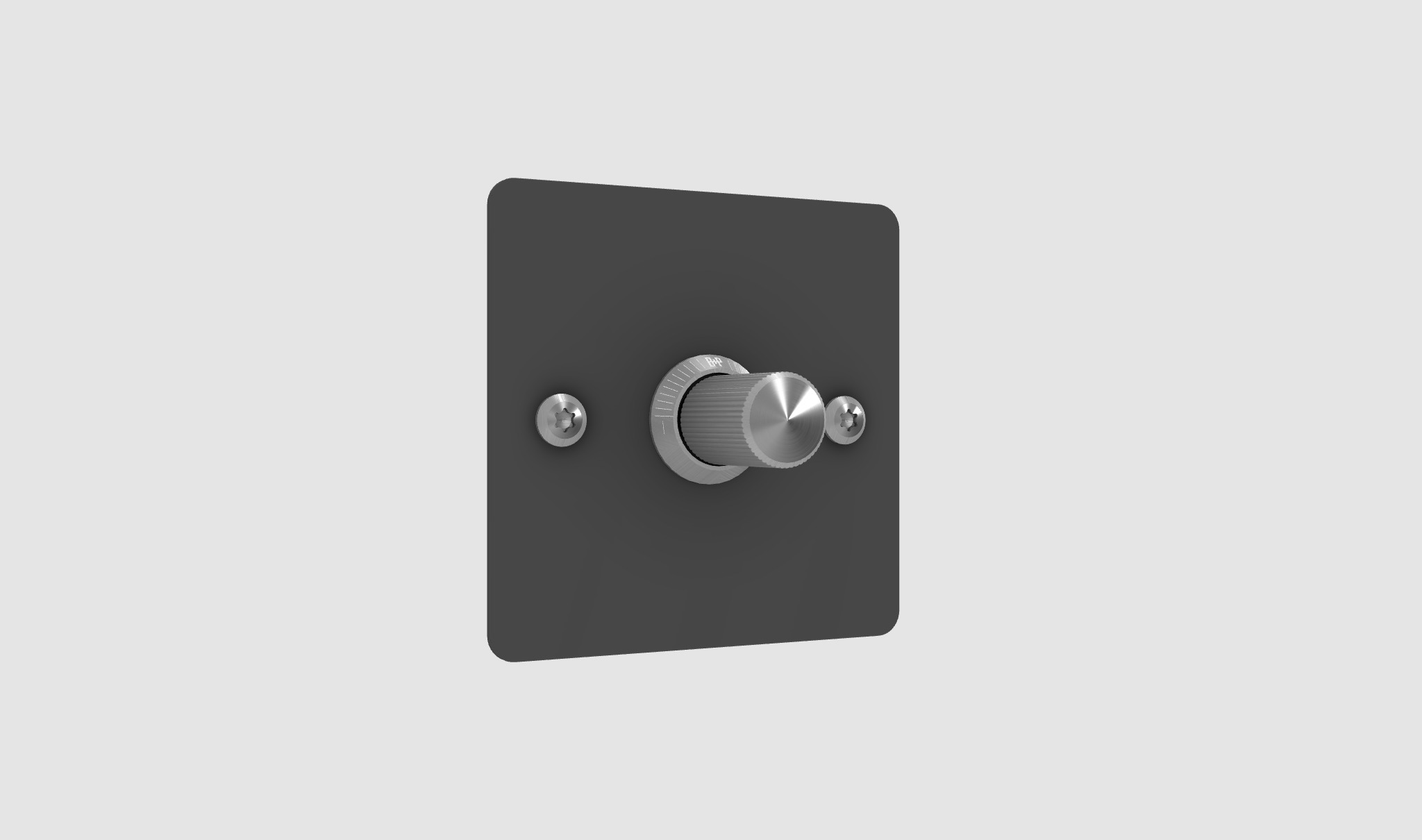

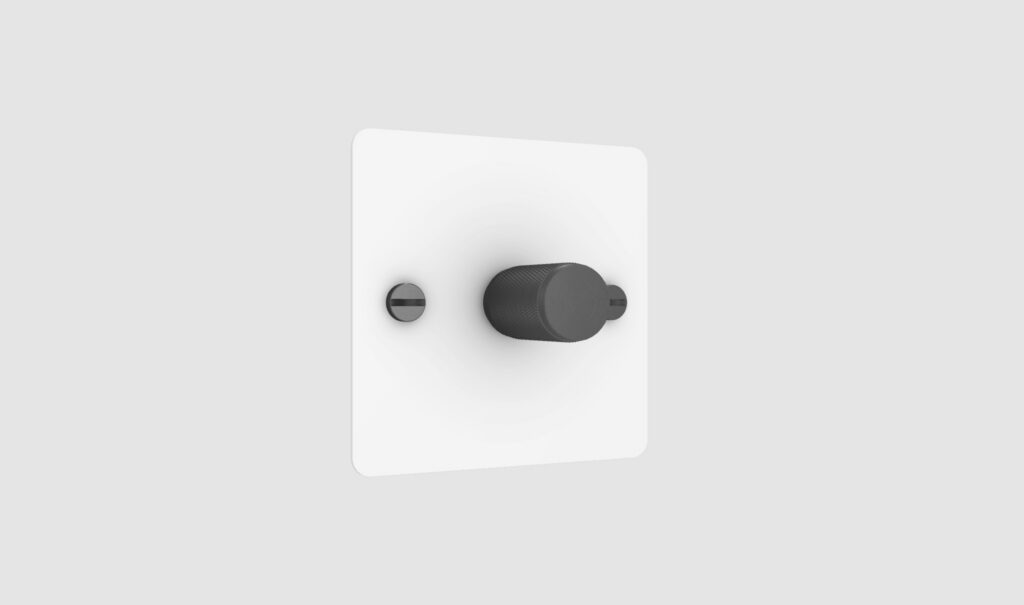

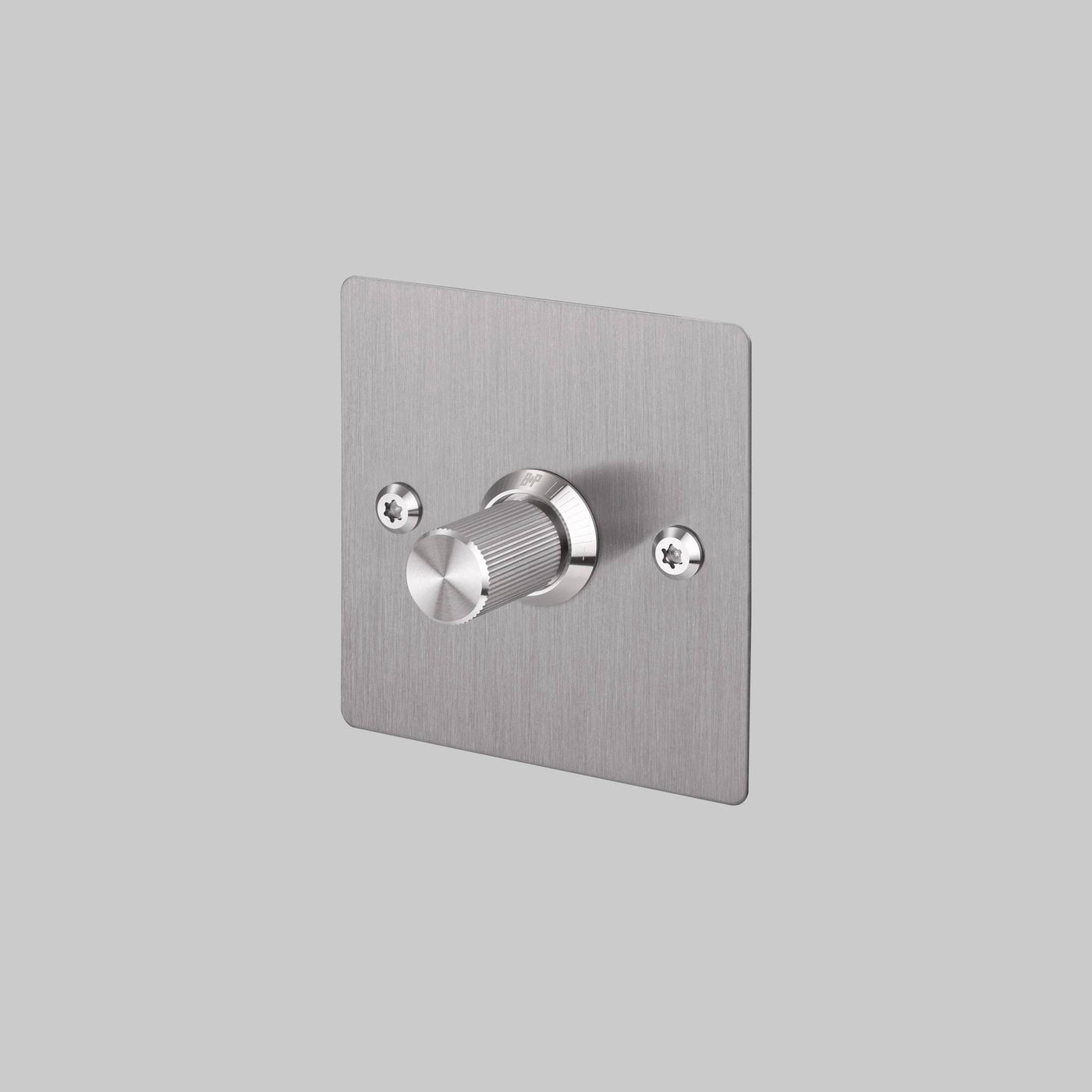

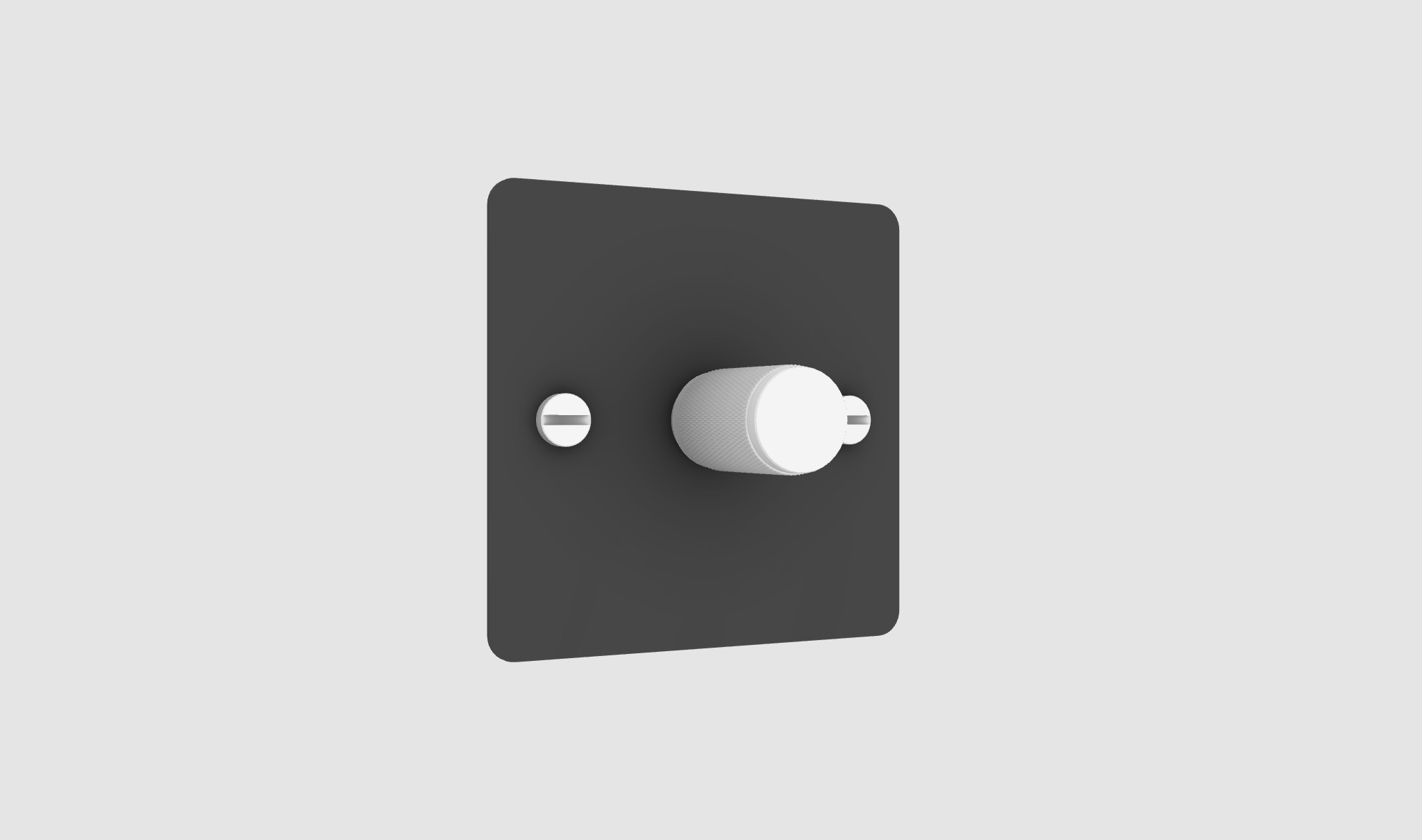

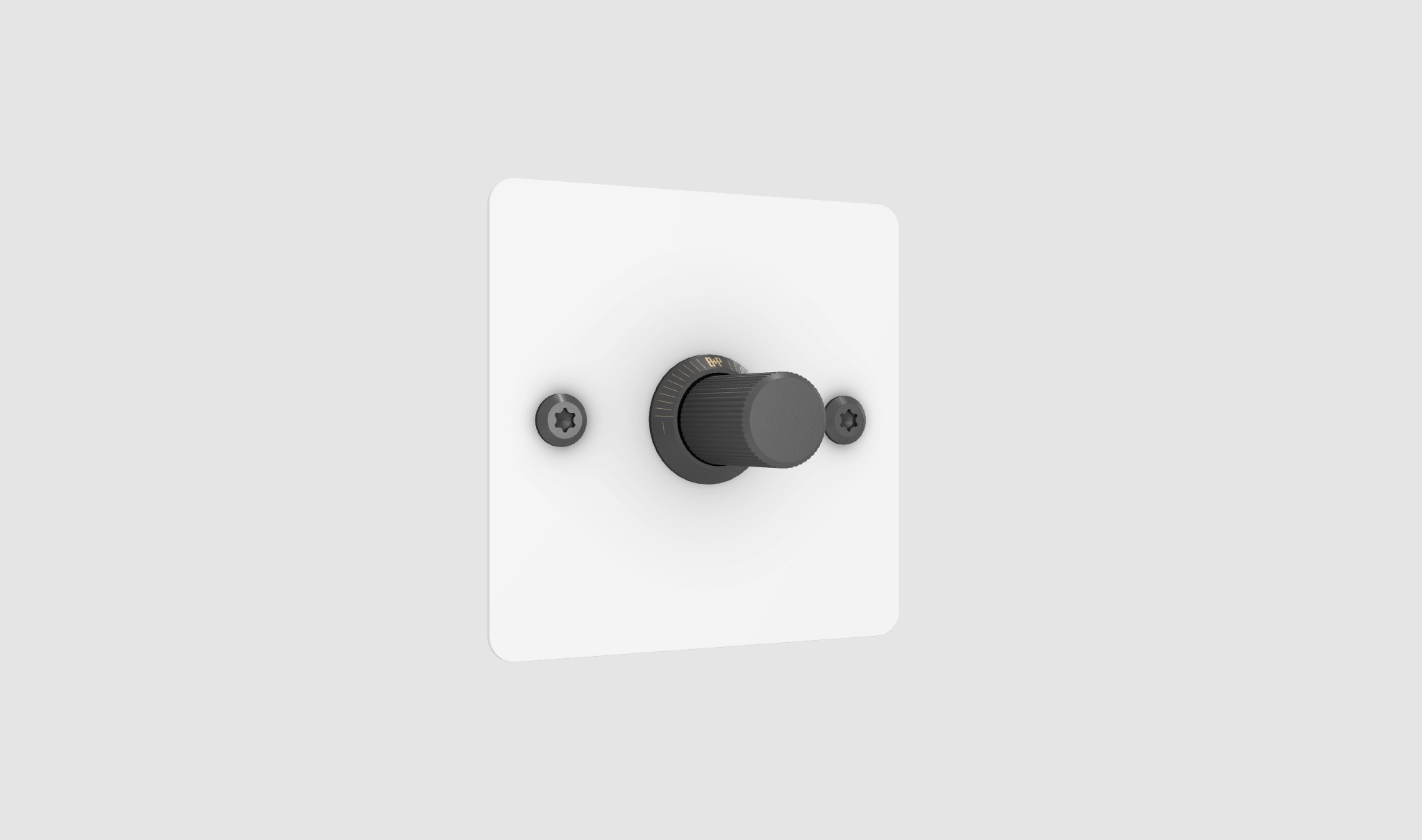

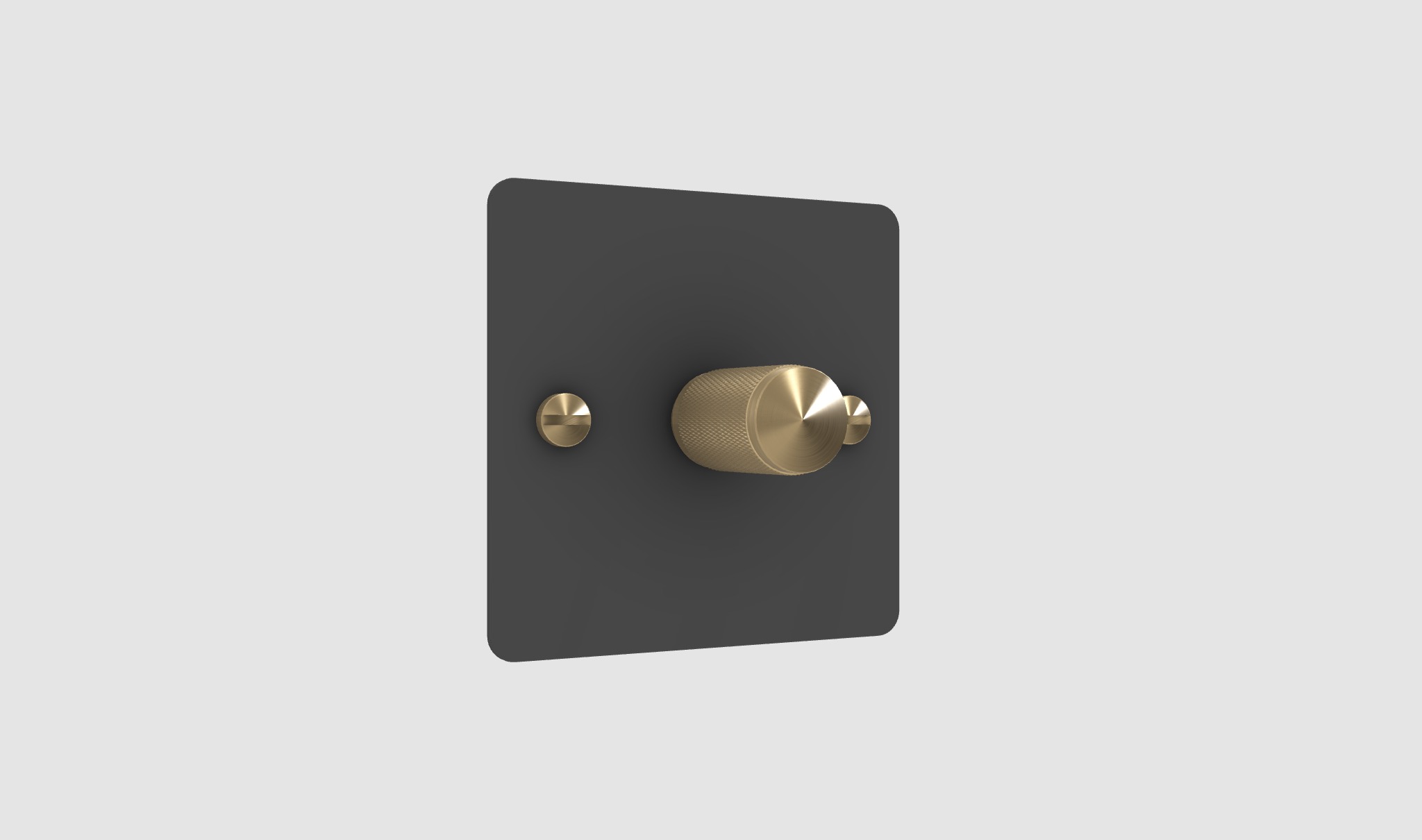

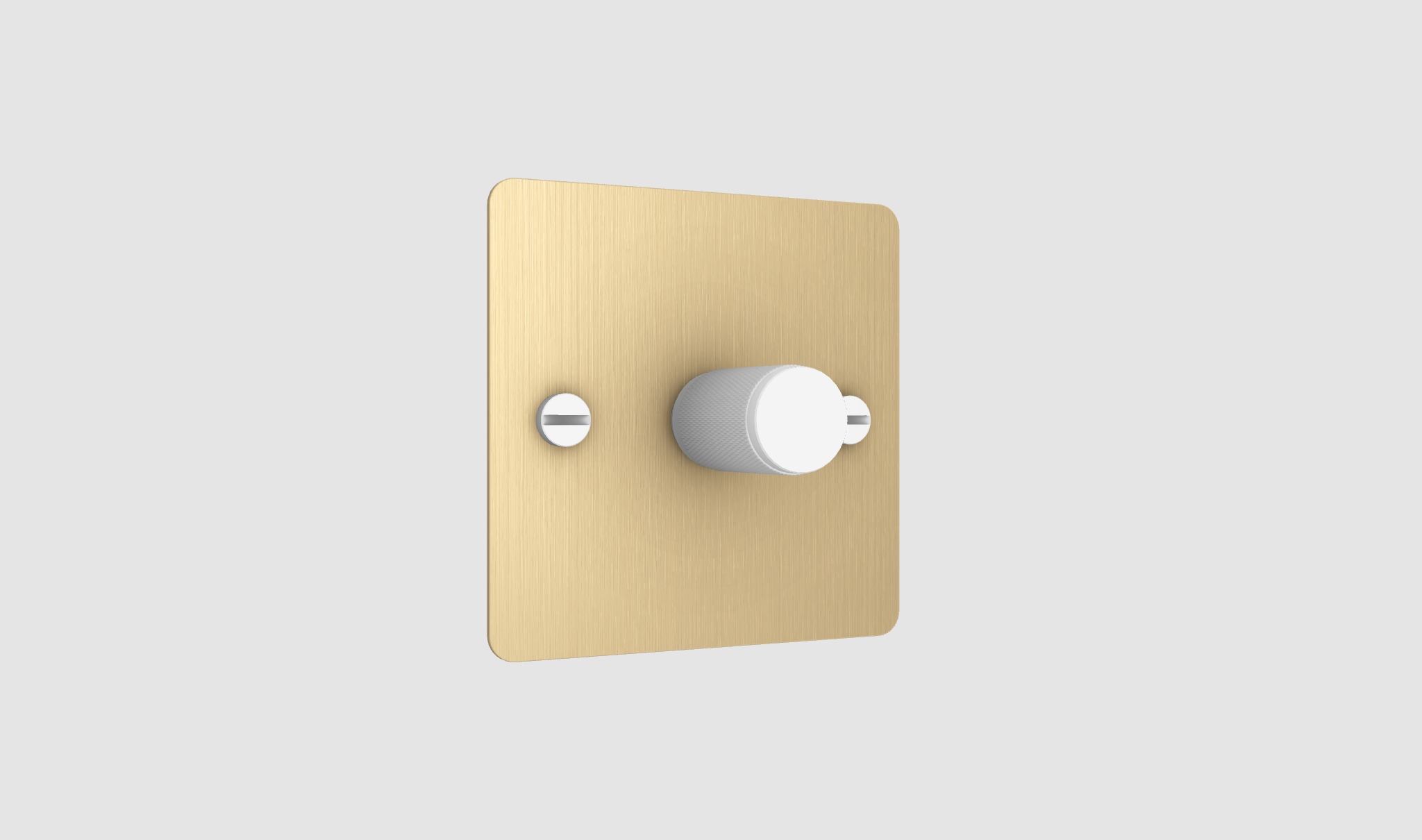

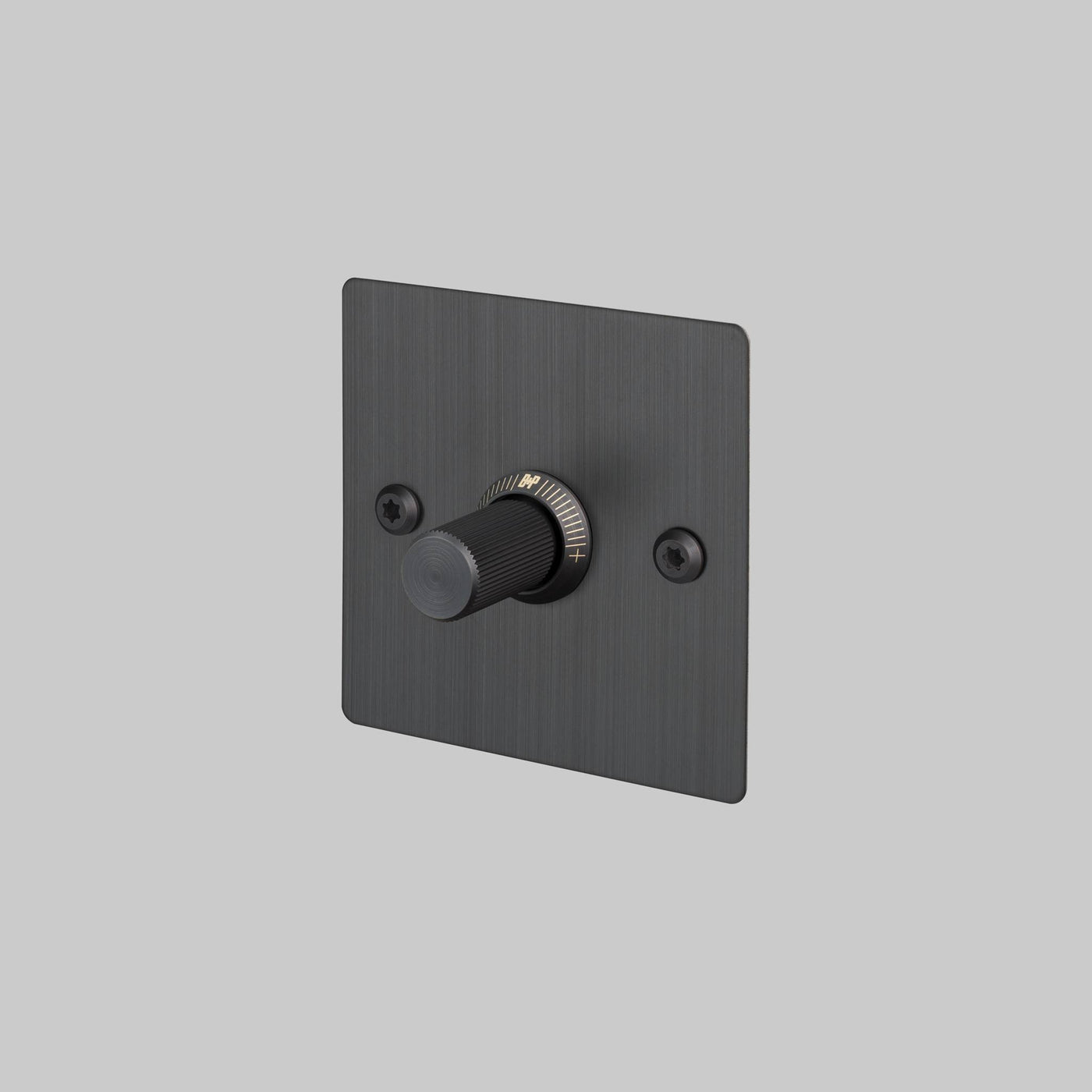

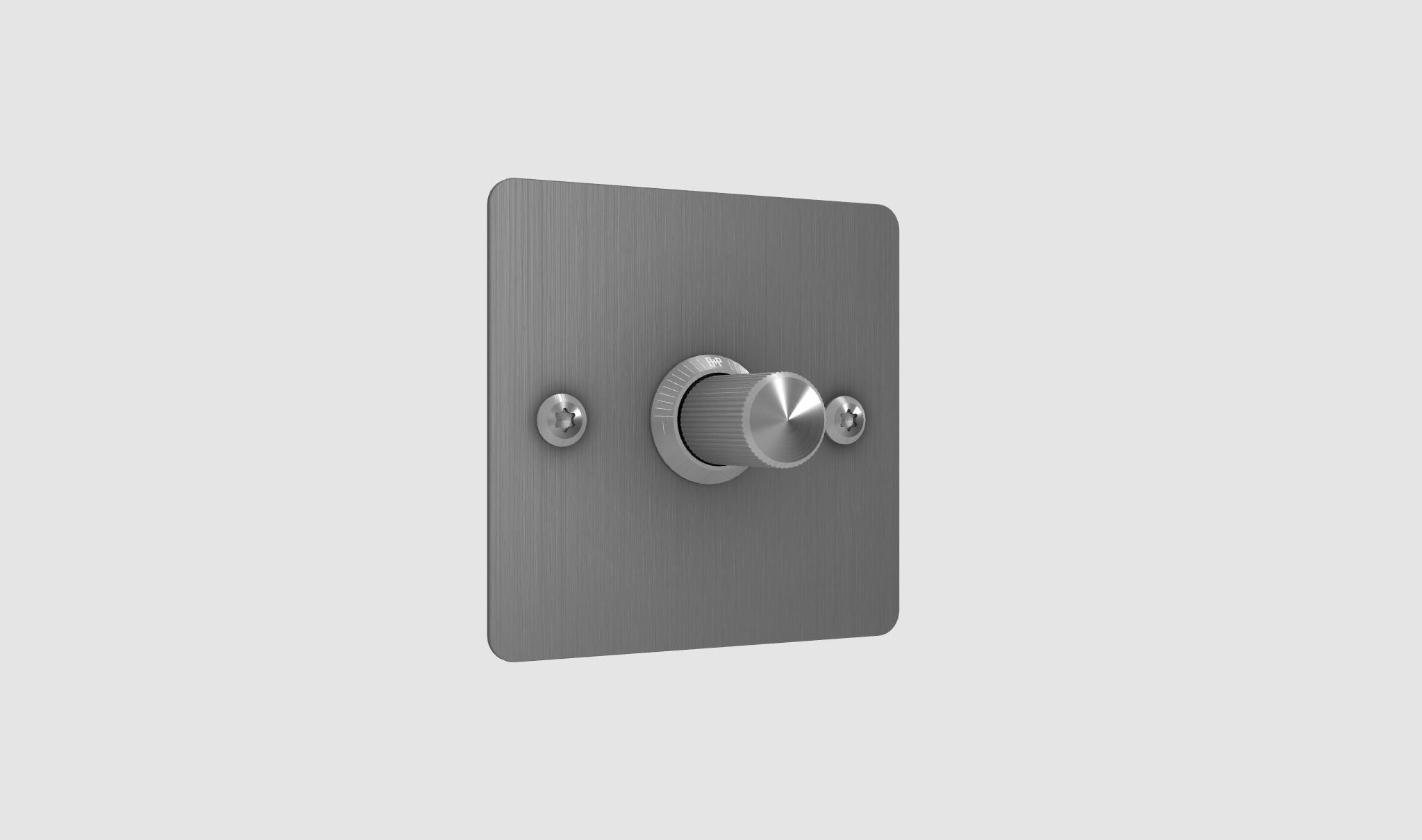

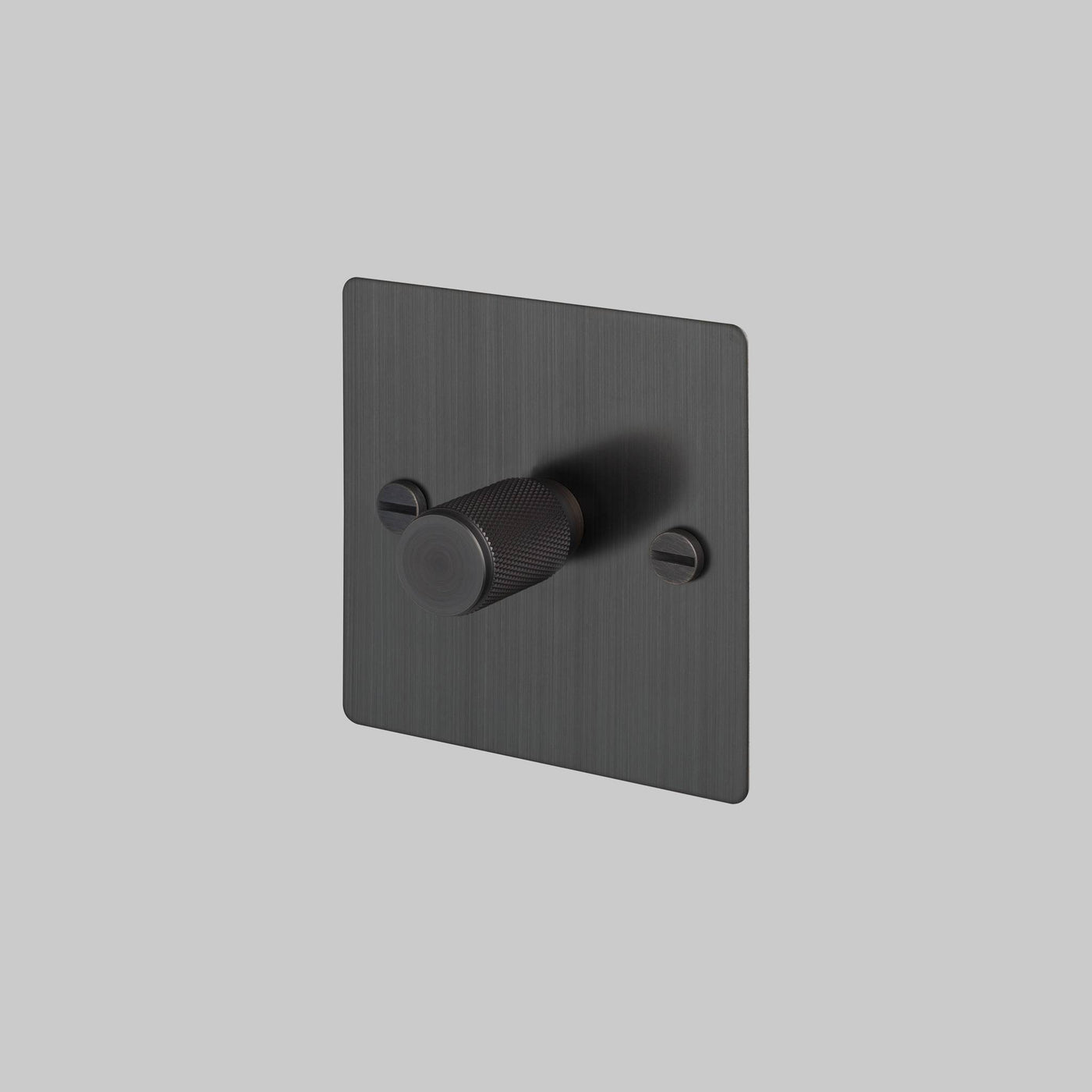

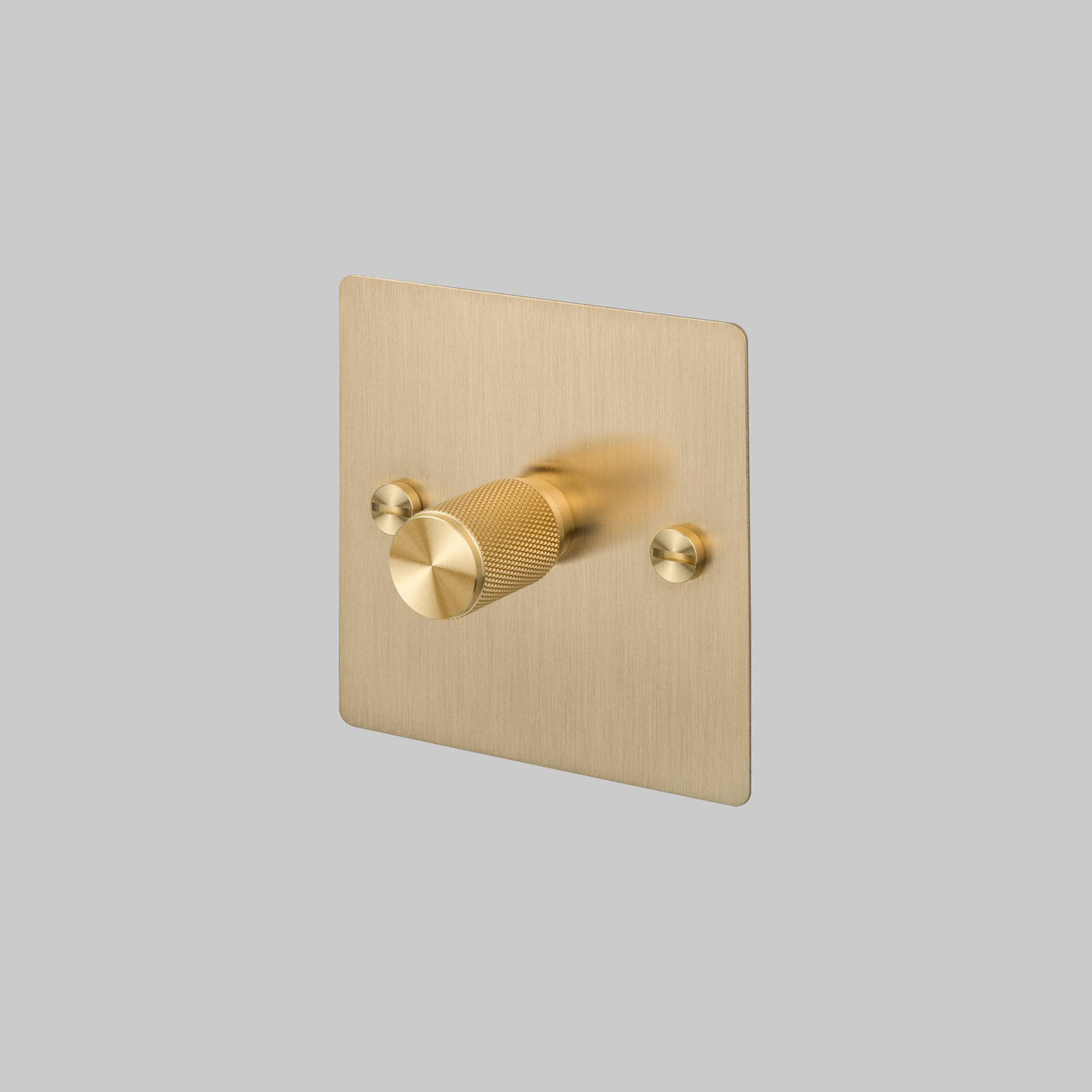

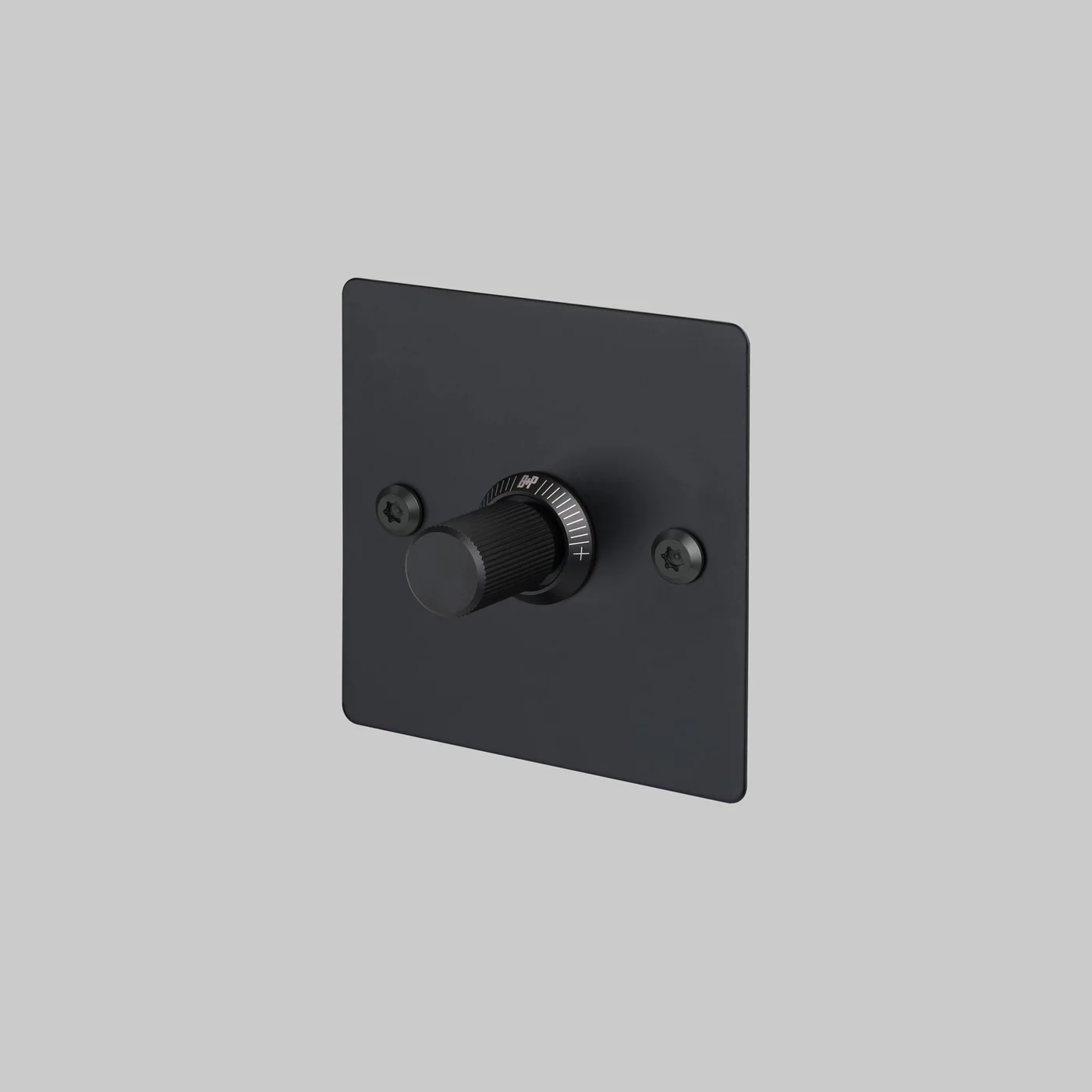

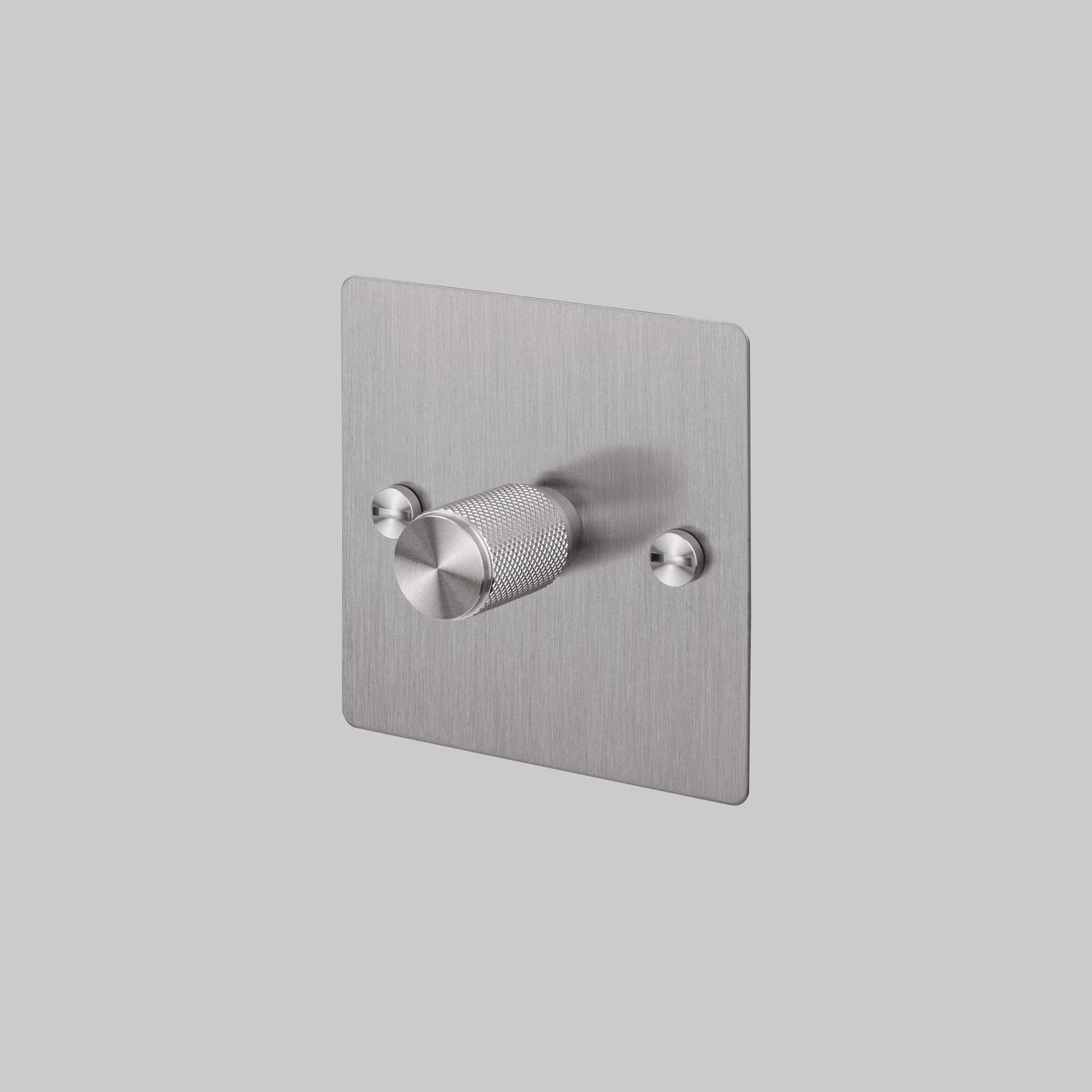

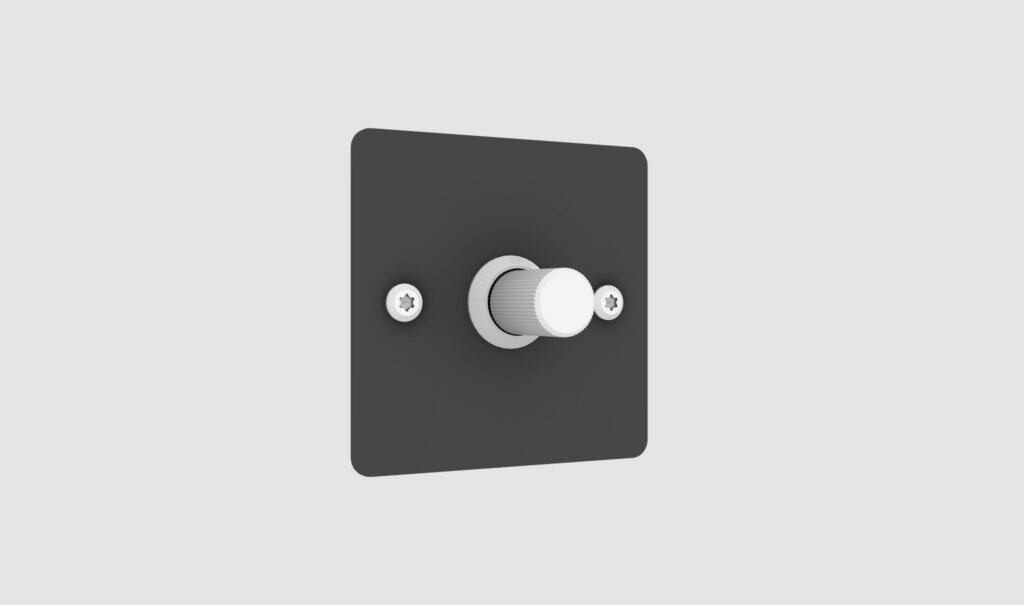

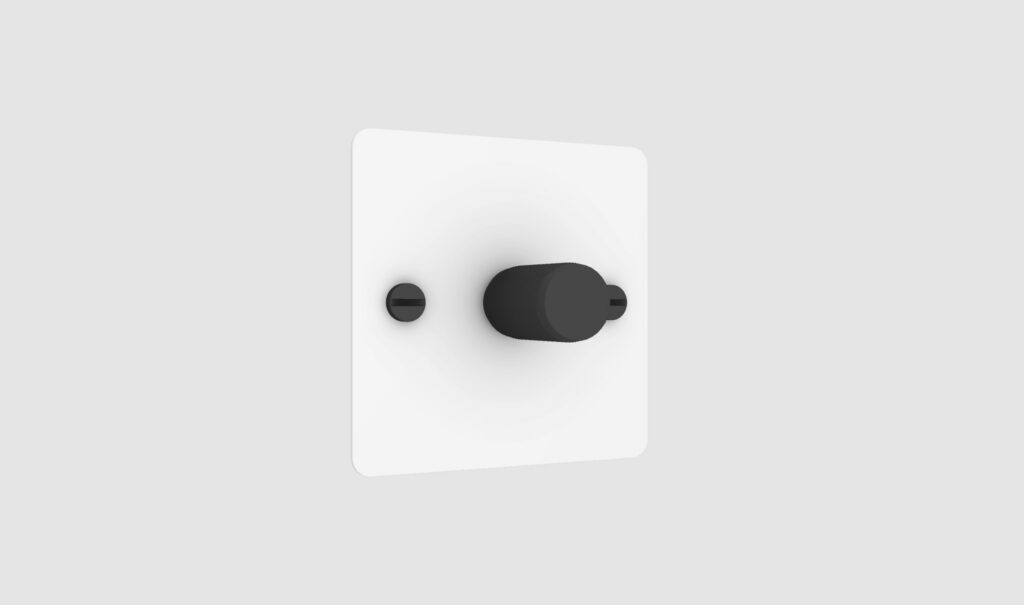

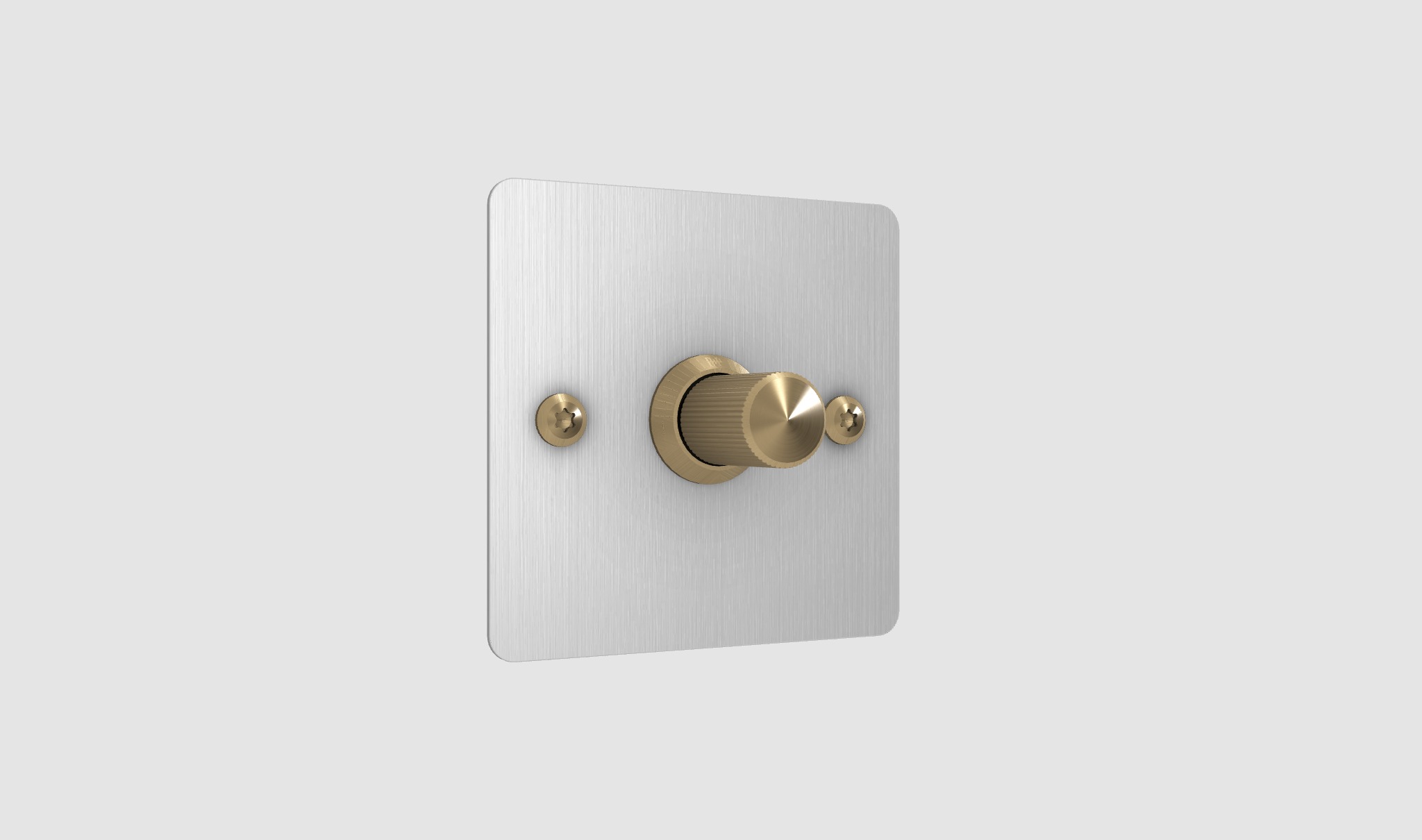

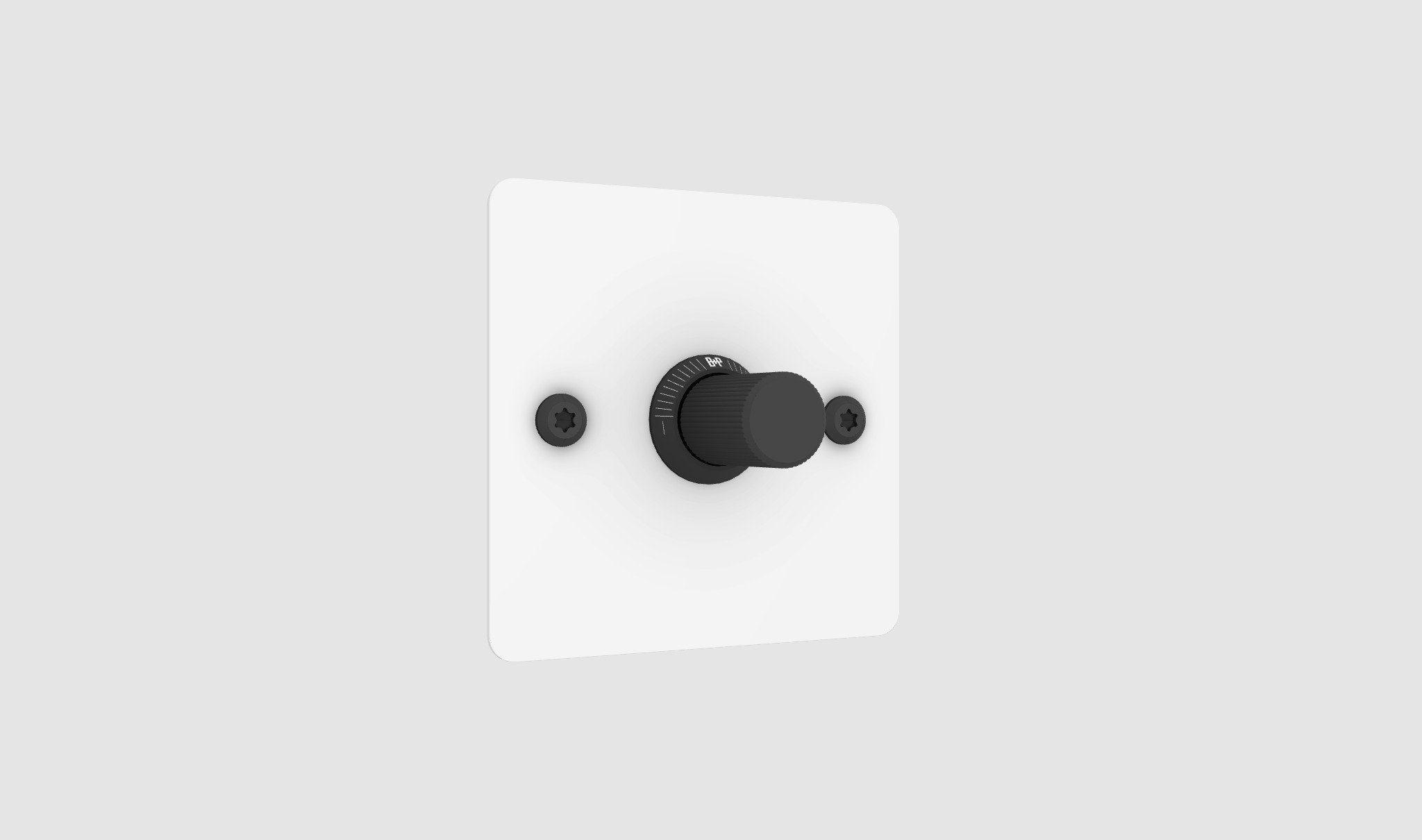

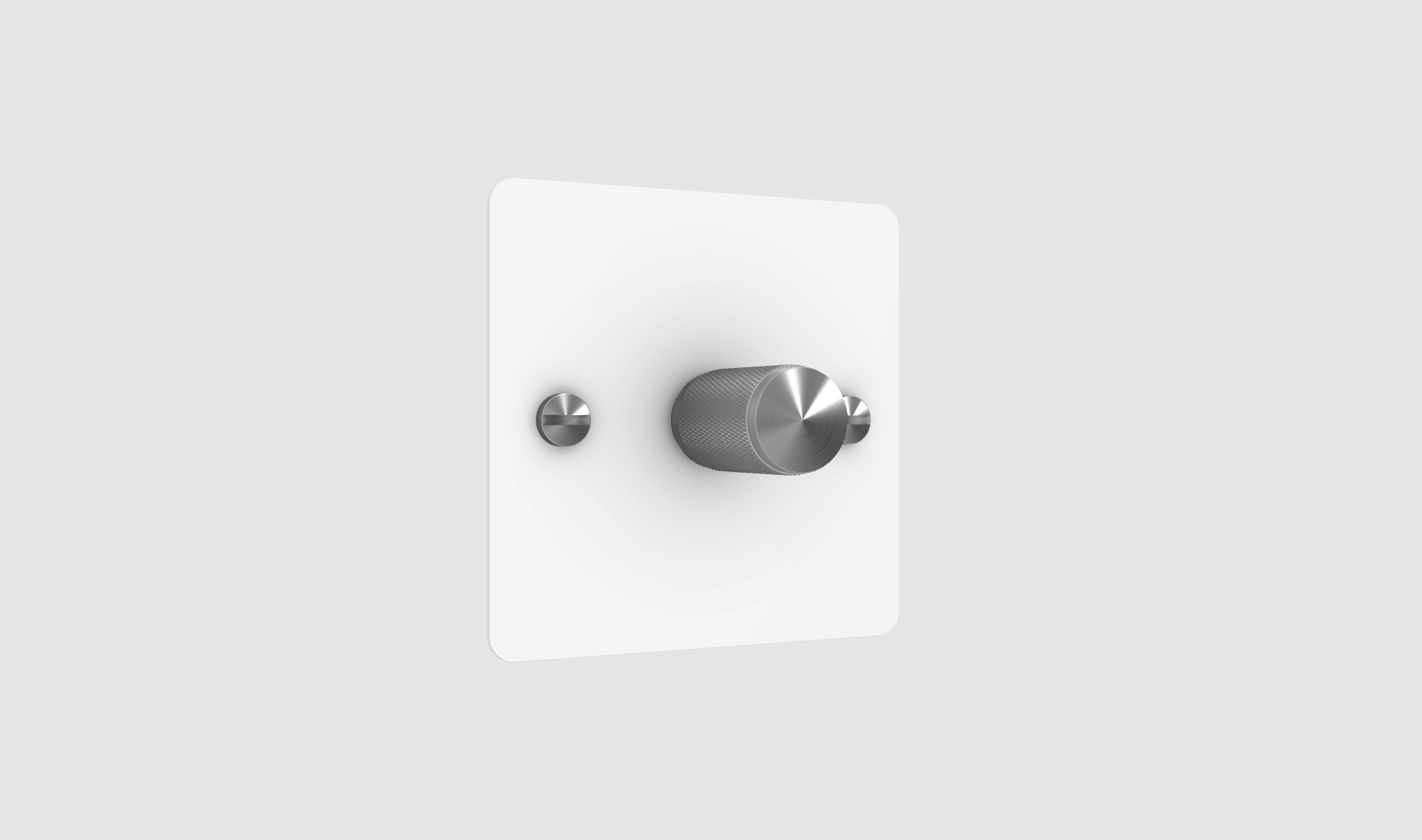

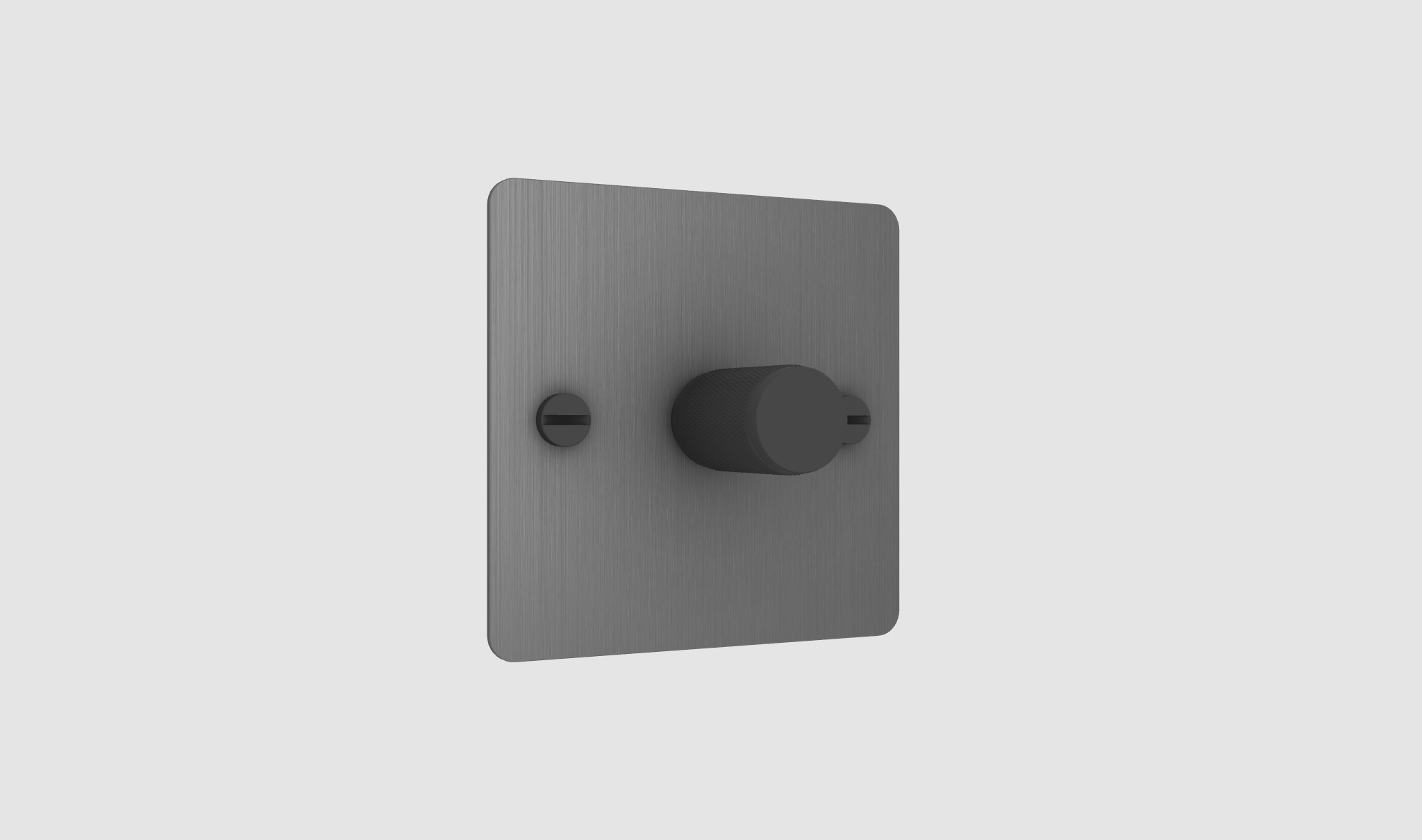

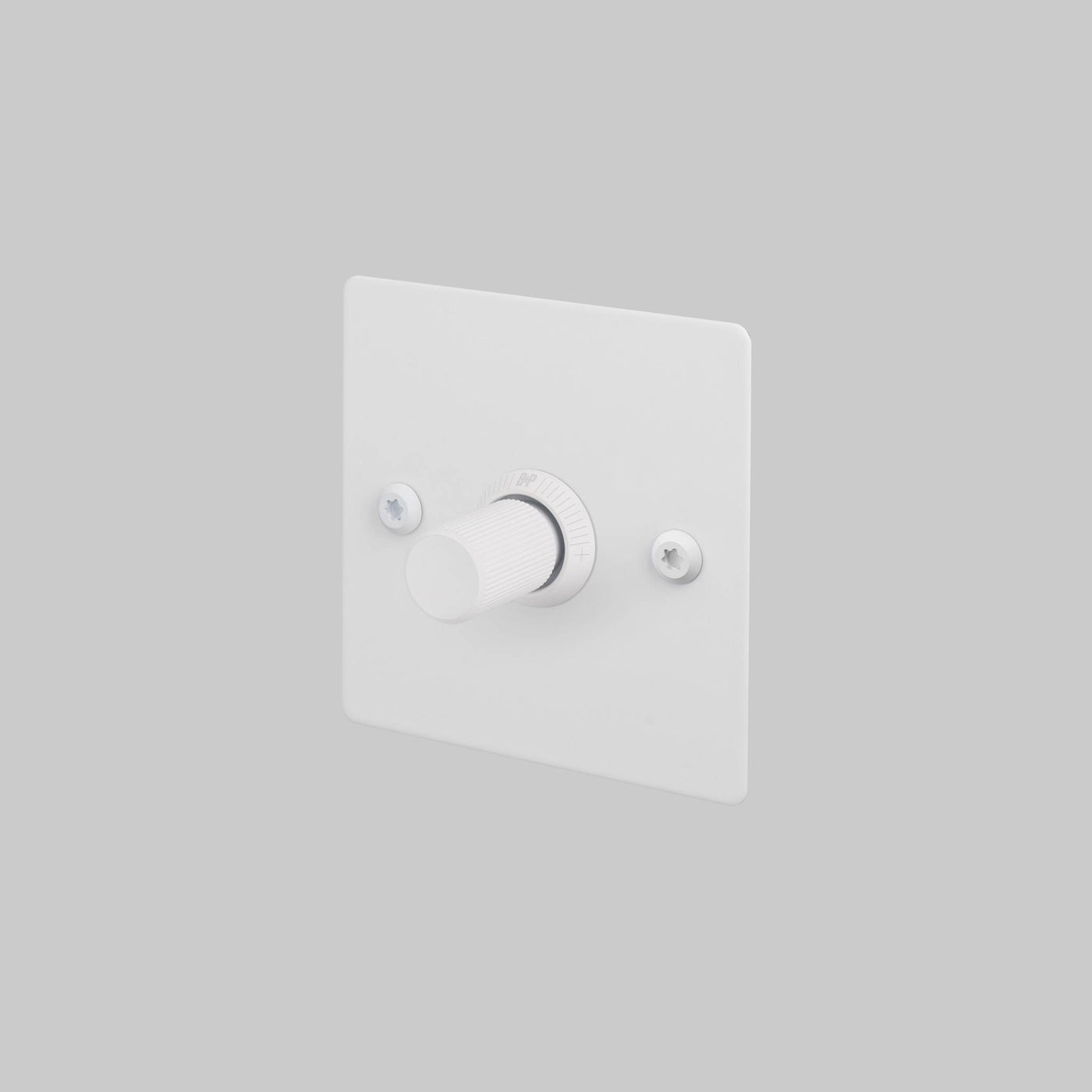

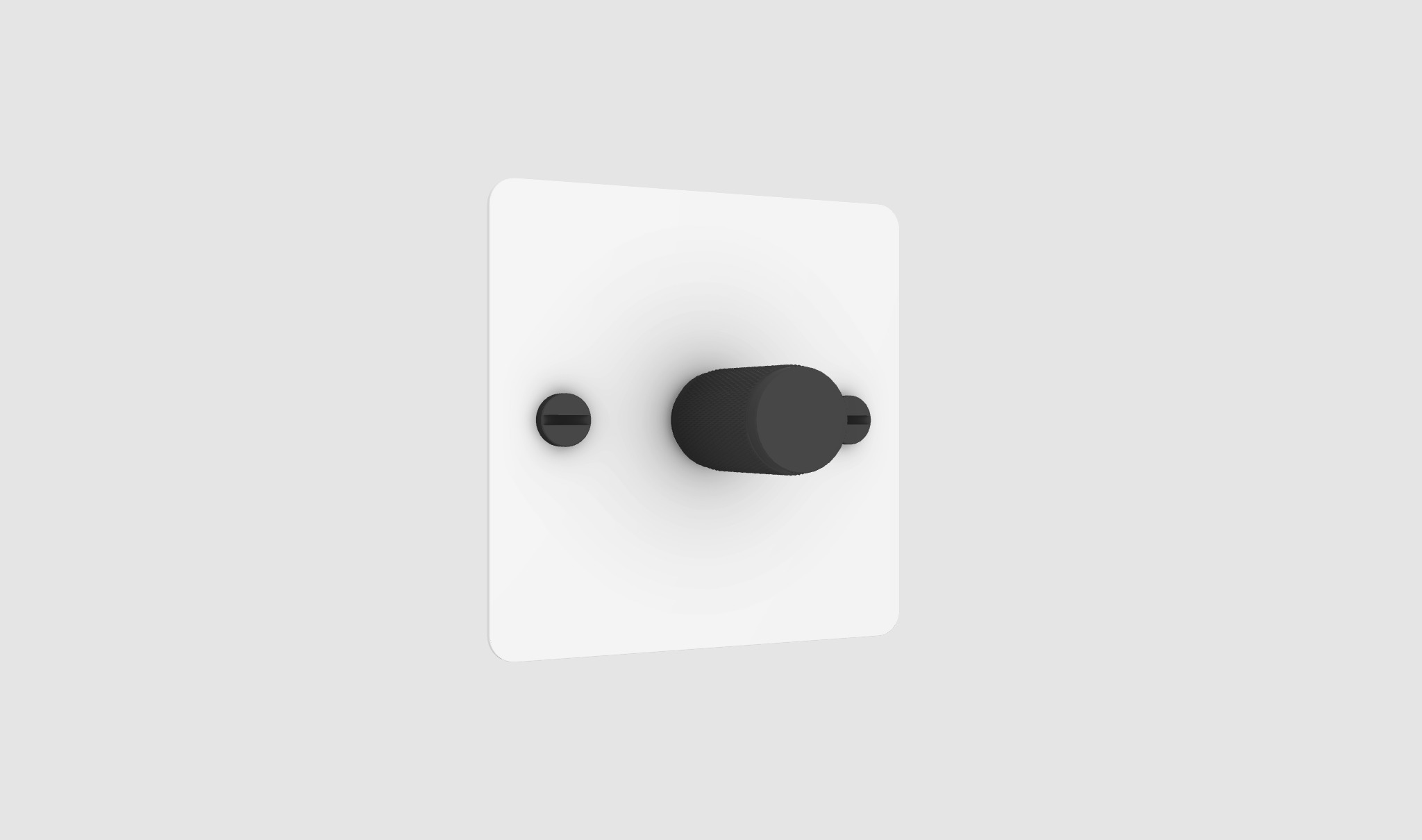

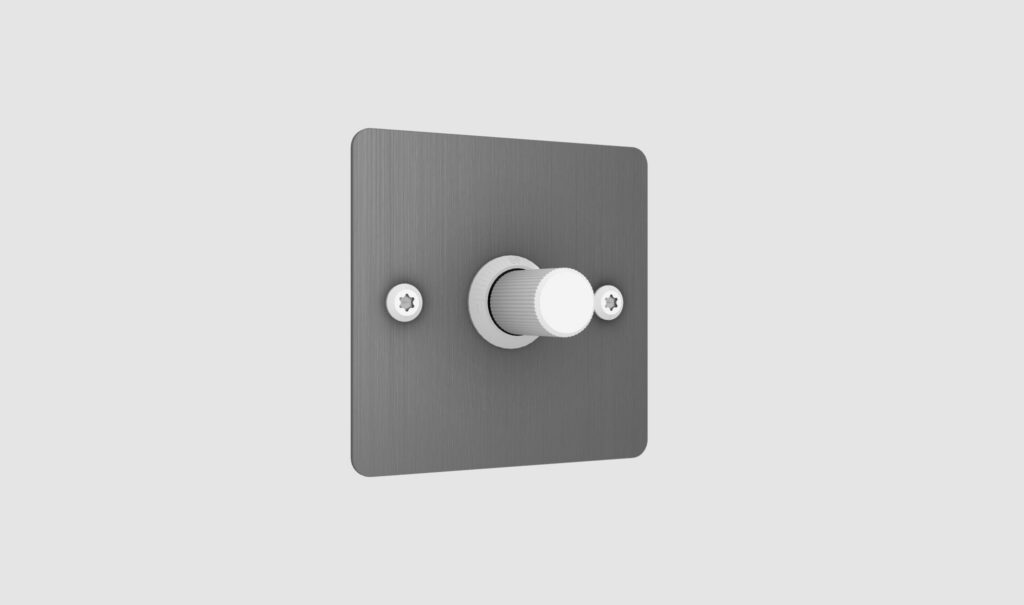

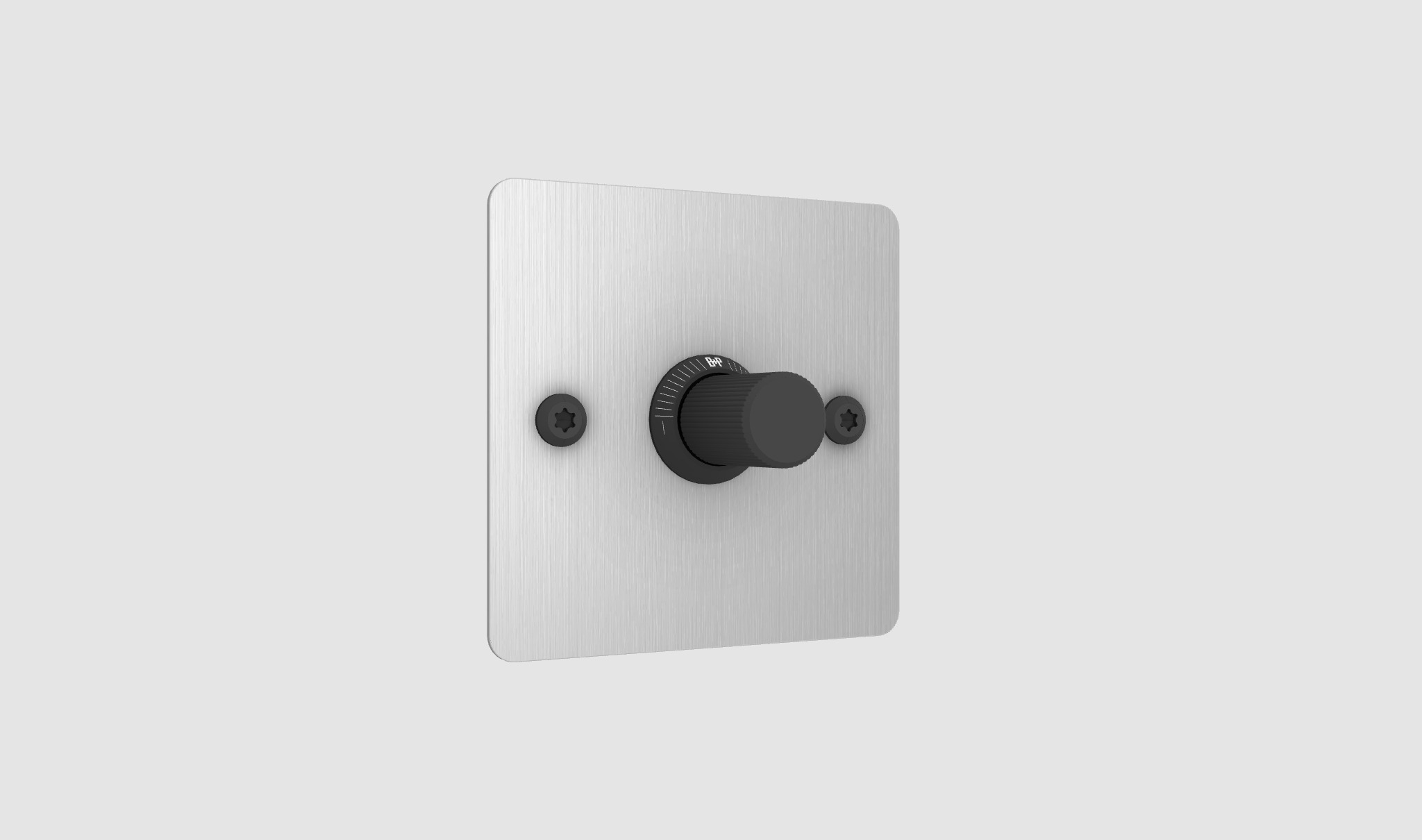

1G Dimmer

Solid metal switch plate with 1x dimmer module.

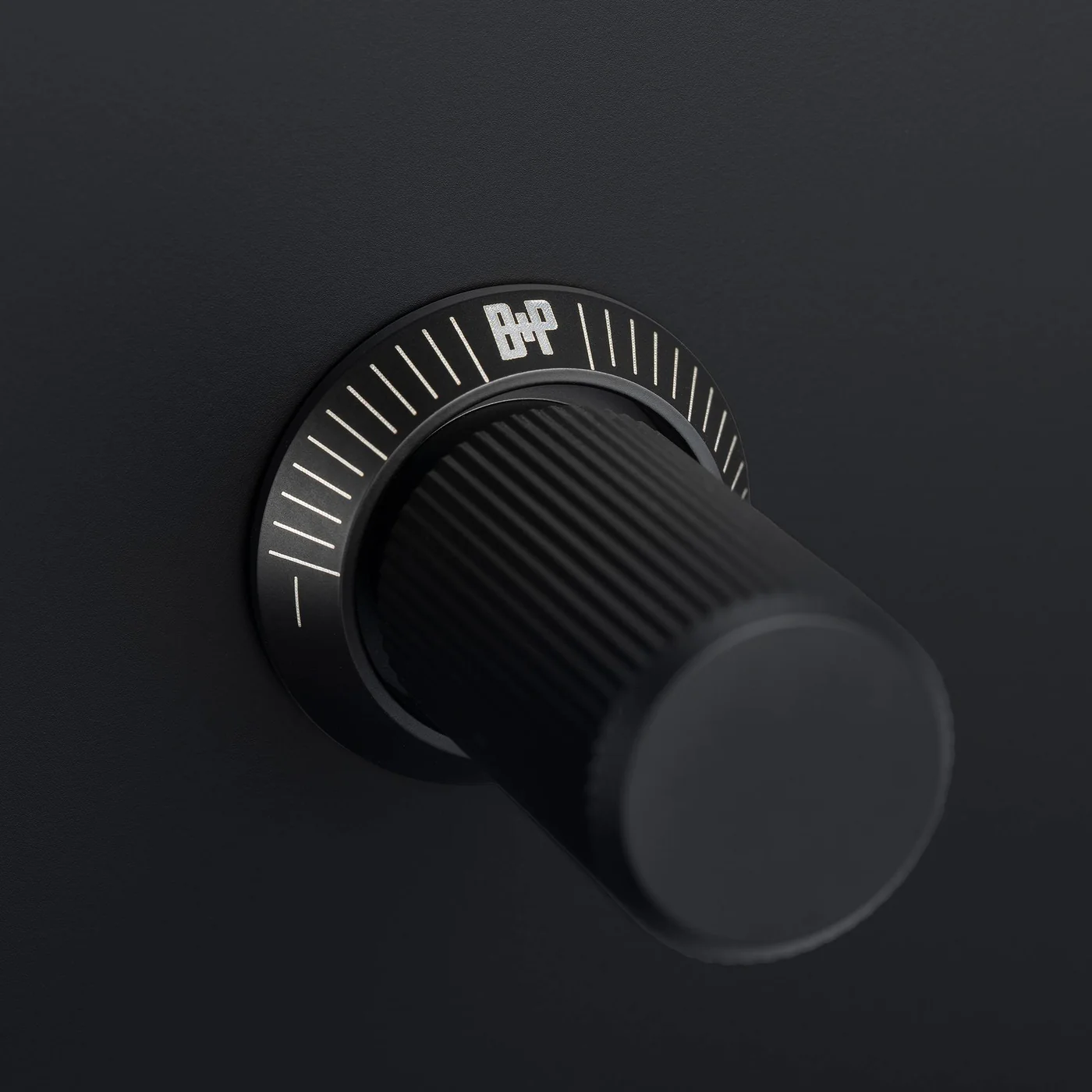

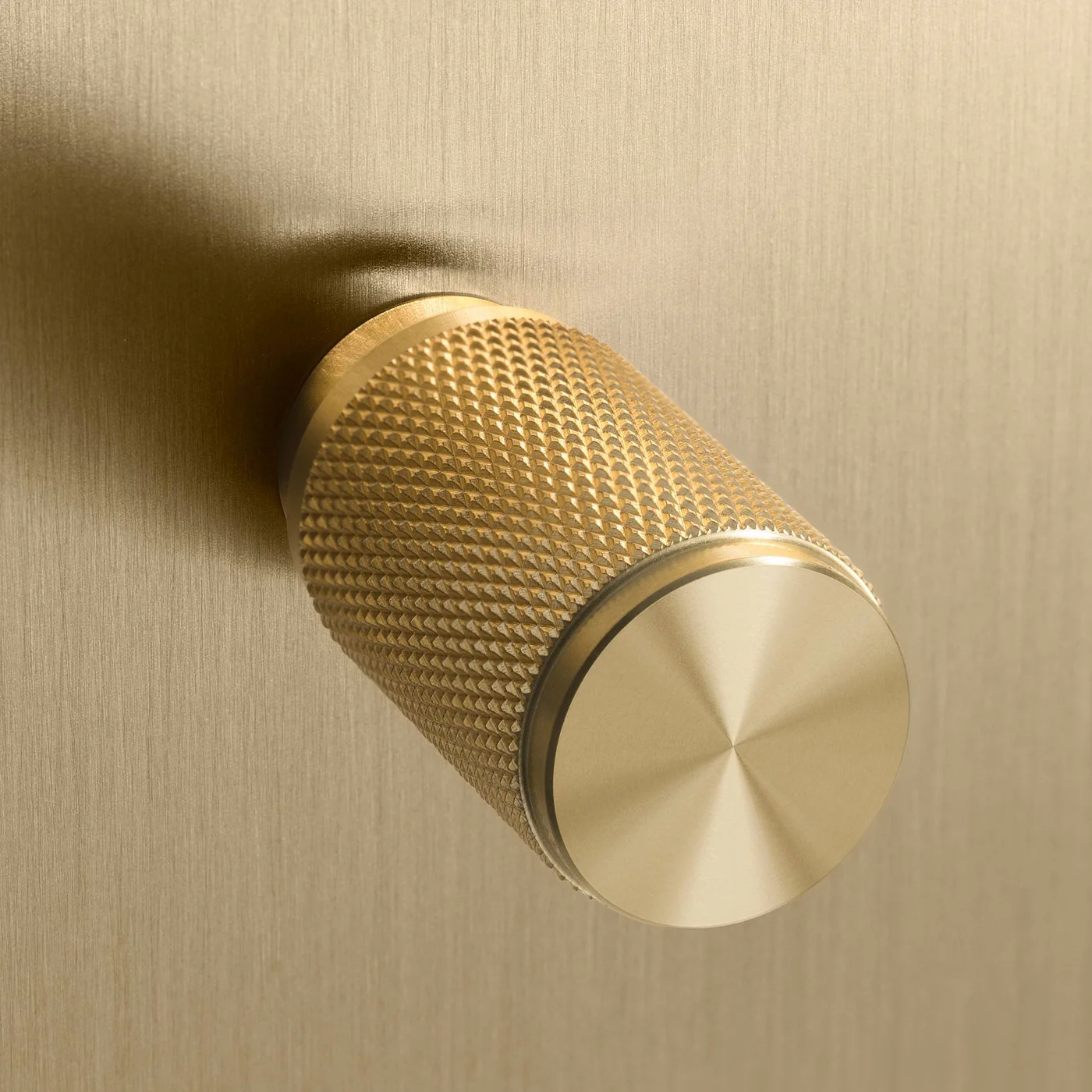

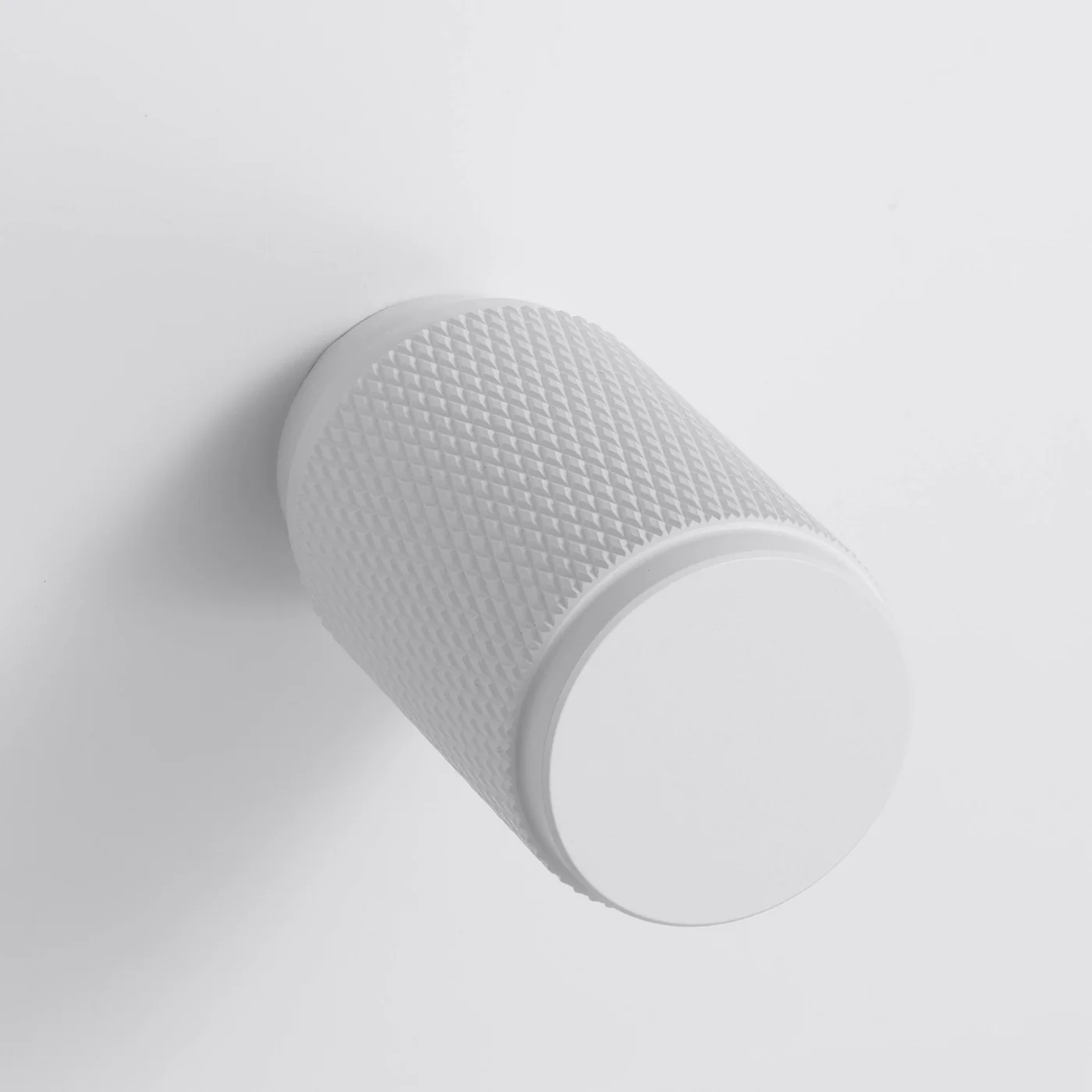

Style: Push On/Off Rotary Dimmer
Dimming Type: Trailing edge (native, default) and leading edge (simulated)
Input: 230-240 VAC 50Hz
Load: LED 5-120W / HAL/INC 60-400W
Intelligent soft-start
BS EN 60669-2-1
Certified for use in UK, Europe and EAEU:
UKCA / CE / EAC

For use with standard 2-way and 3-way wiring accessories. Maximum one
dimmer module per circuit.
Not compatible with retractive switches and Buster + Punch multipoint
dimmers.
Not compatible with non-dimmable lamps & fixtures, compact fluorescent
lamps (CFLs) or electric motors (e.g. fans).
Not compatible with native TRIAC (leading edge) dimmable drivers.
Suitable for use with good quality ELV electronic drivers only. Certain
transformers & drivers may not behave according to their power rating
when used with a dimmer. In case of issues, change your driver(s), remove
one or more driver from the circuit.

The dimmer switch incorporates a soft-start feature, which may result in a
1–2 second delay before full illumination to reduce inrush current and
extend lamp life.

Note: rotary action is smooth and silent during operation.
Compatible with UK standard 1G electricity back boxes (60.3mm screw
spacing). See dimensions of chosen module for required backbox depth.
Box must be flush mounted.
