2G Dimmer

Categories: Dimmer, Switches & Sockets Buster + Punch

Description

1Product Info

2Product Inquiry

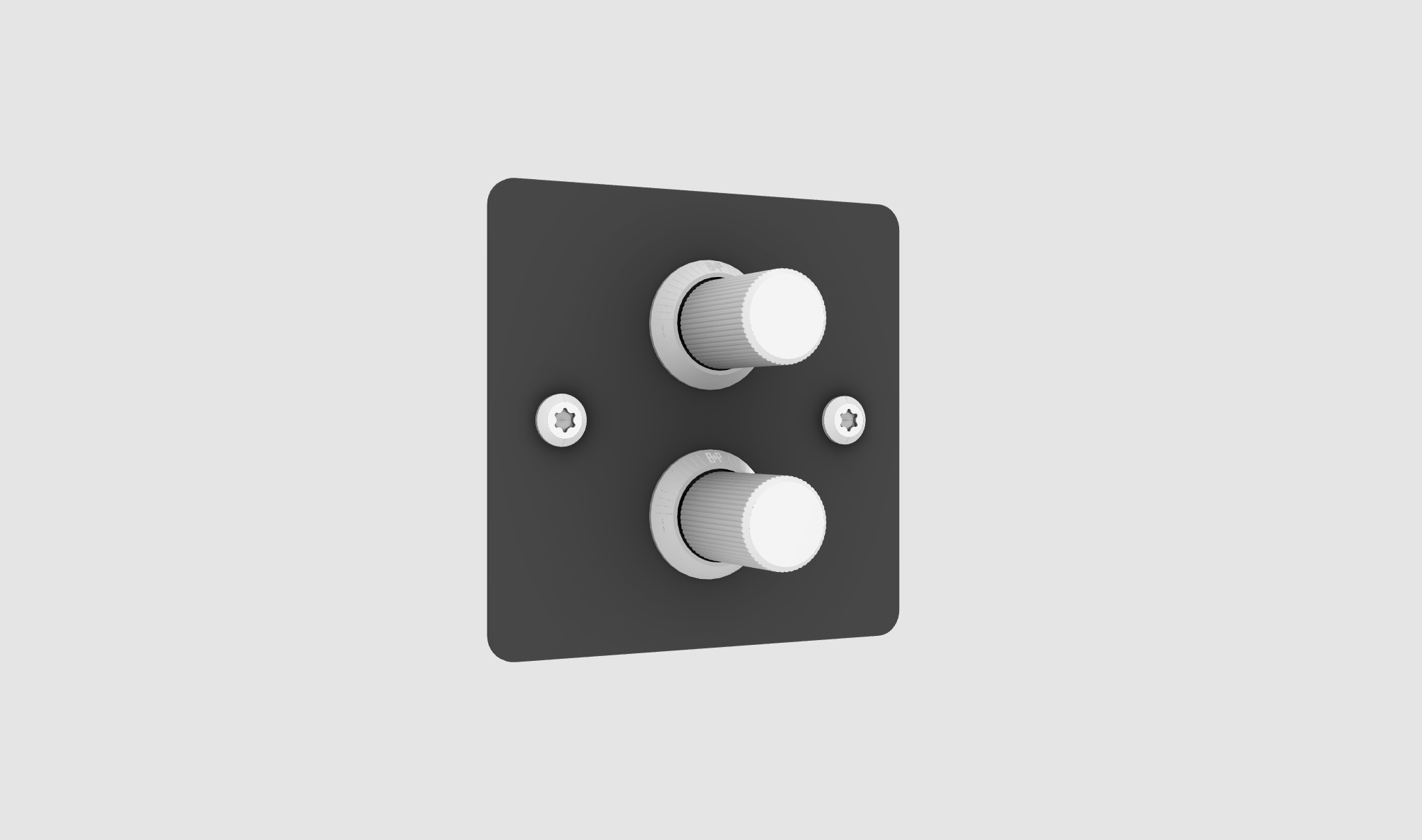

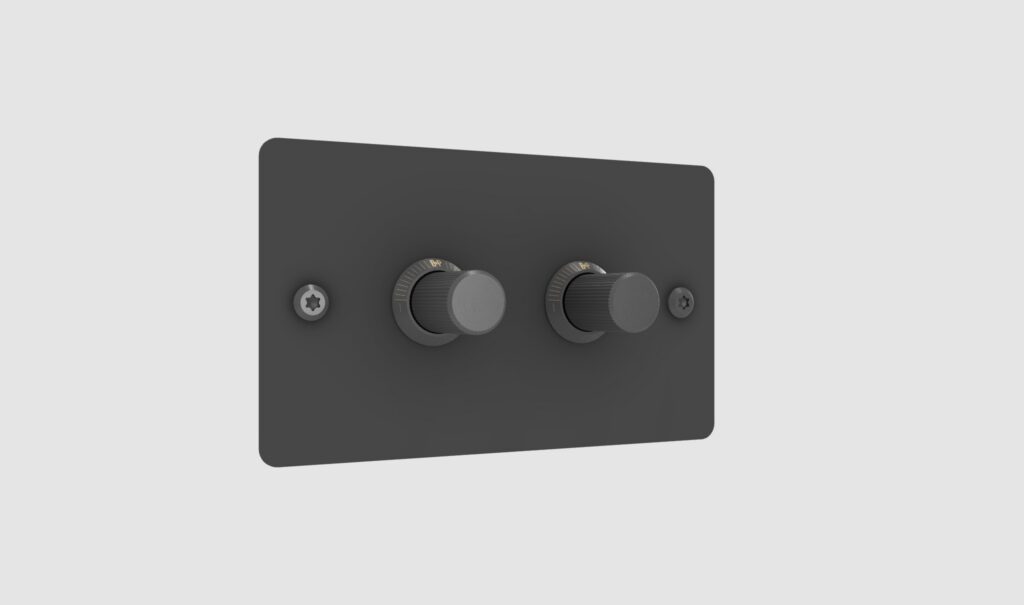

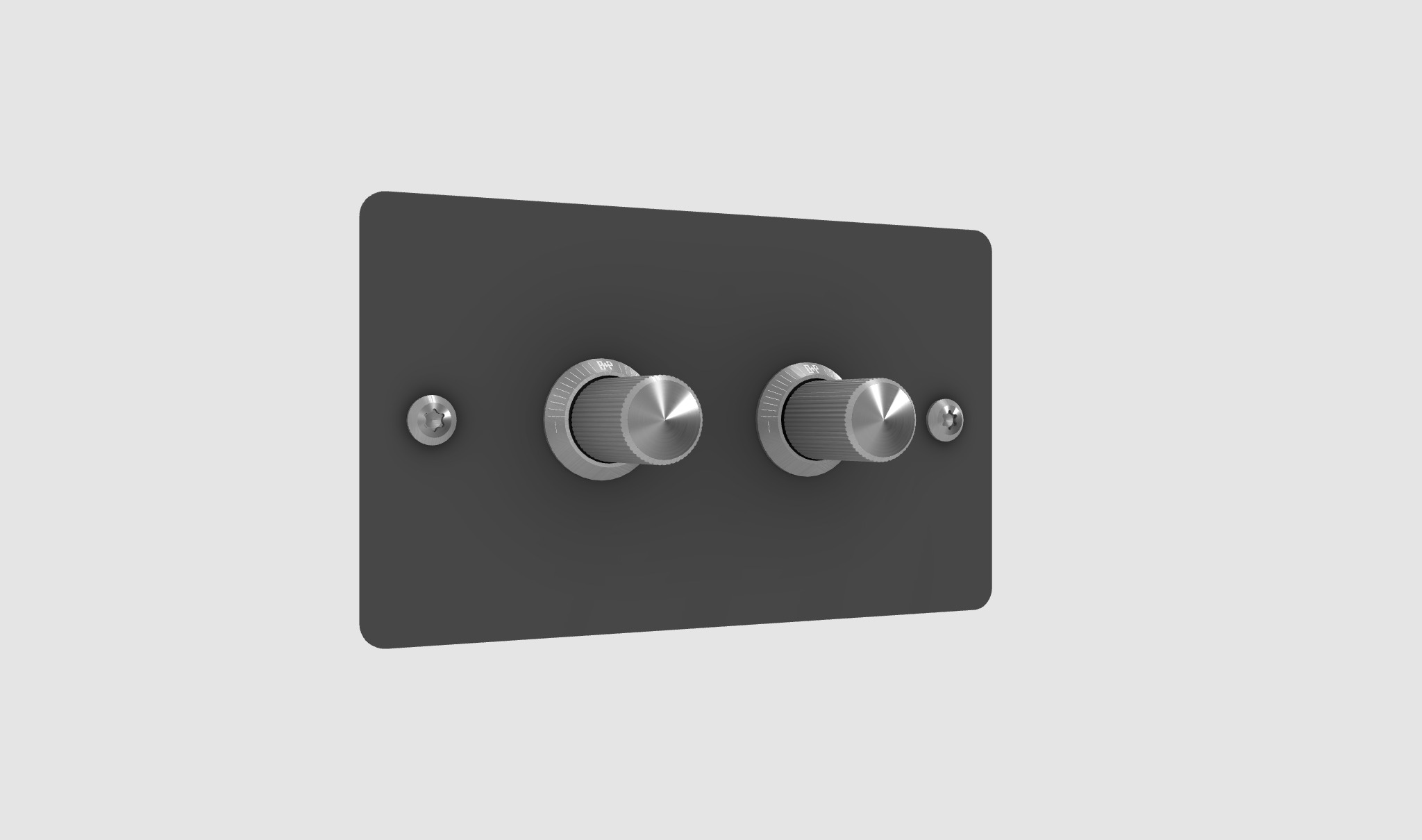

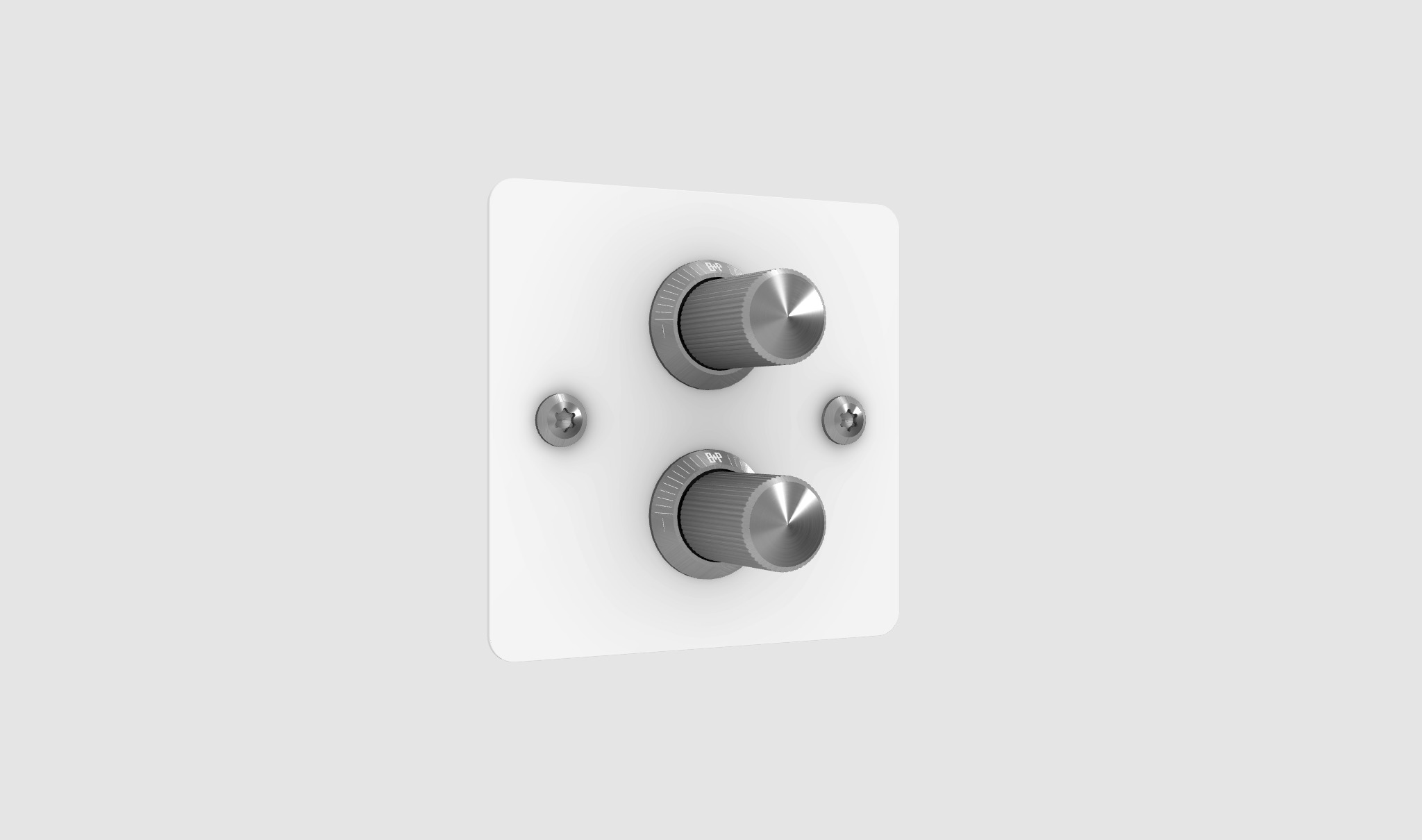

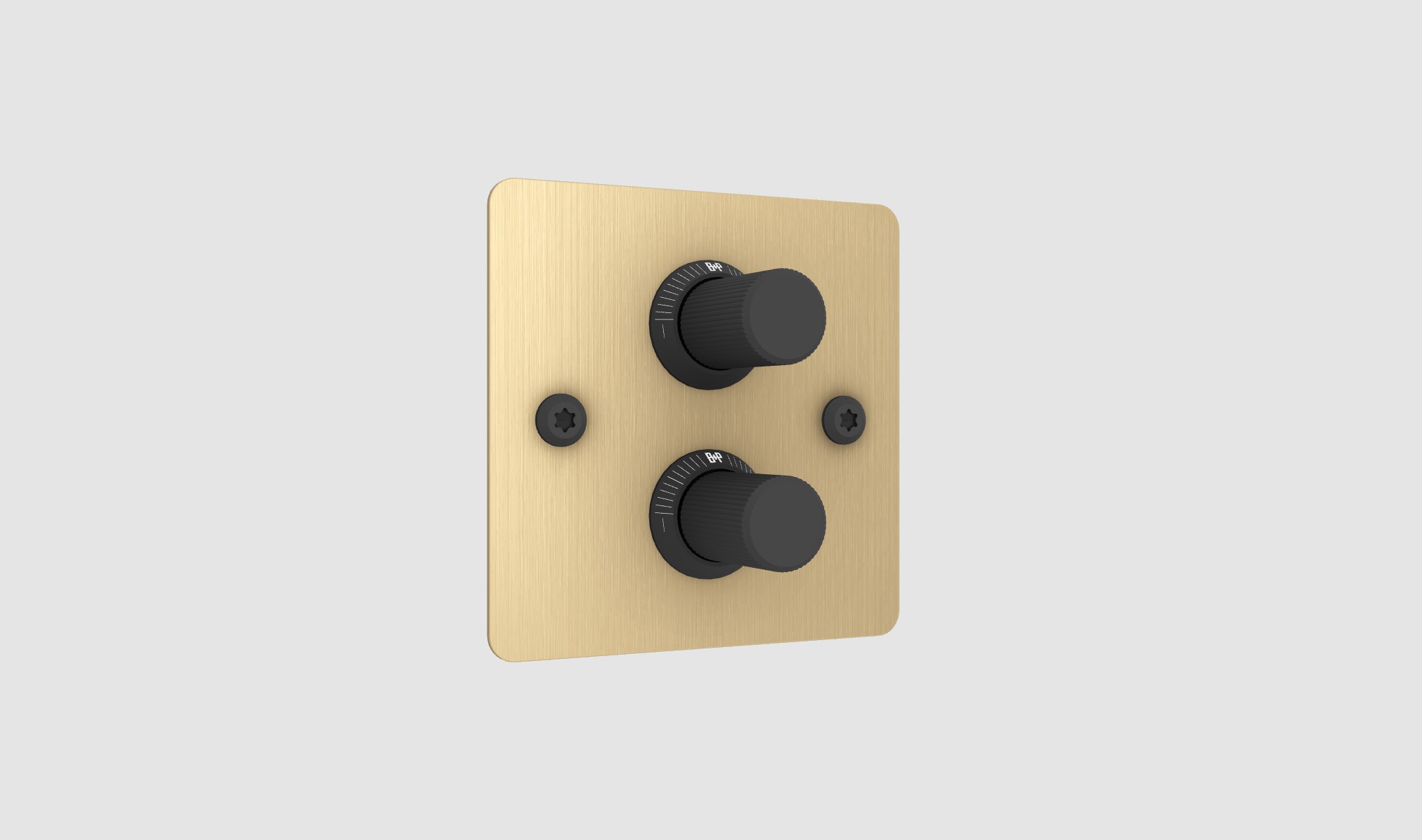

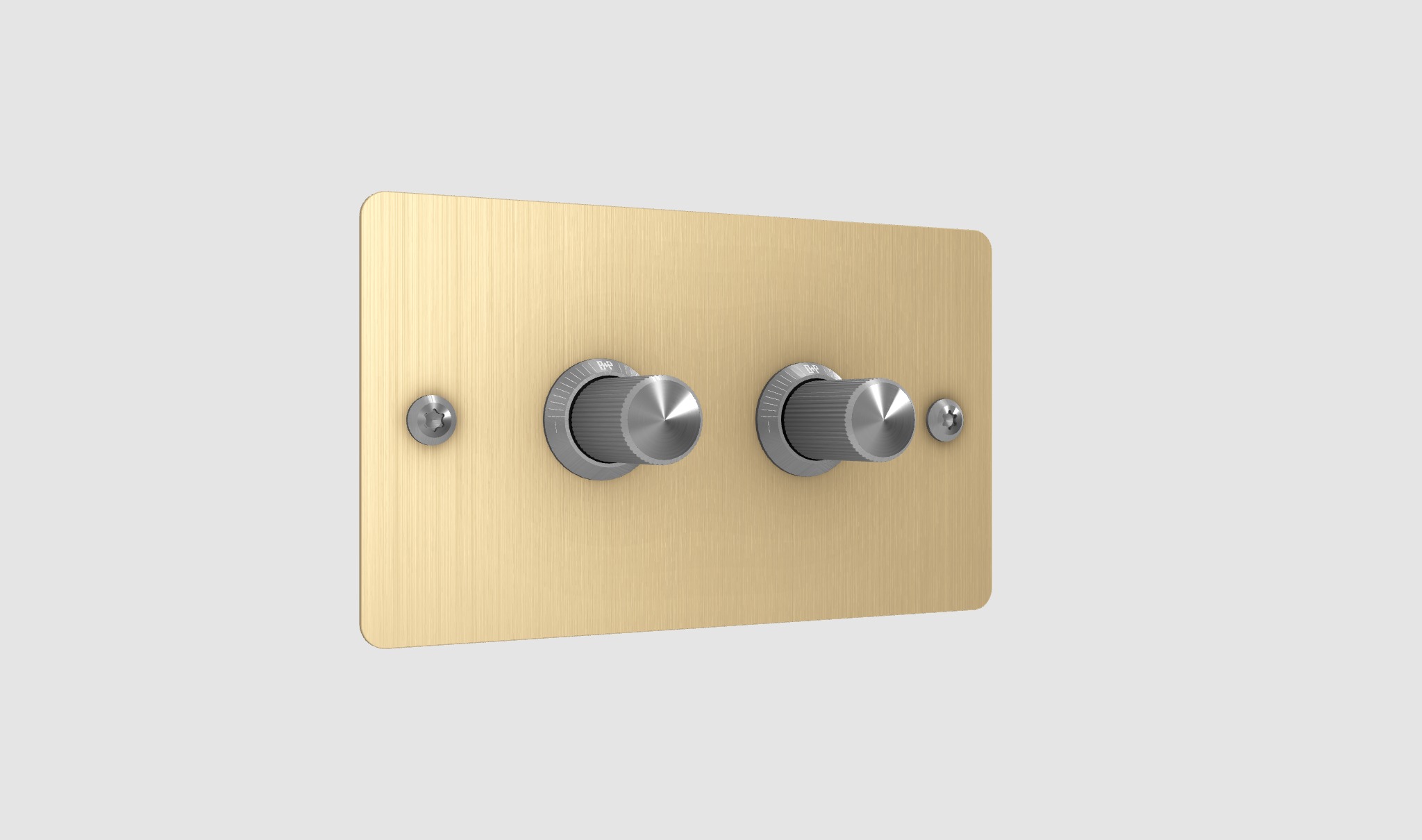

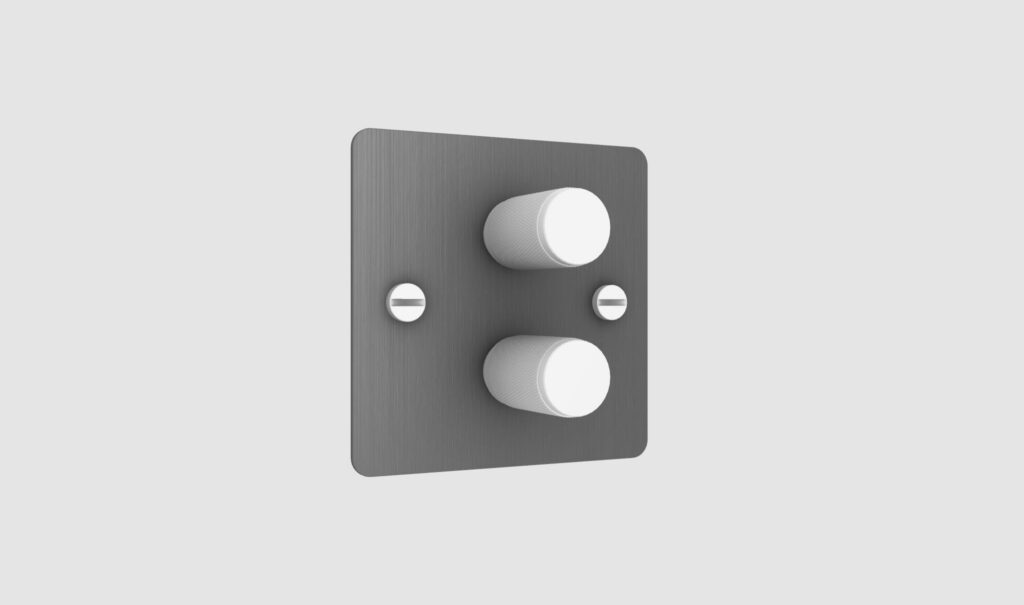

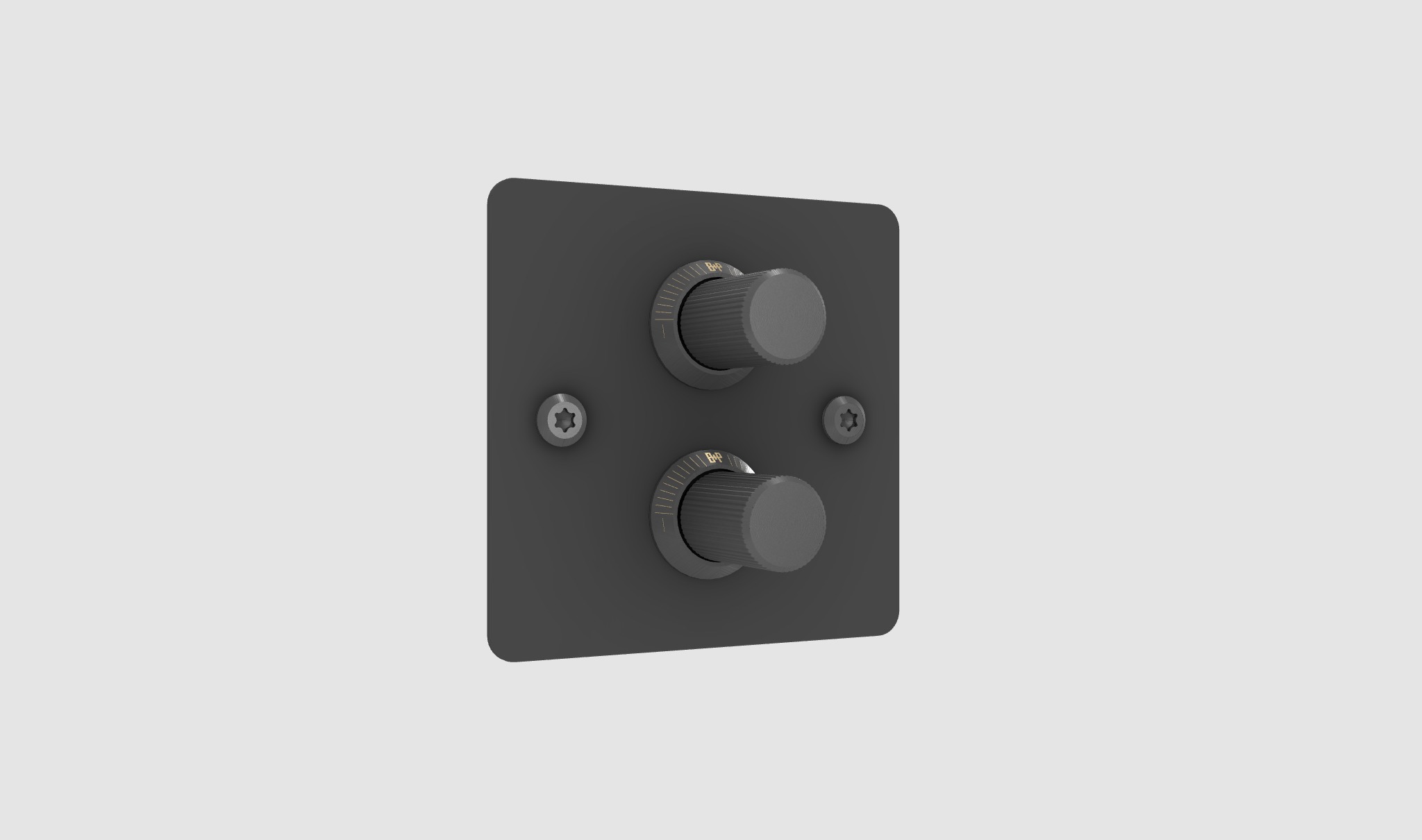

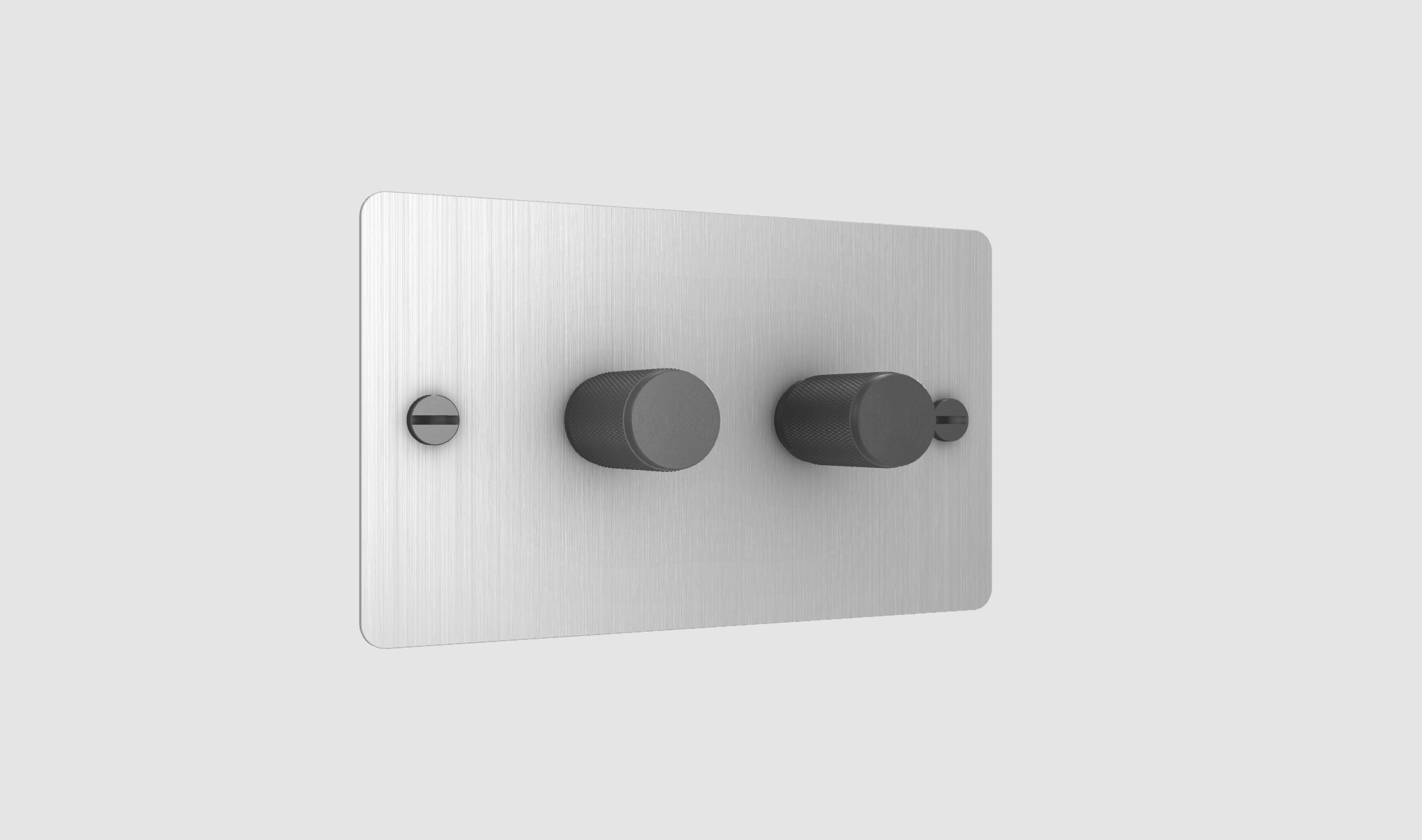

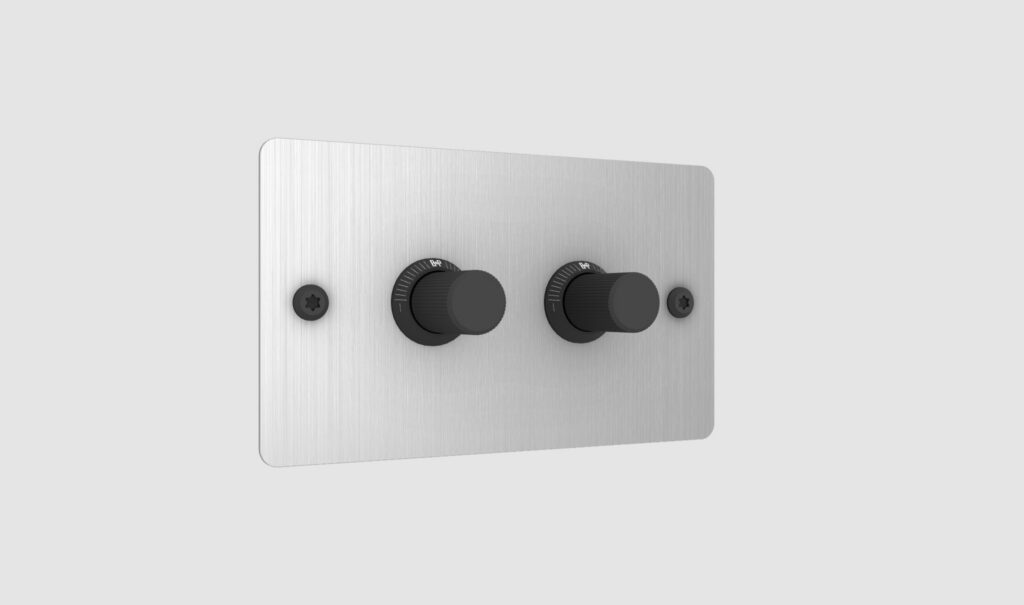

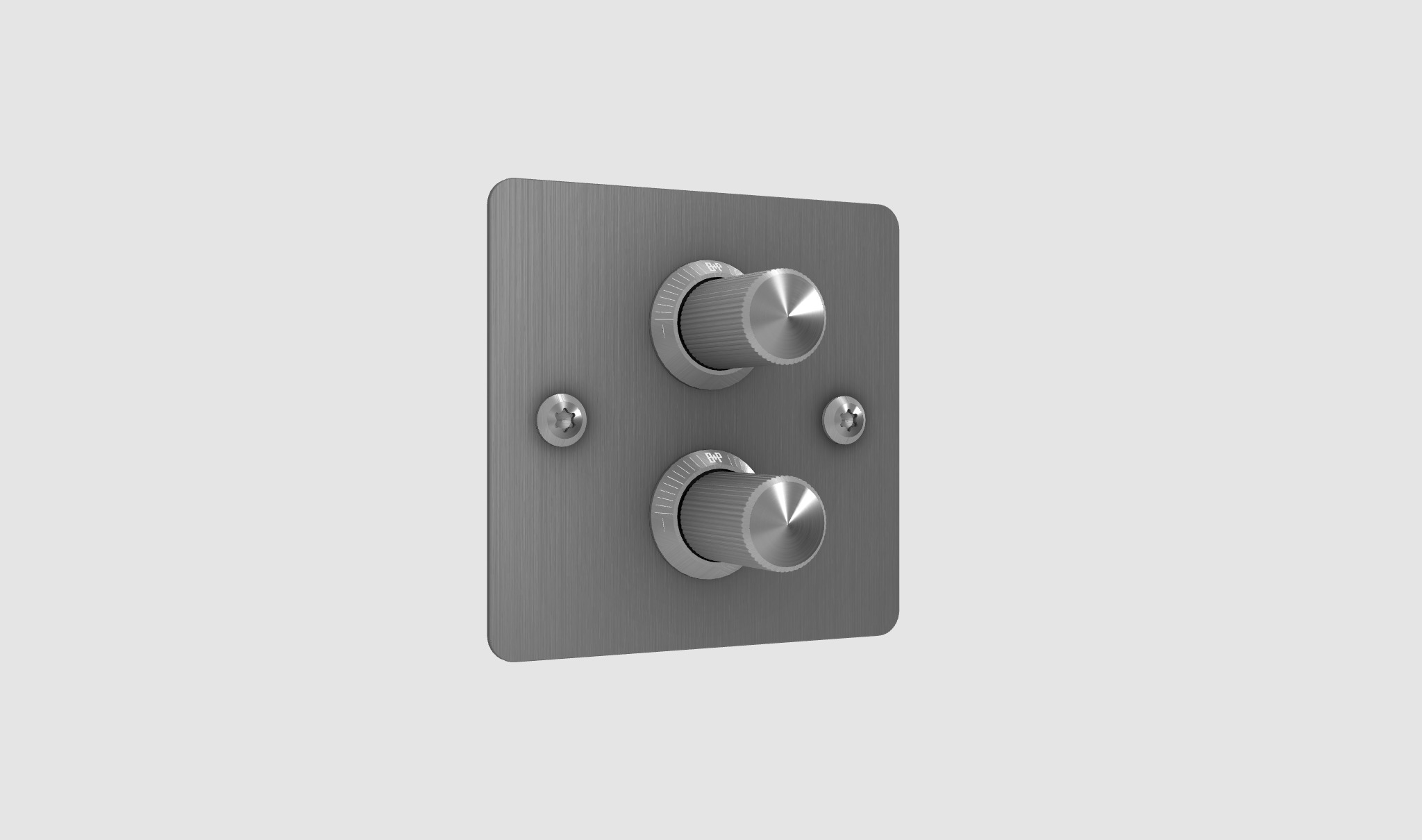

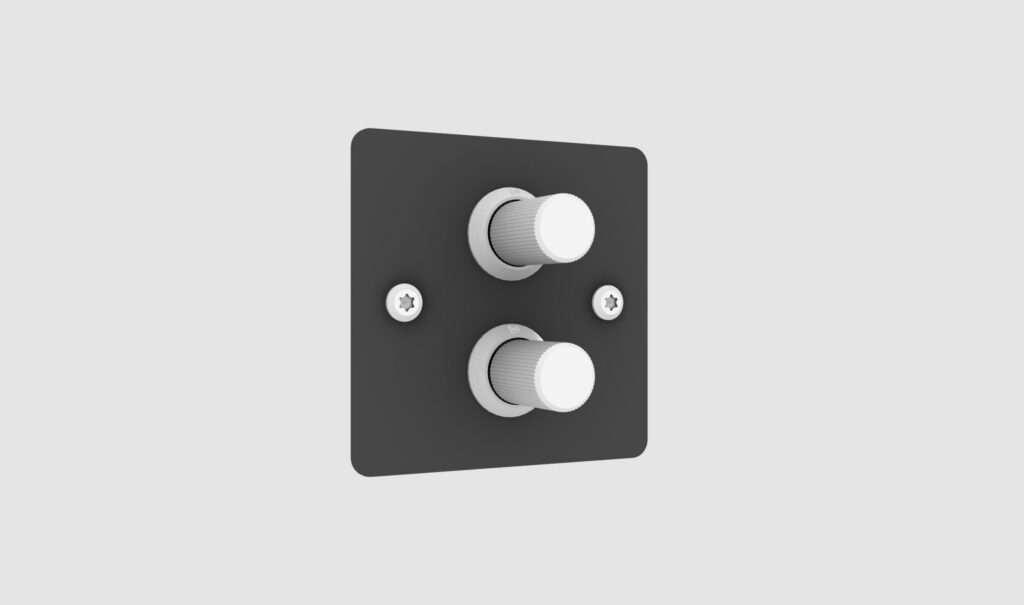

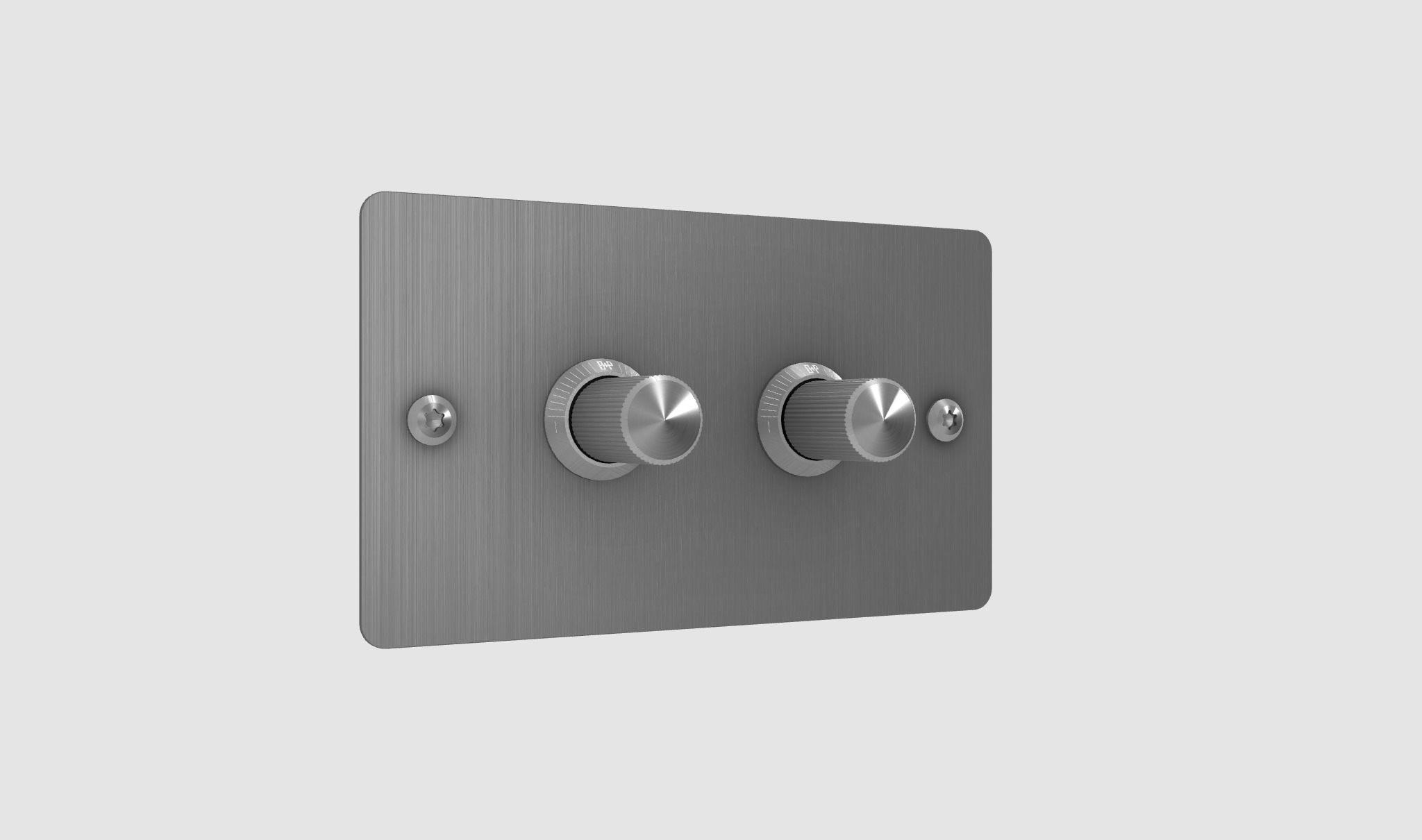

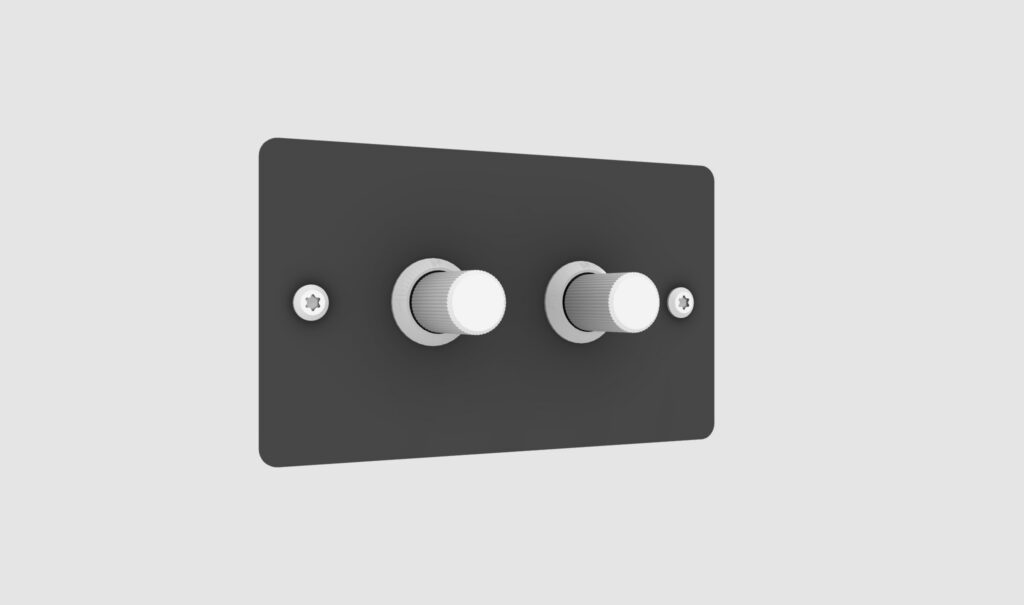

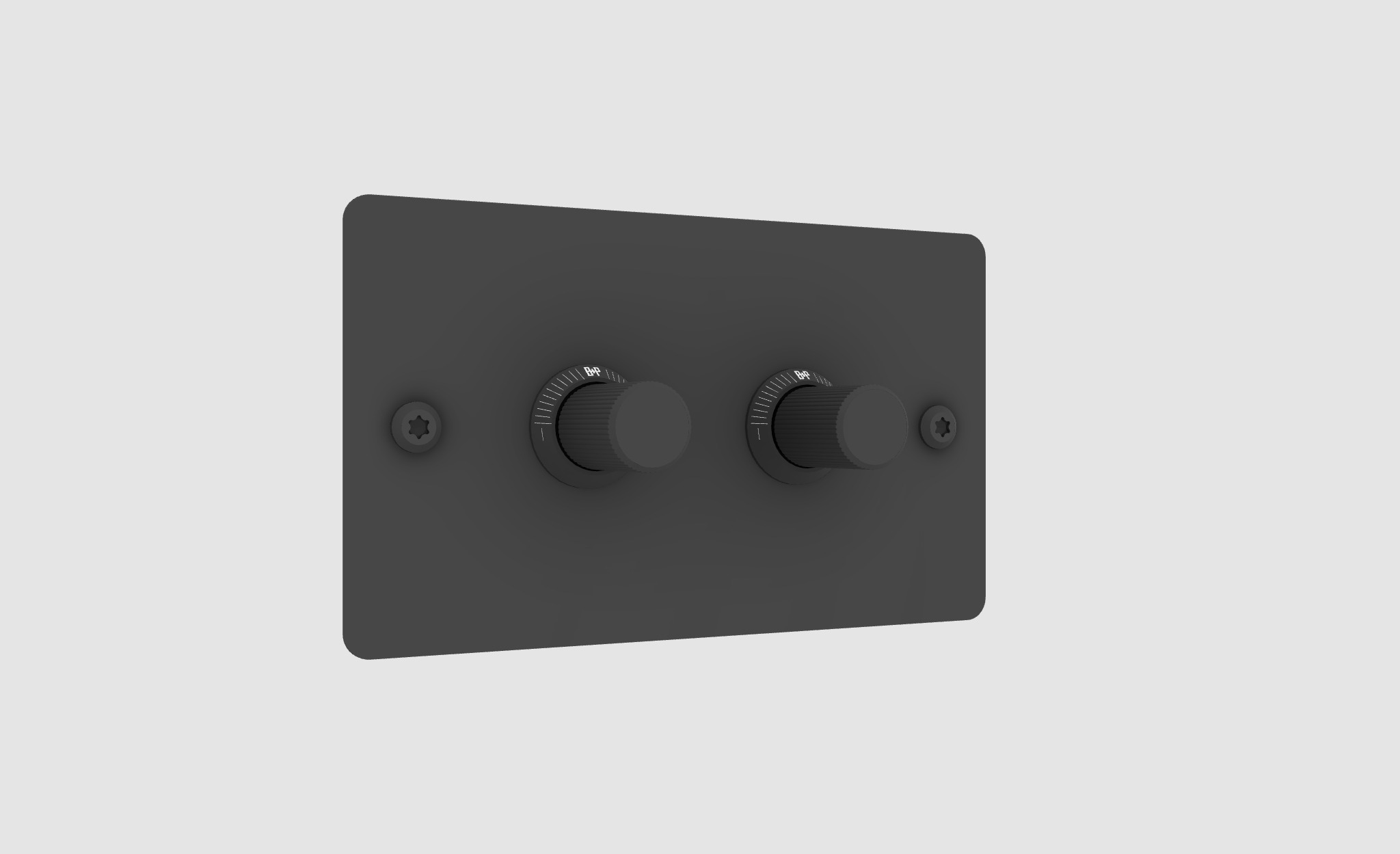

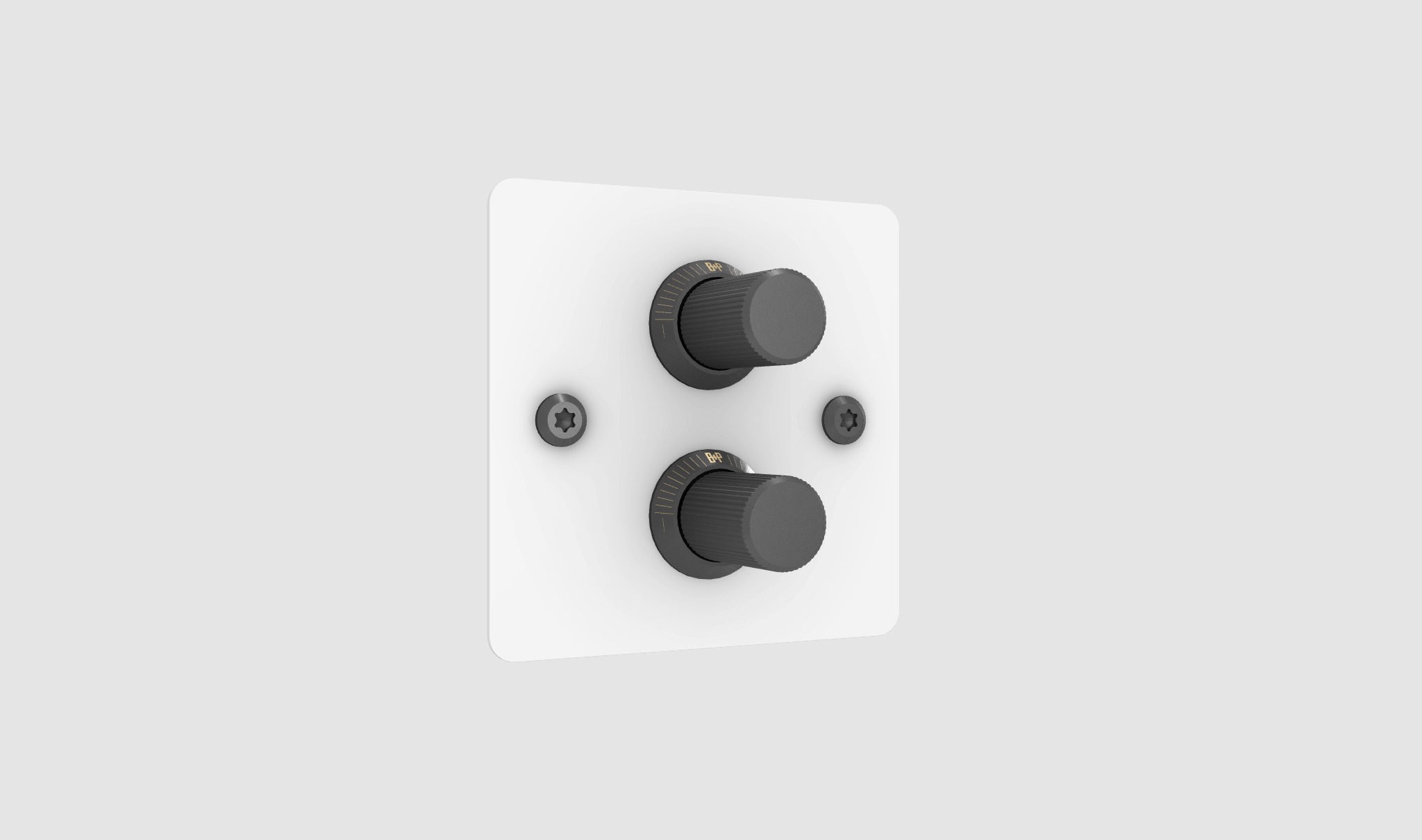

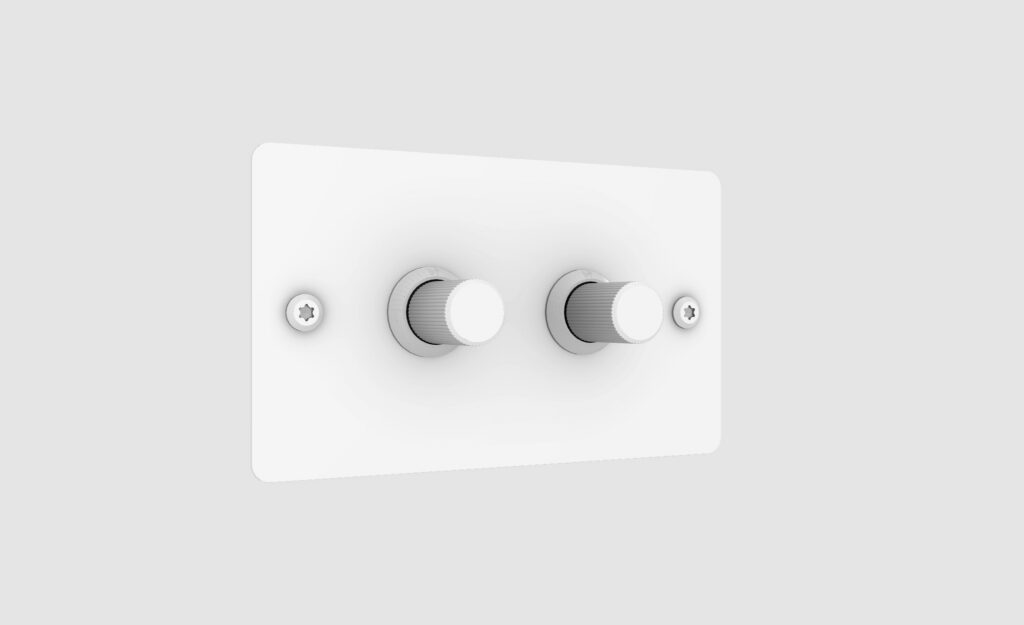

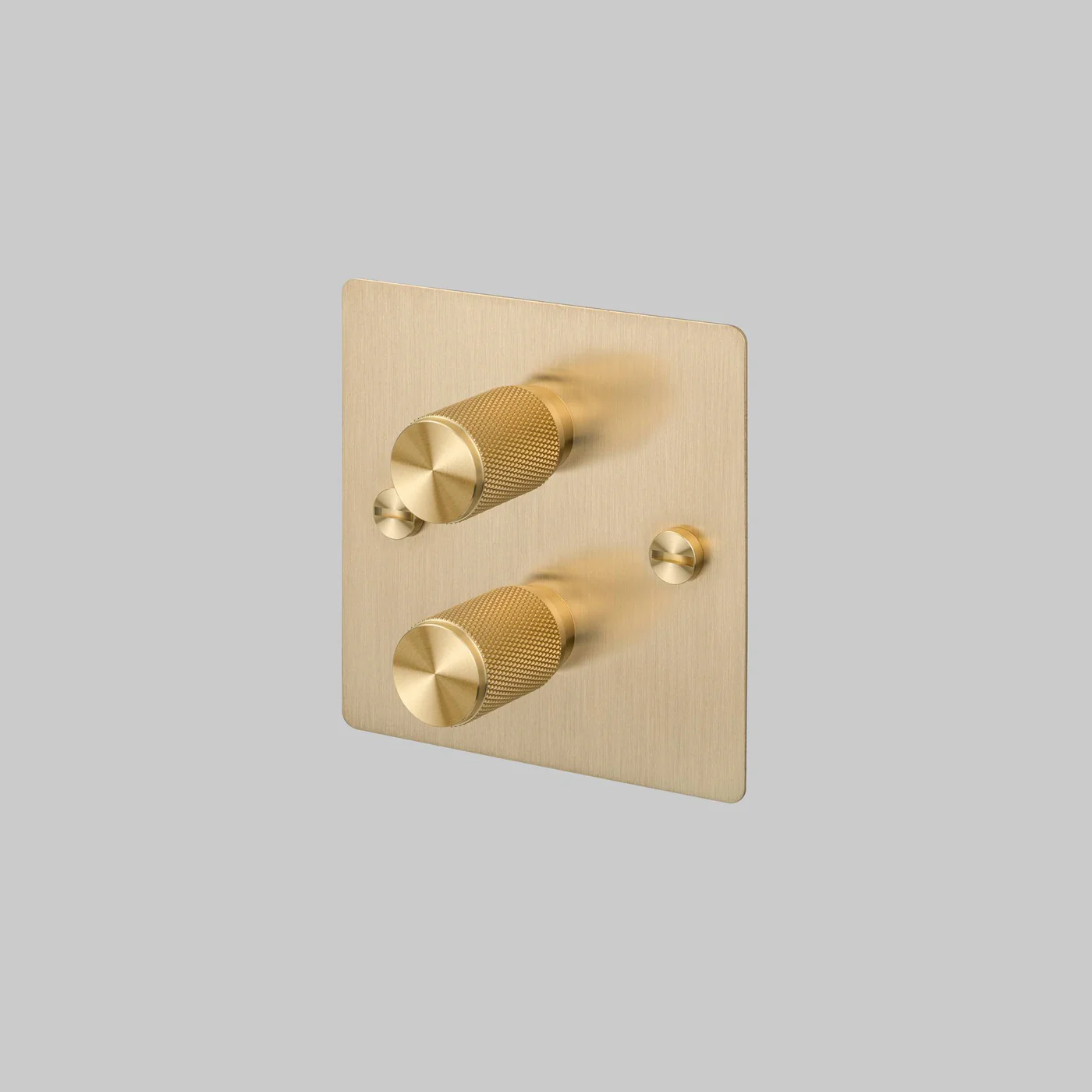

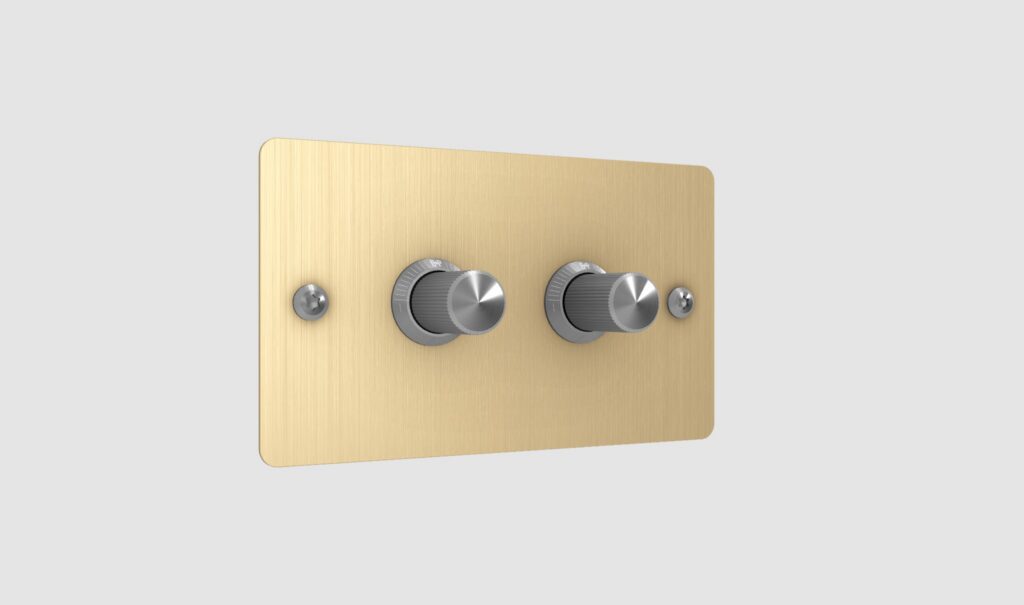

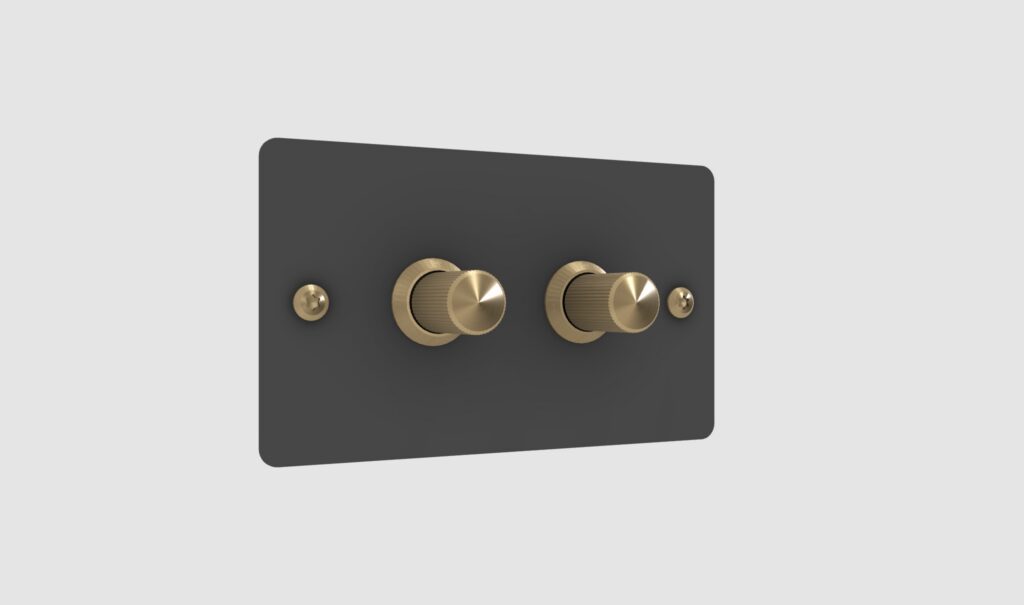

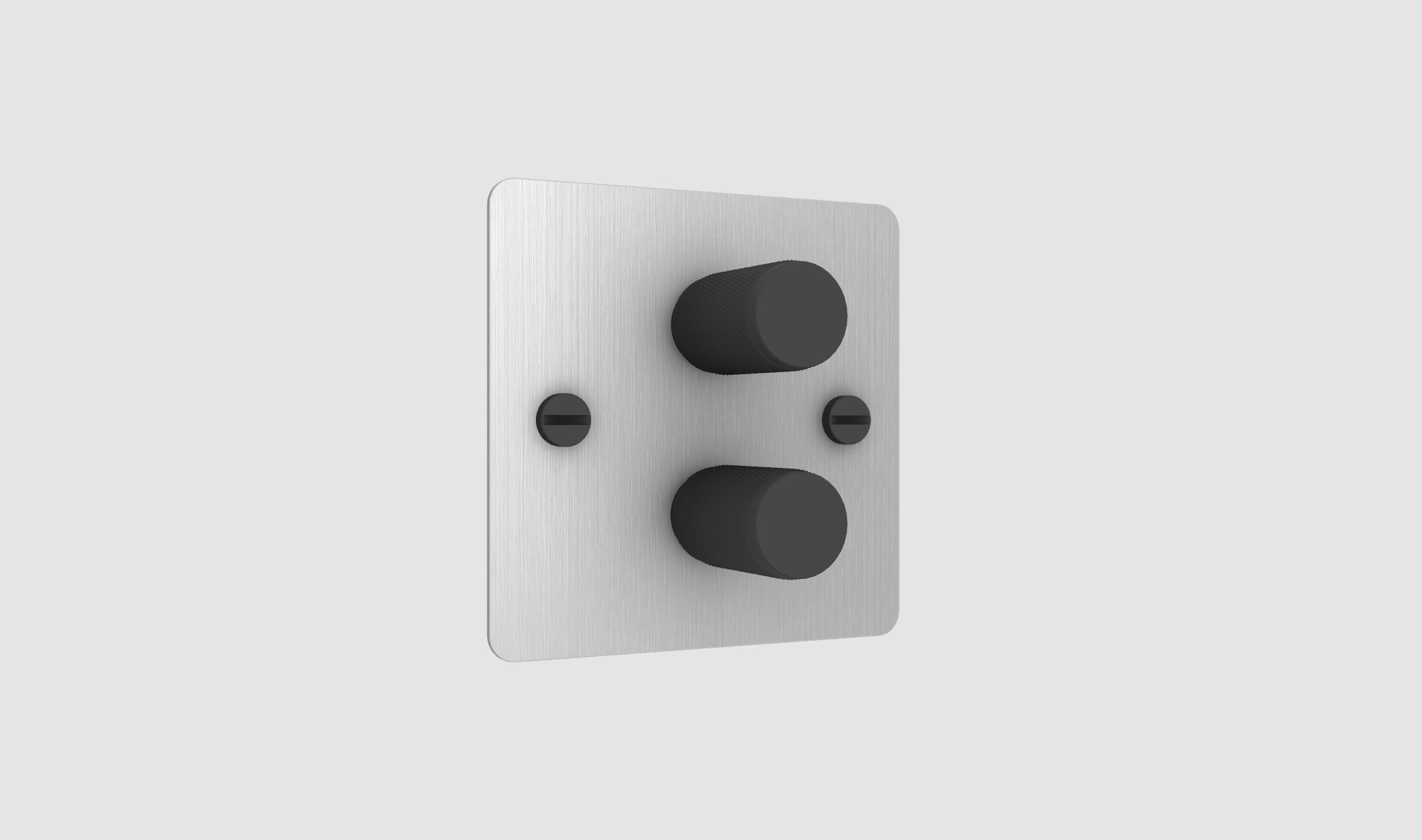

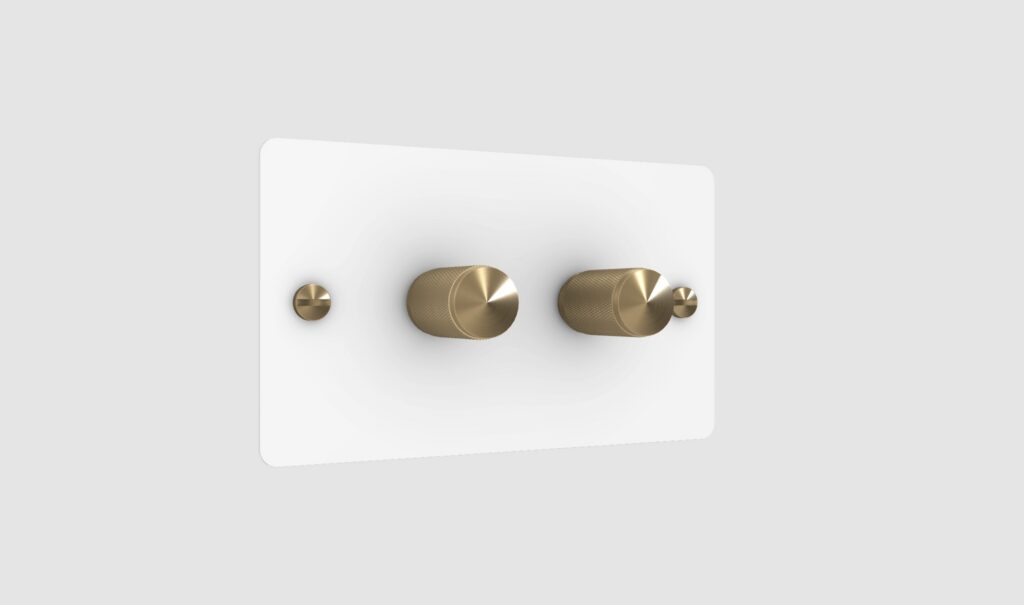

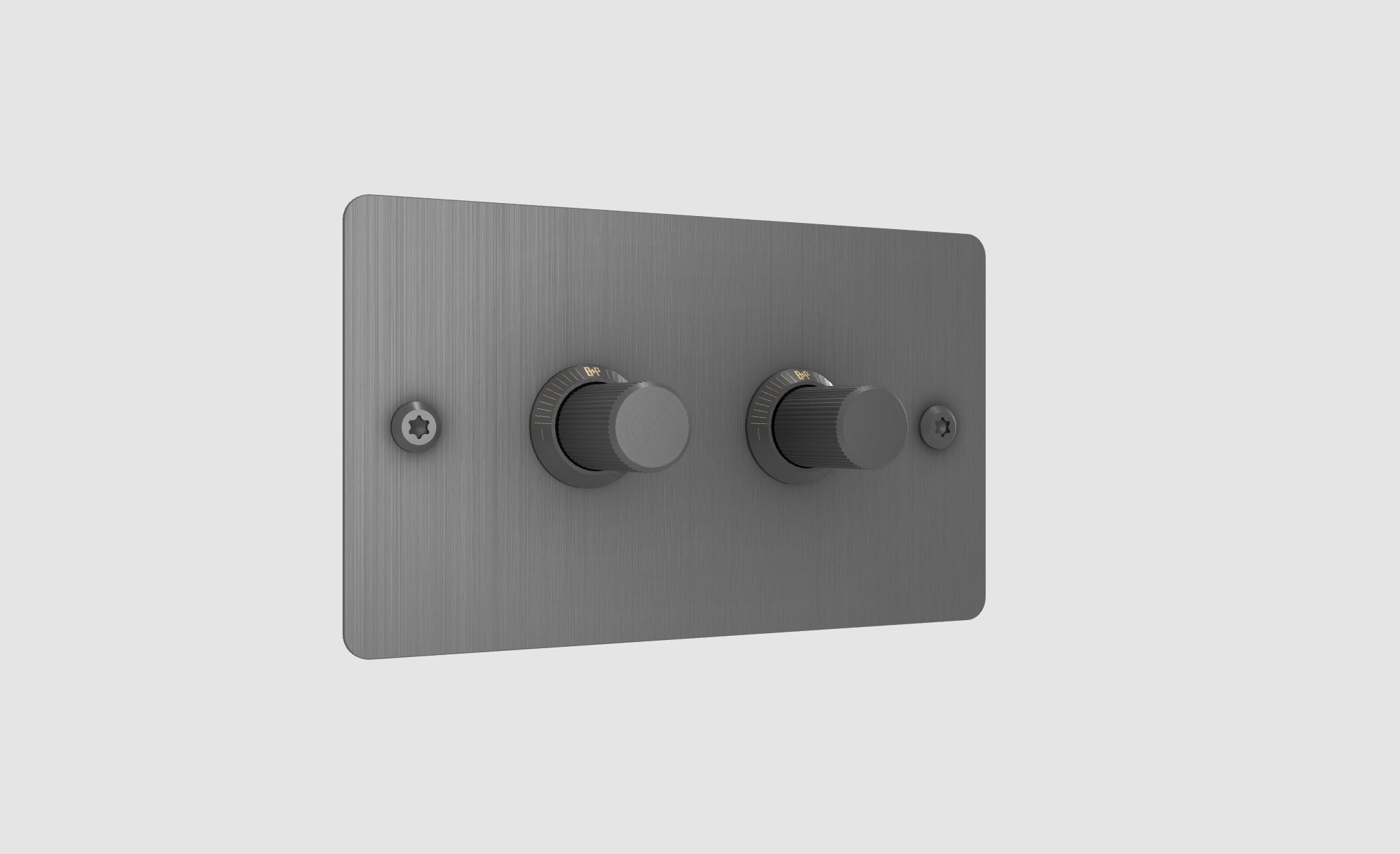

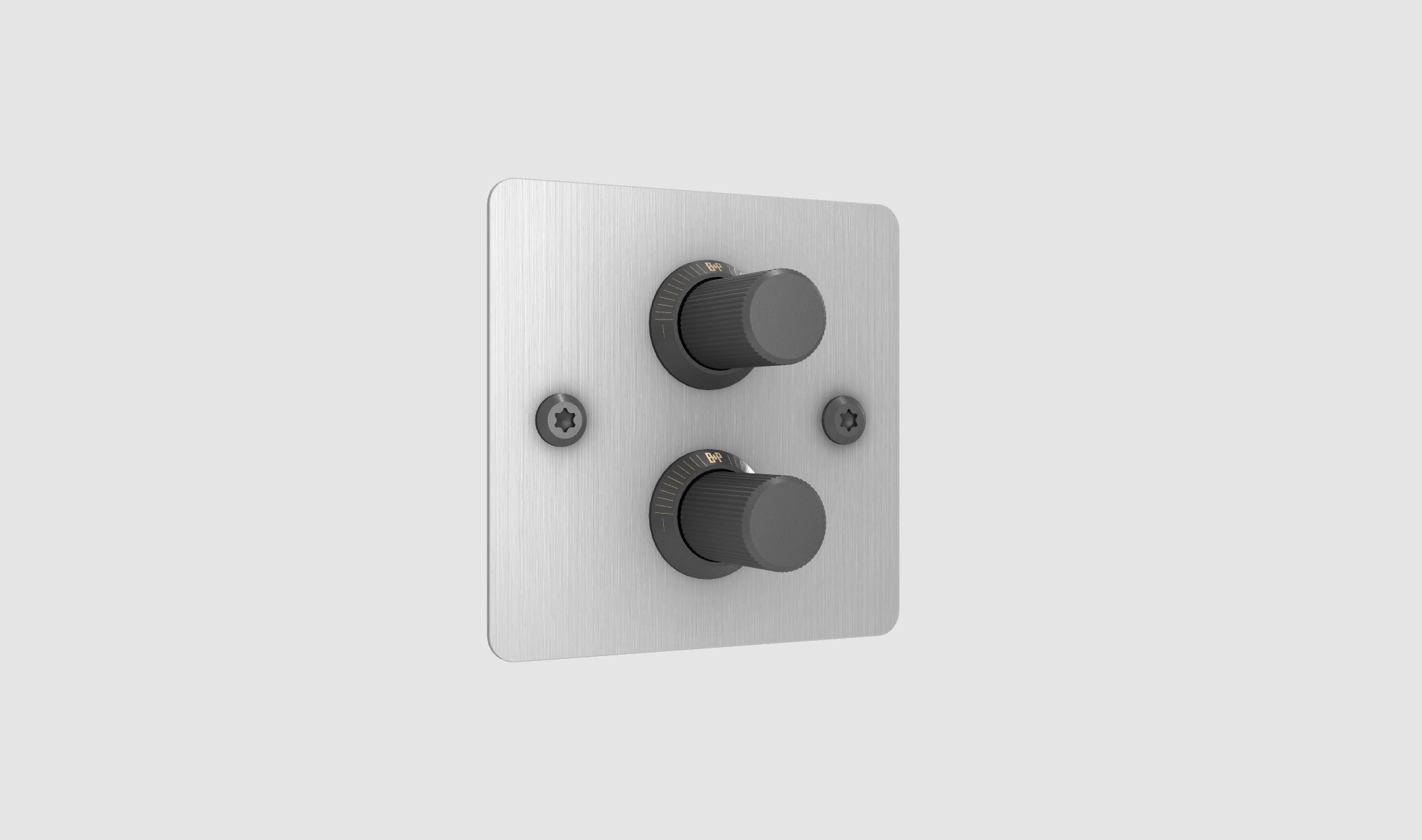

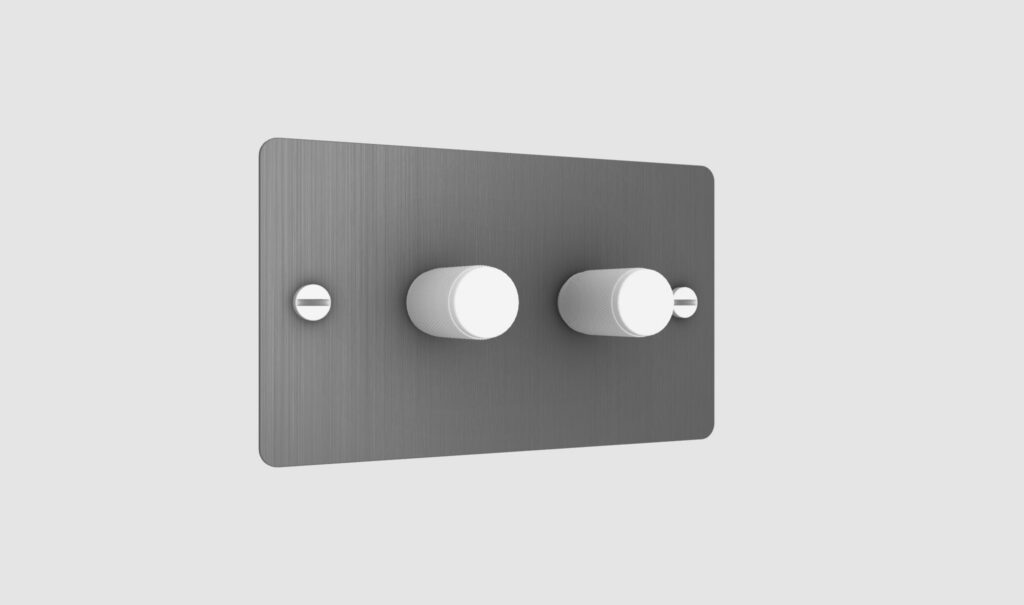

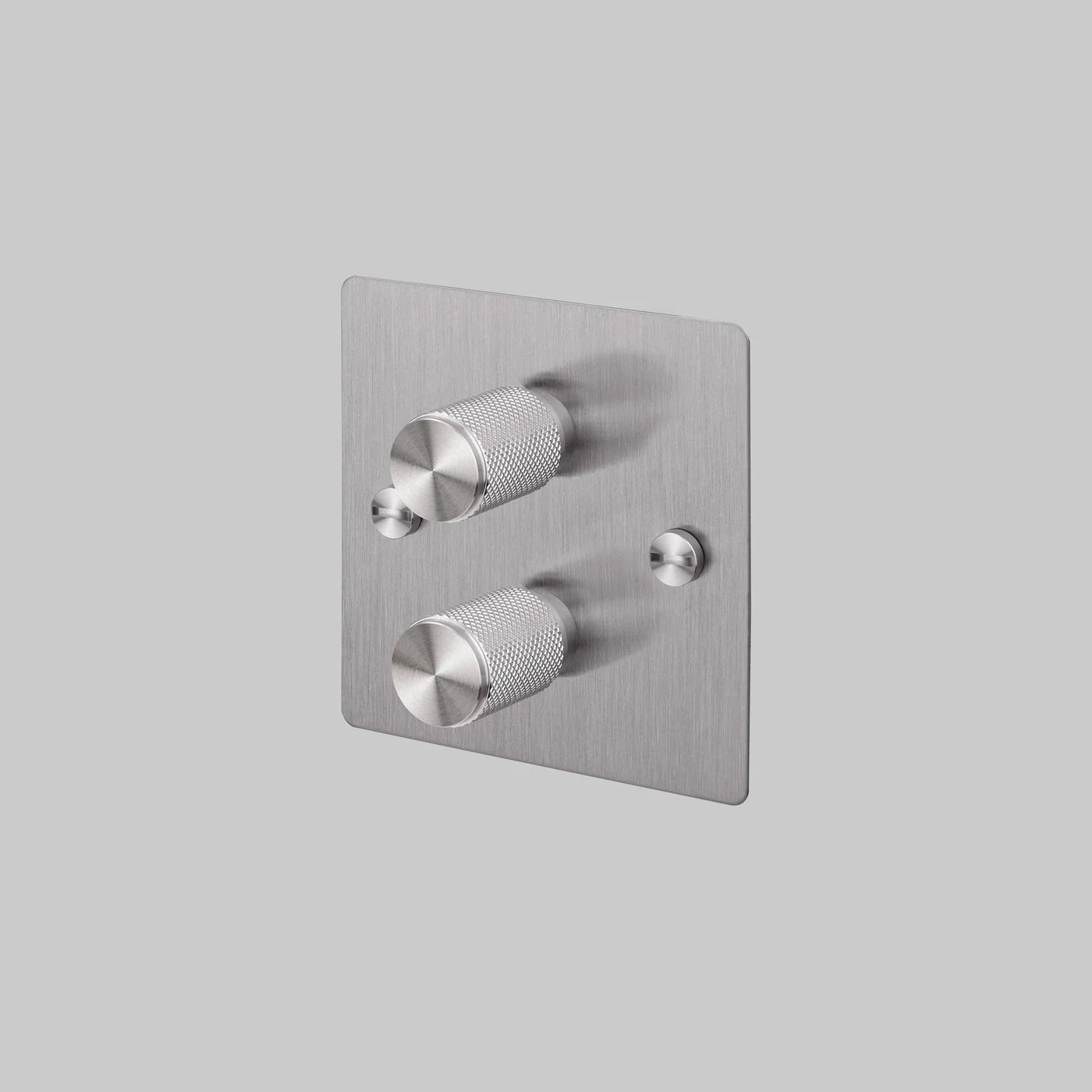

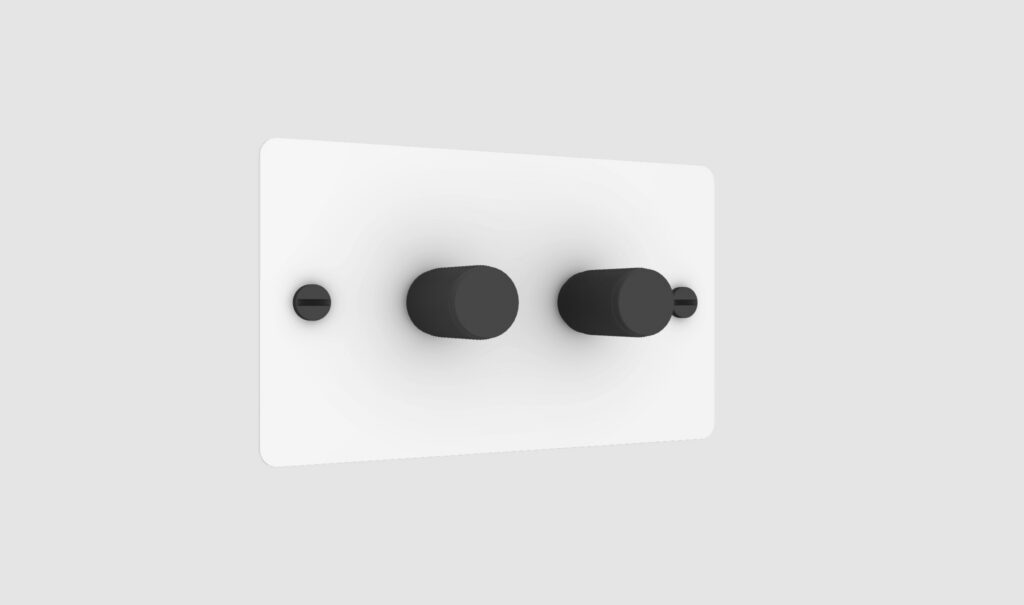

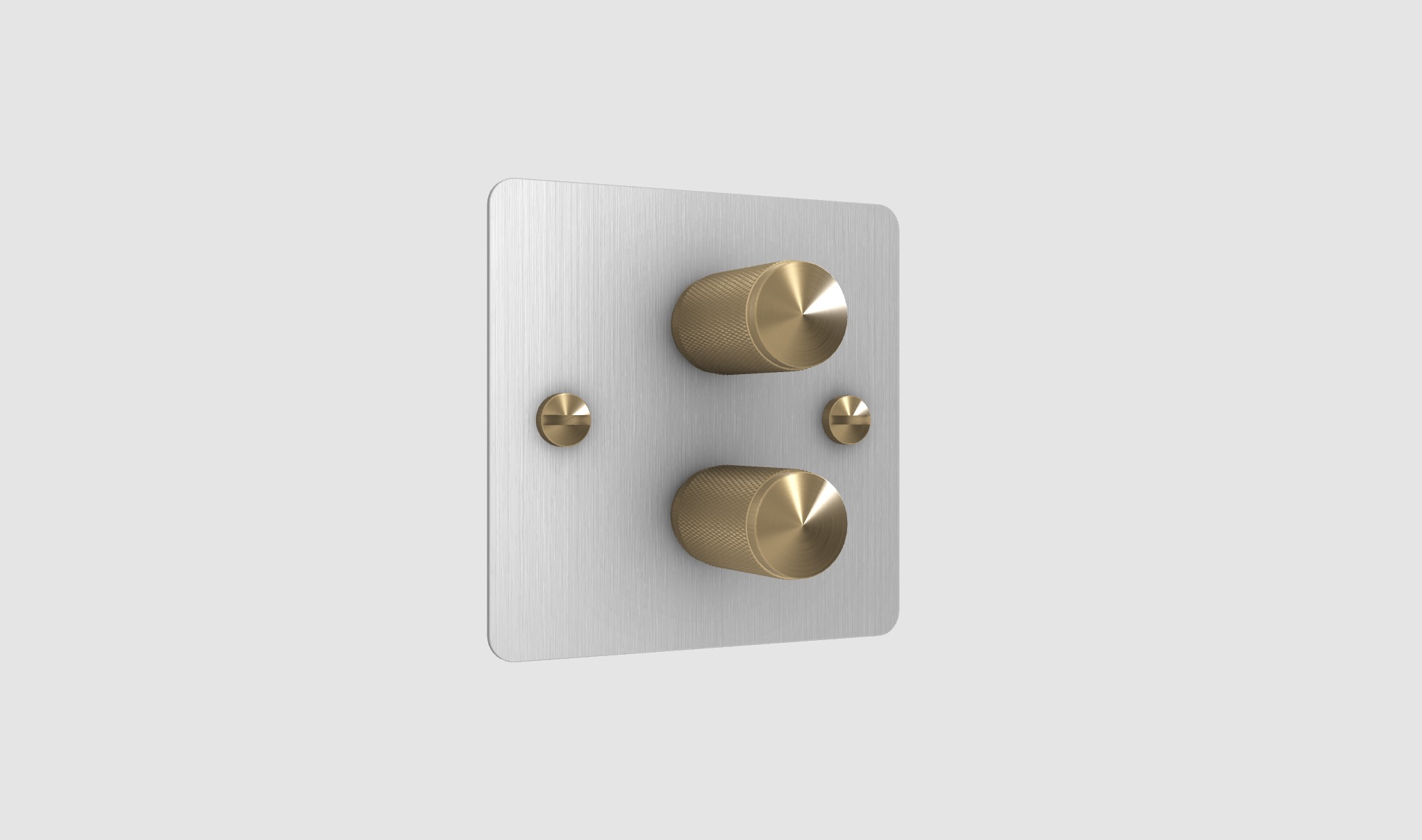

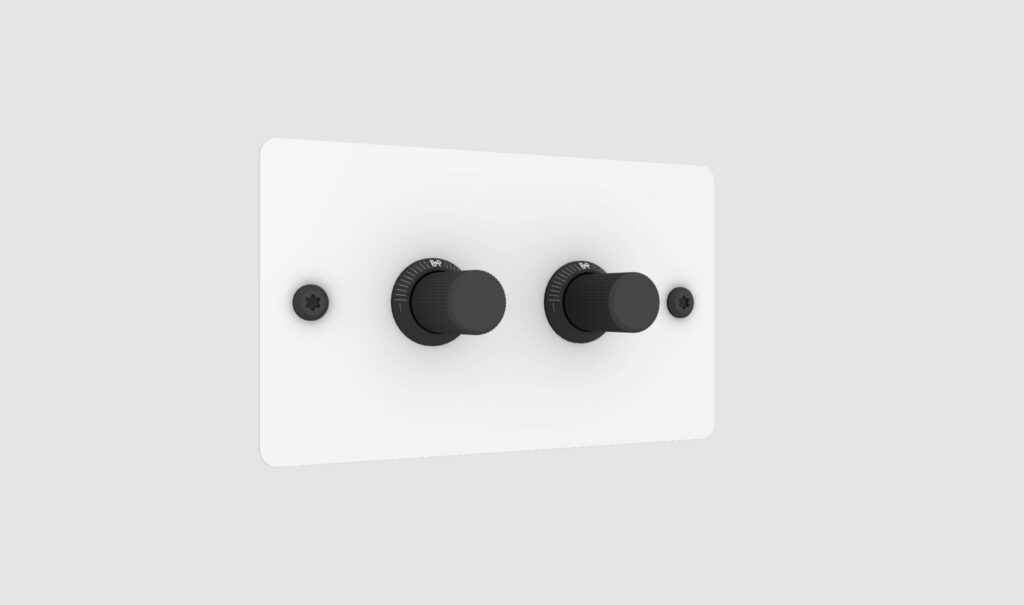

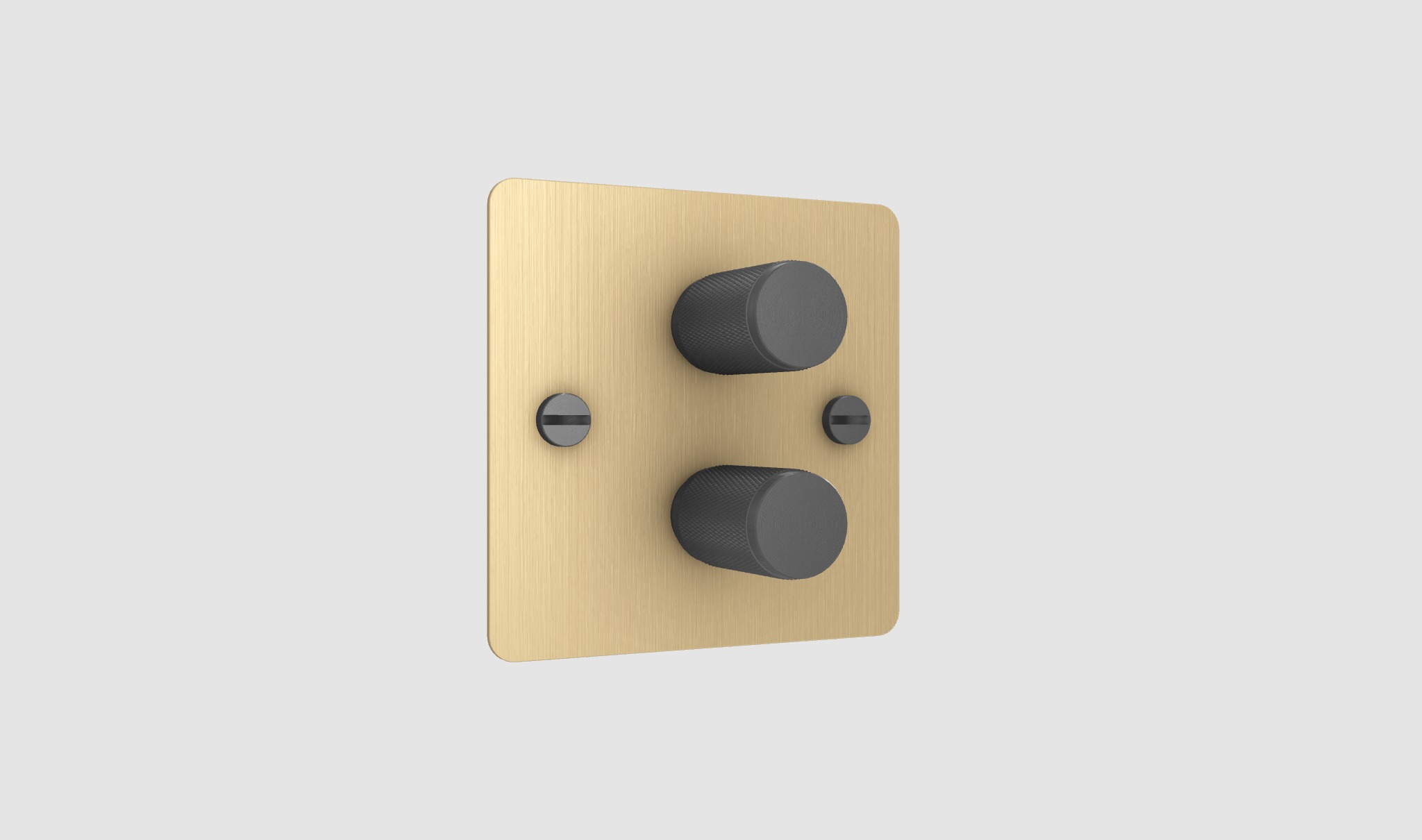

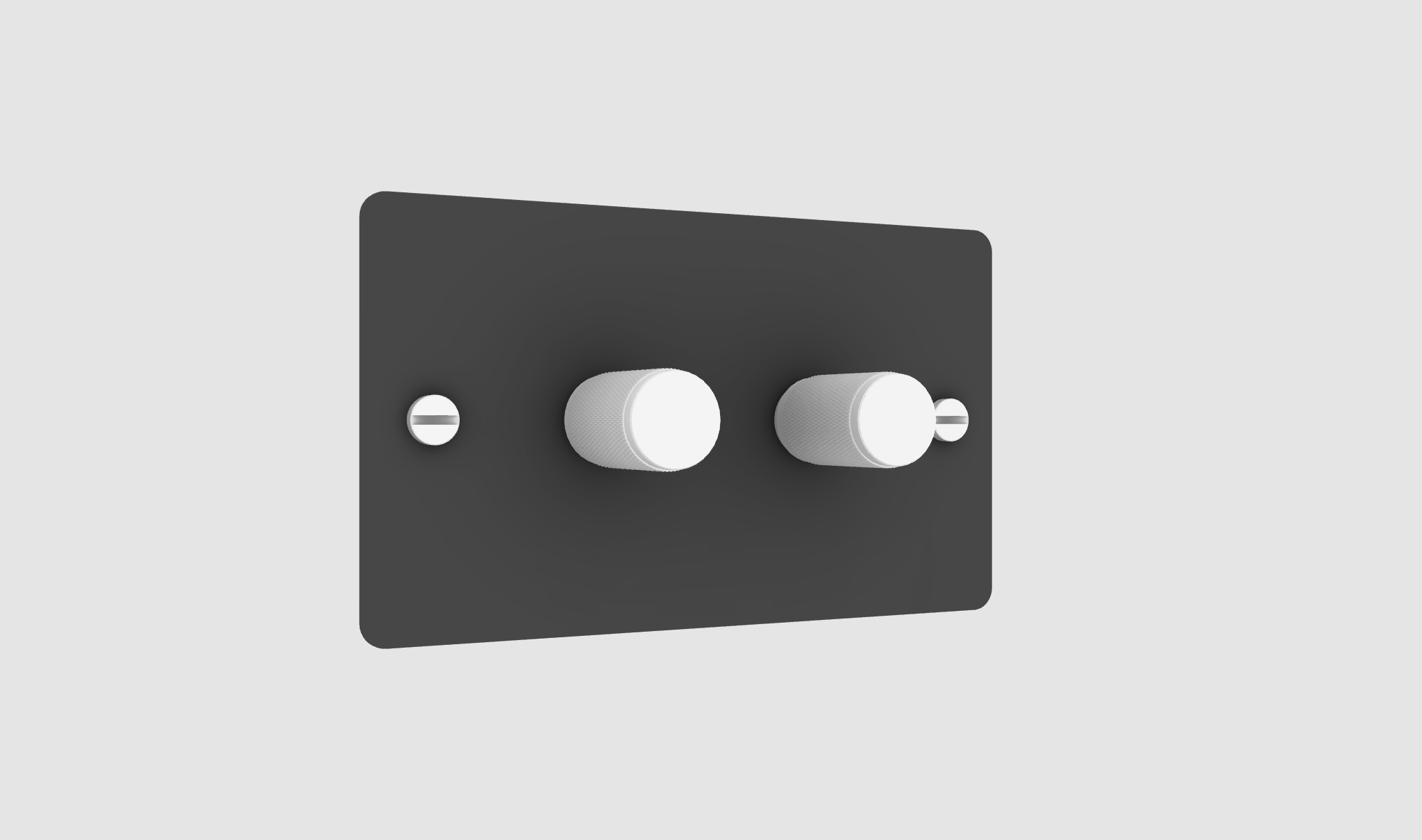

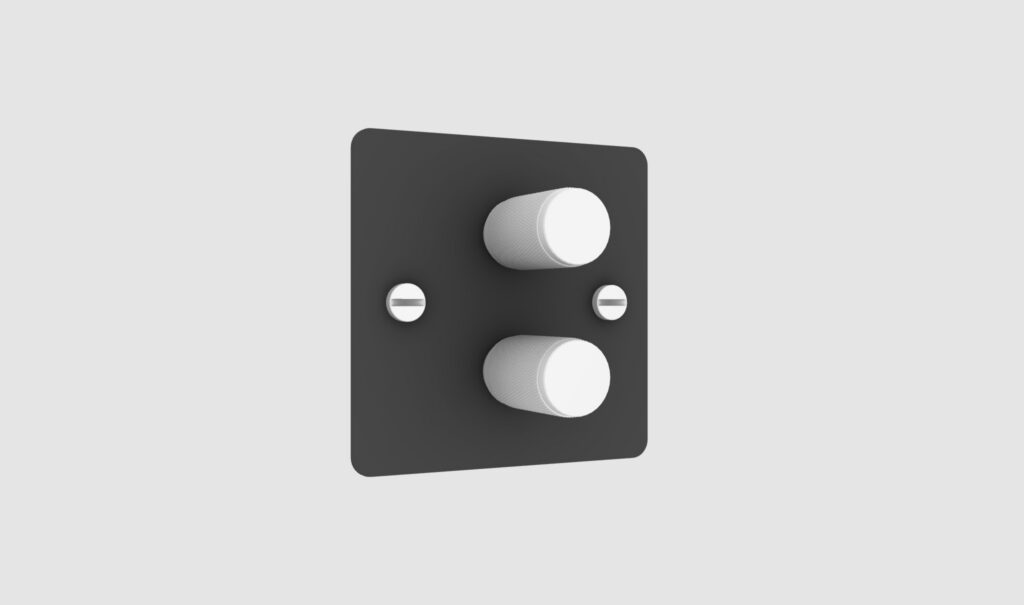

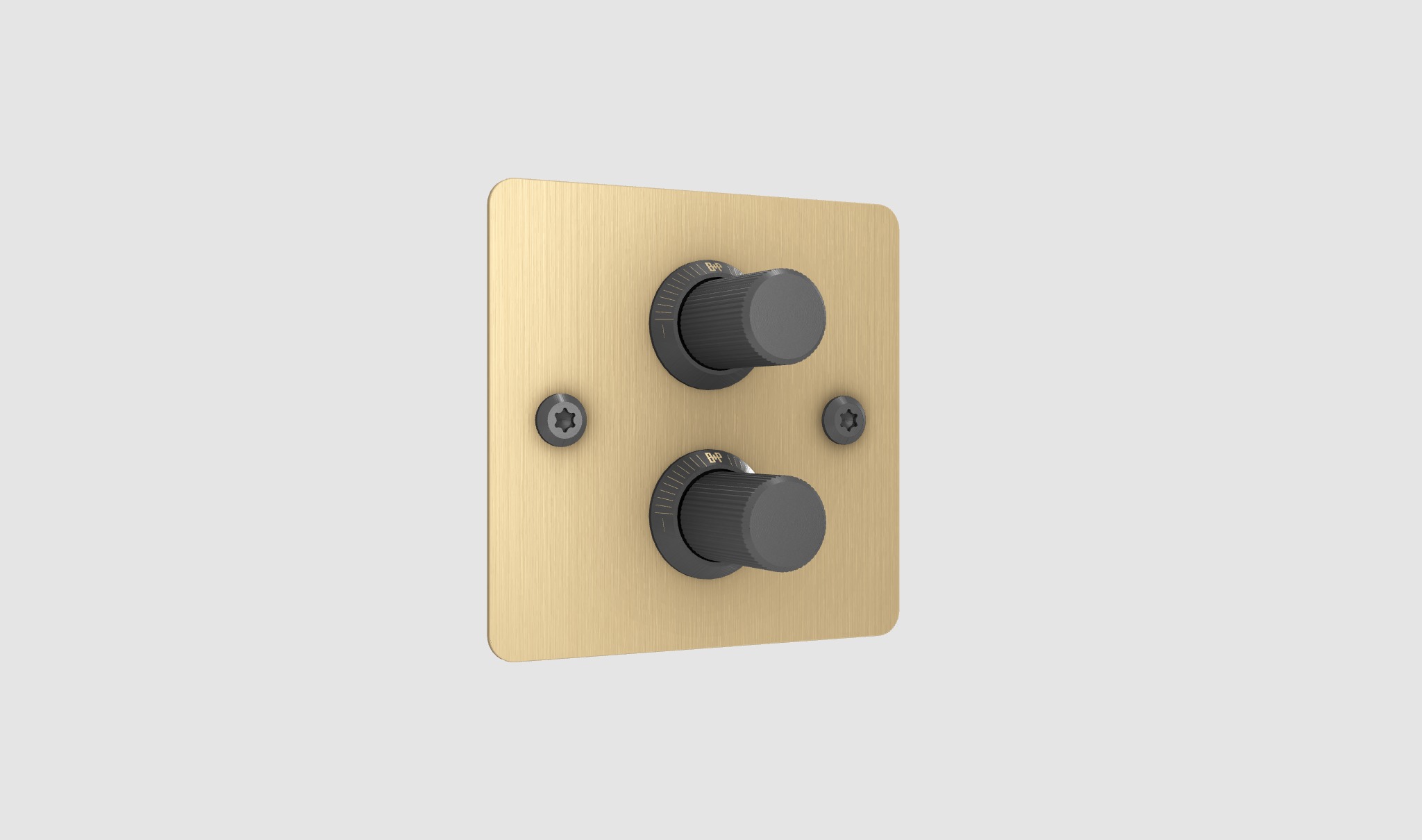

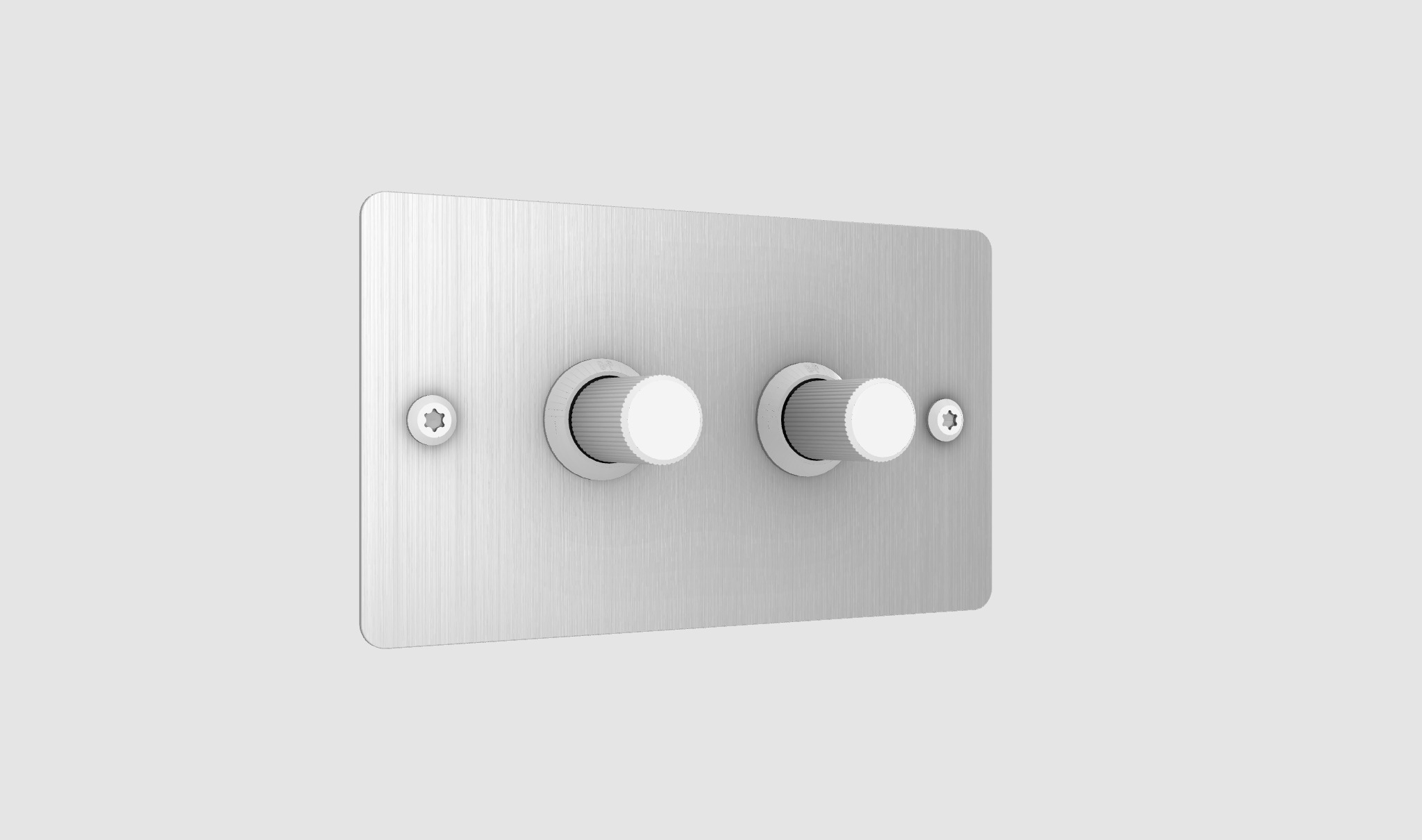

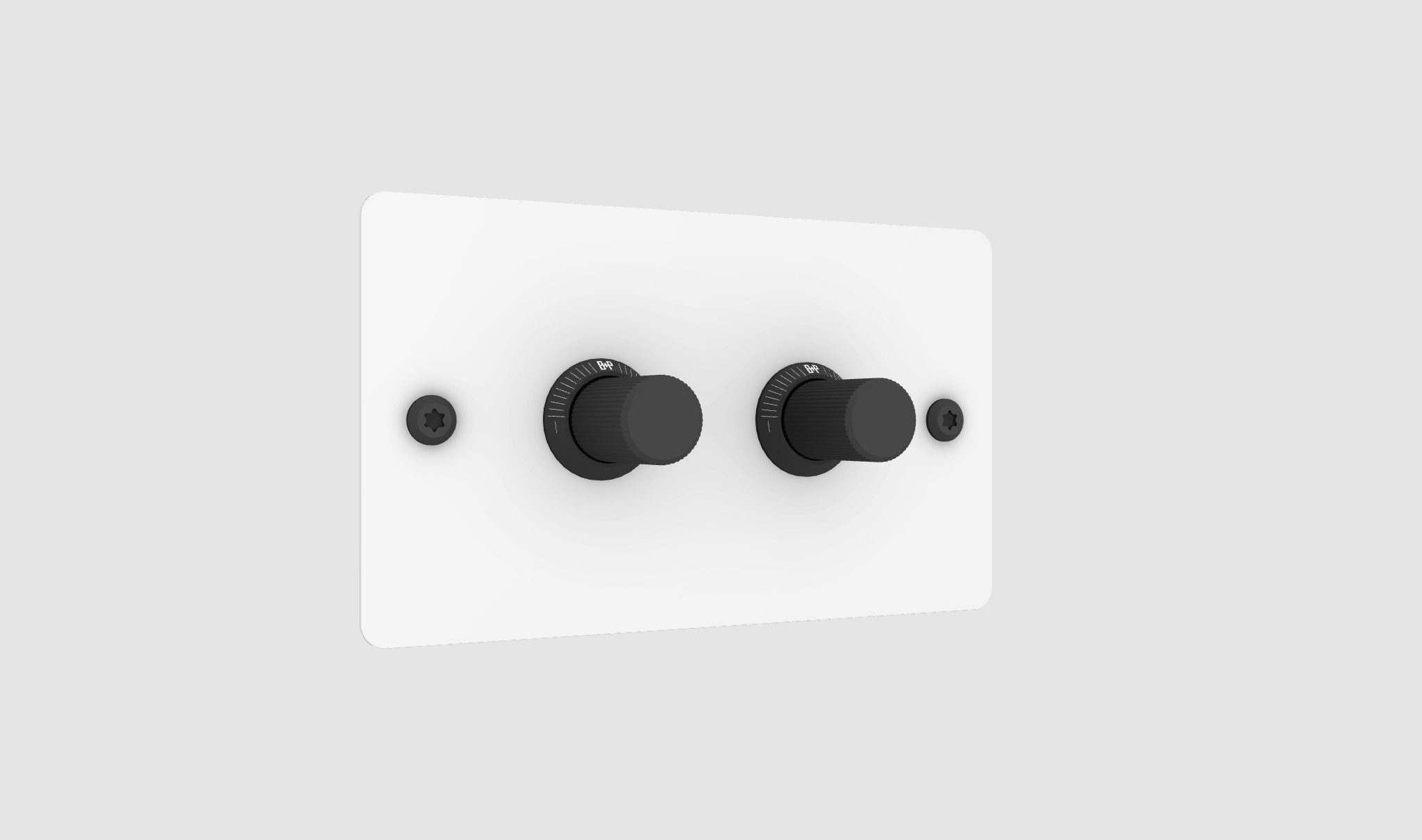

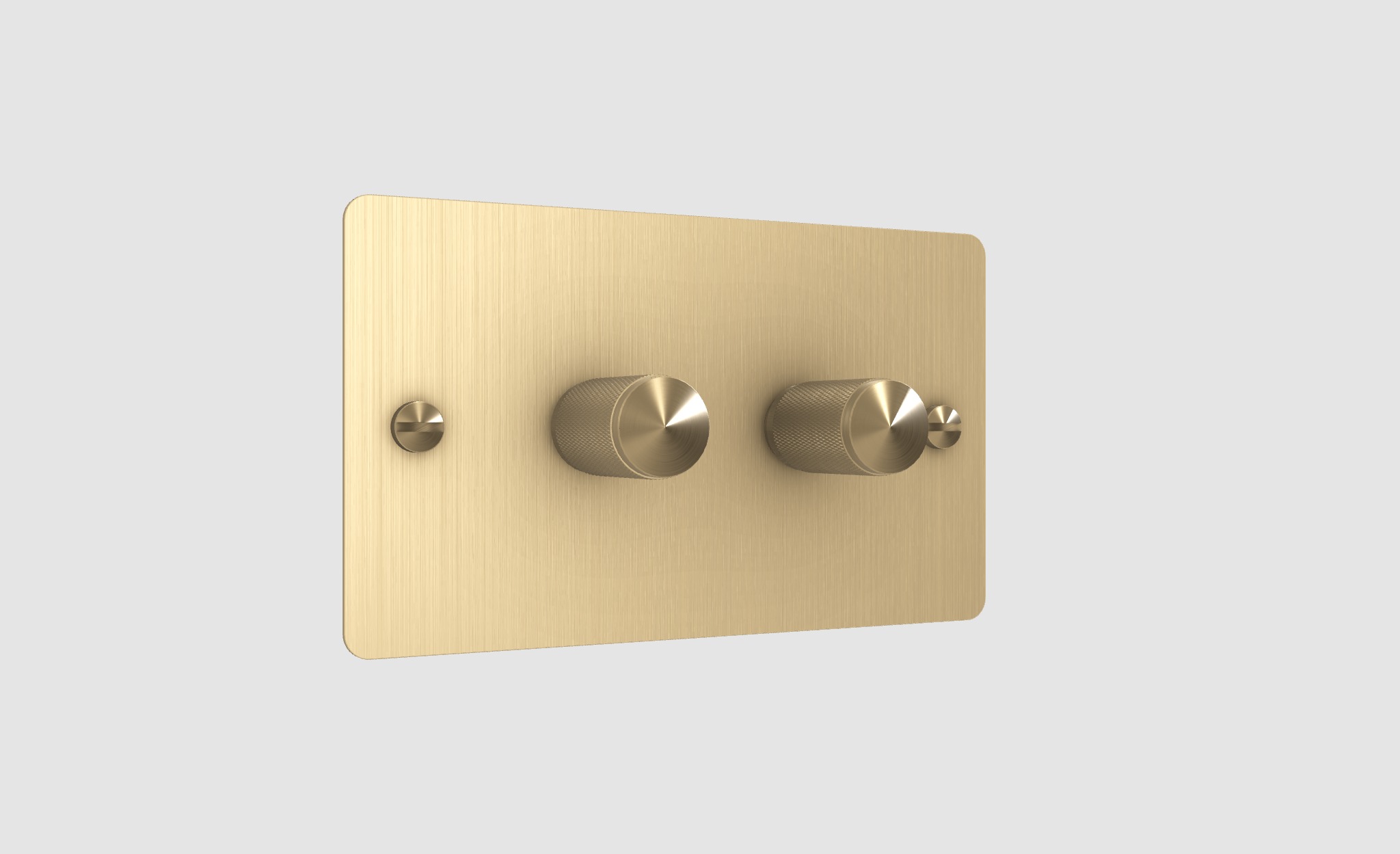

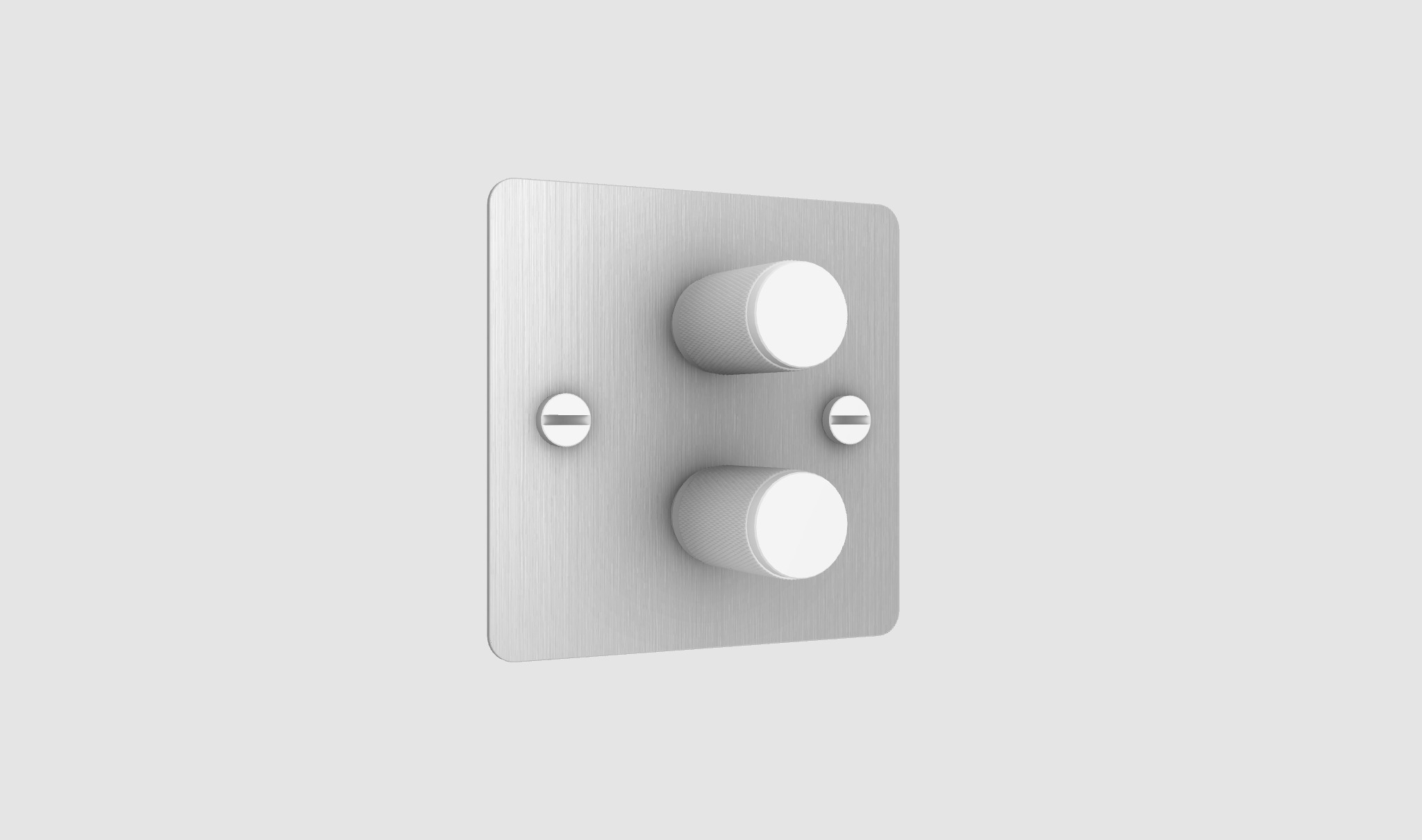

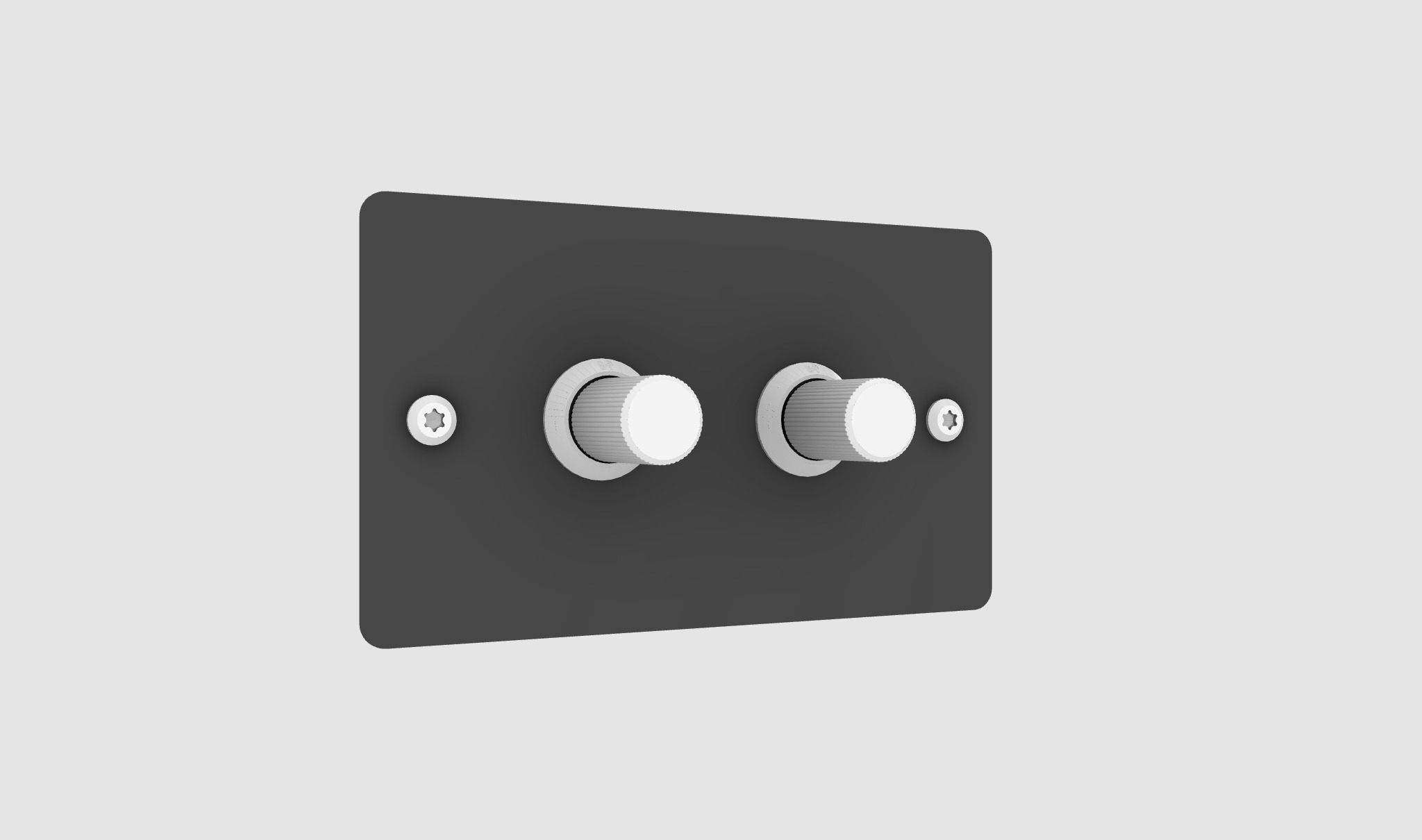

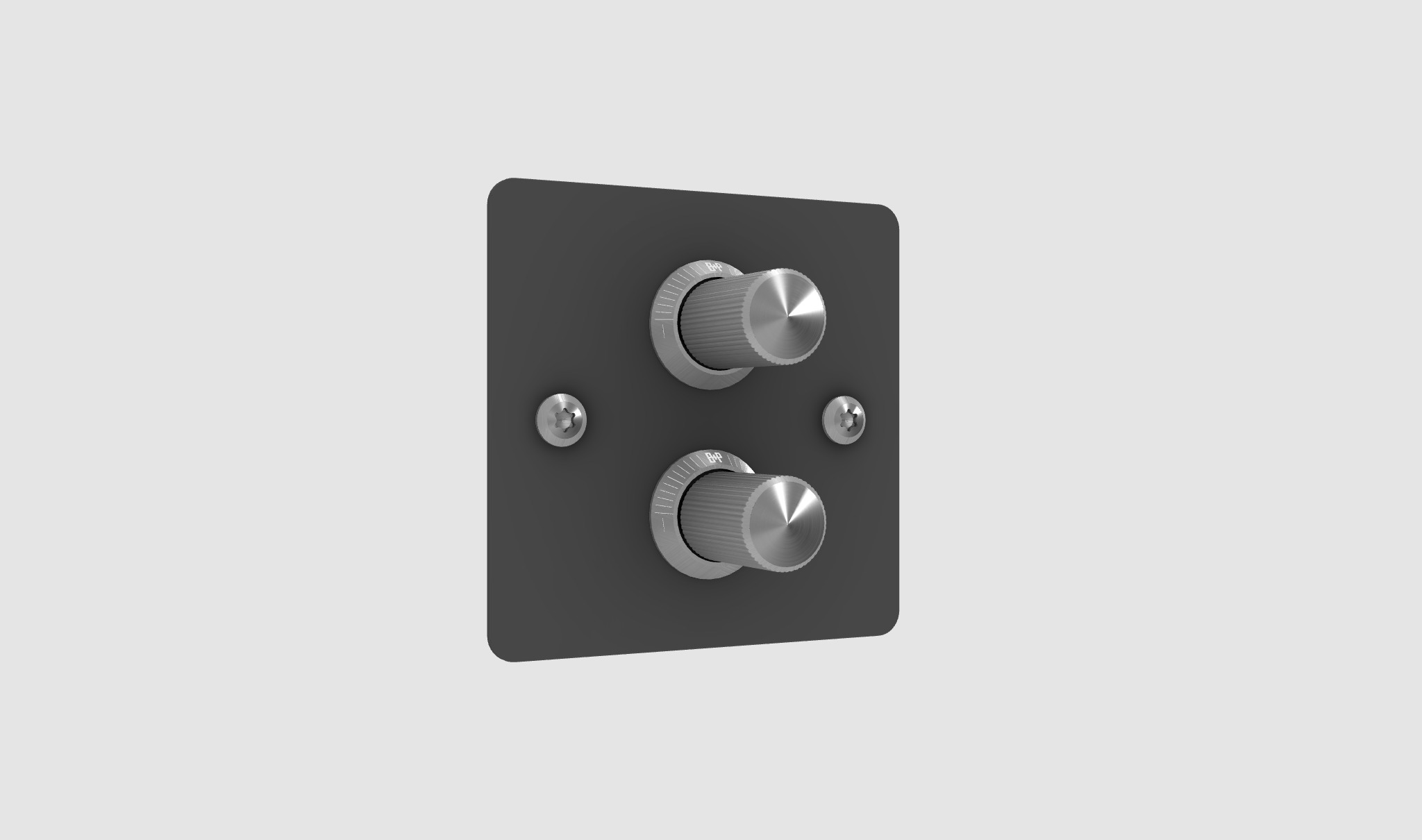

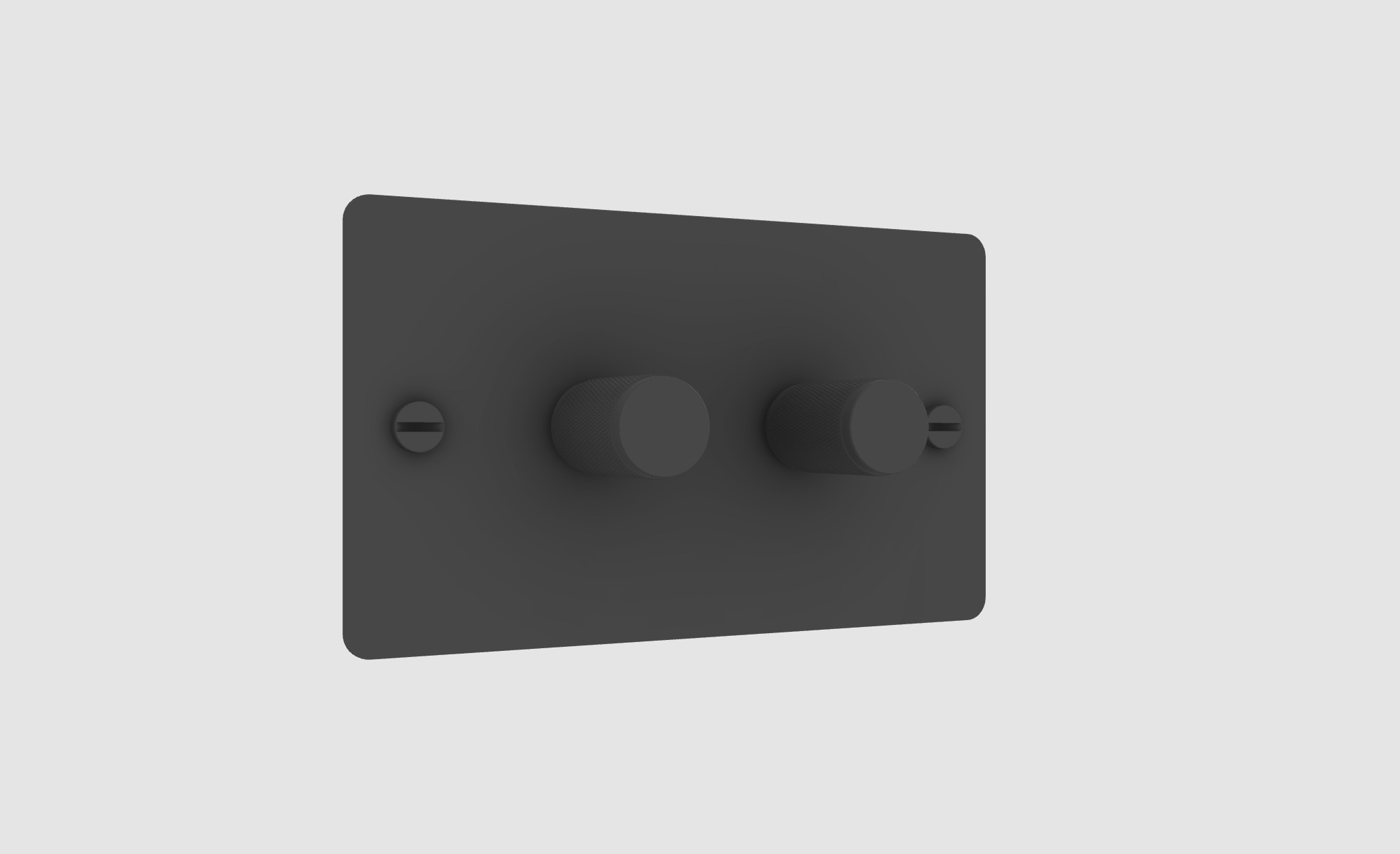

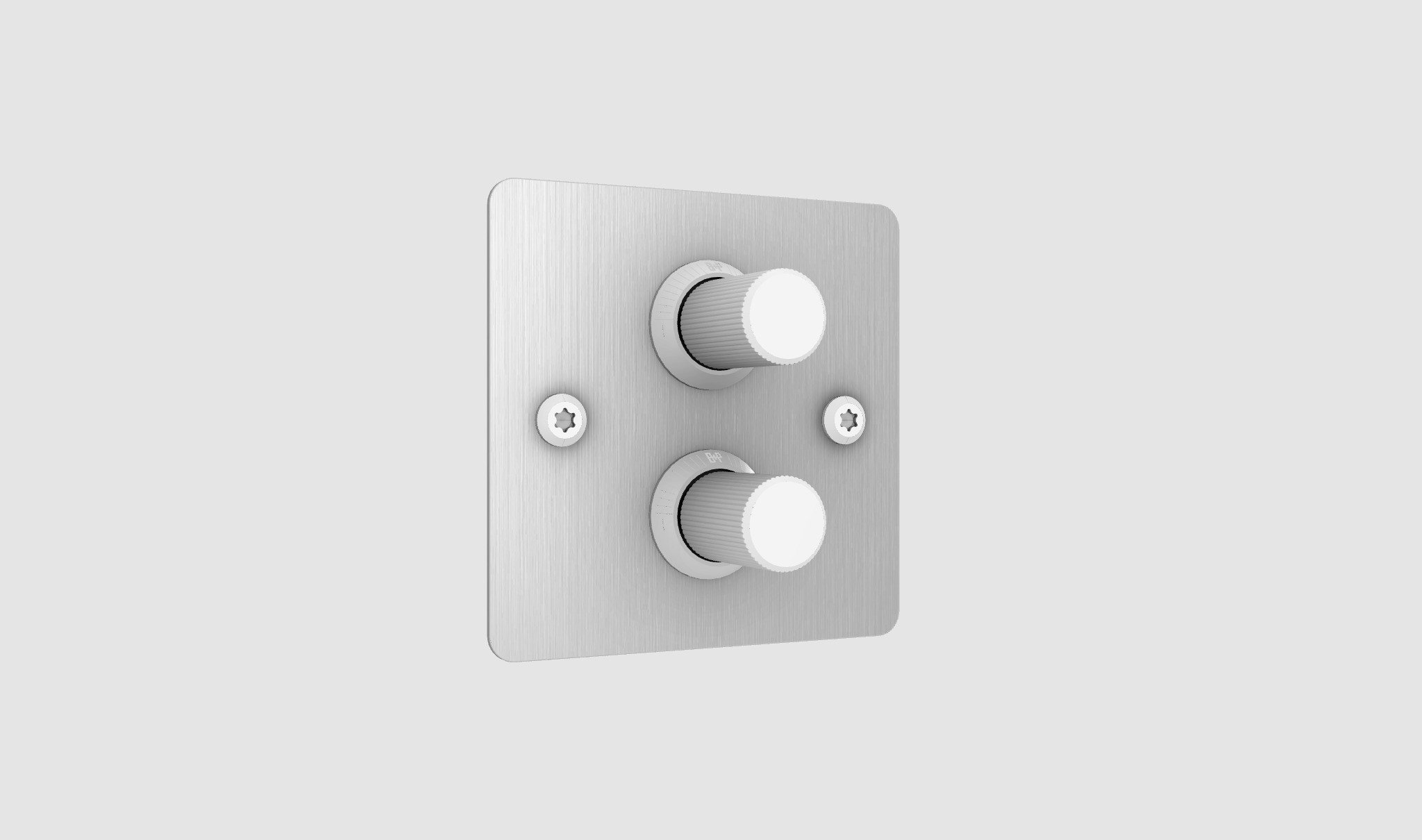

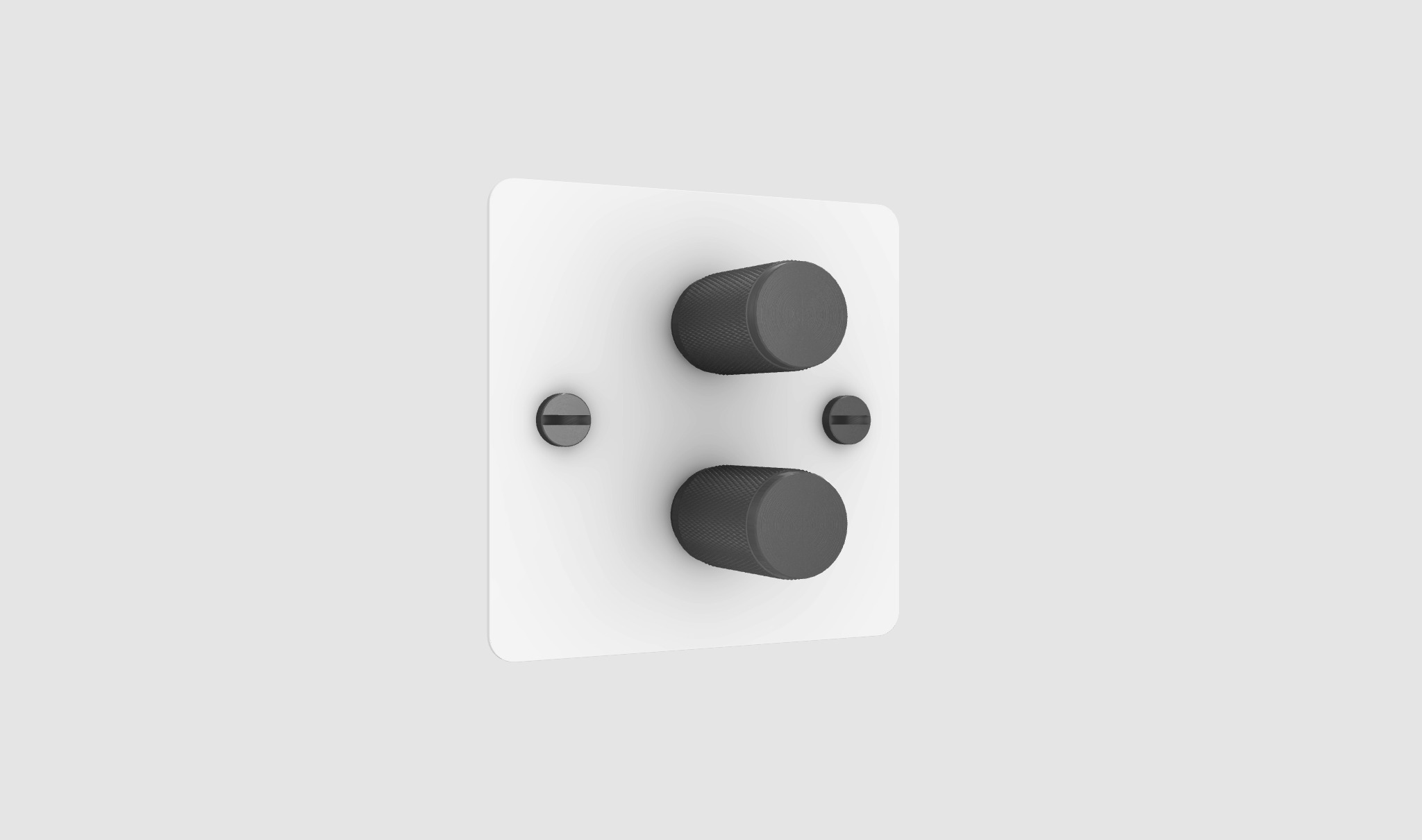

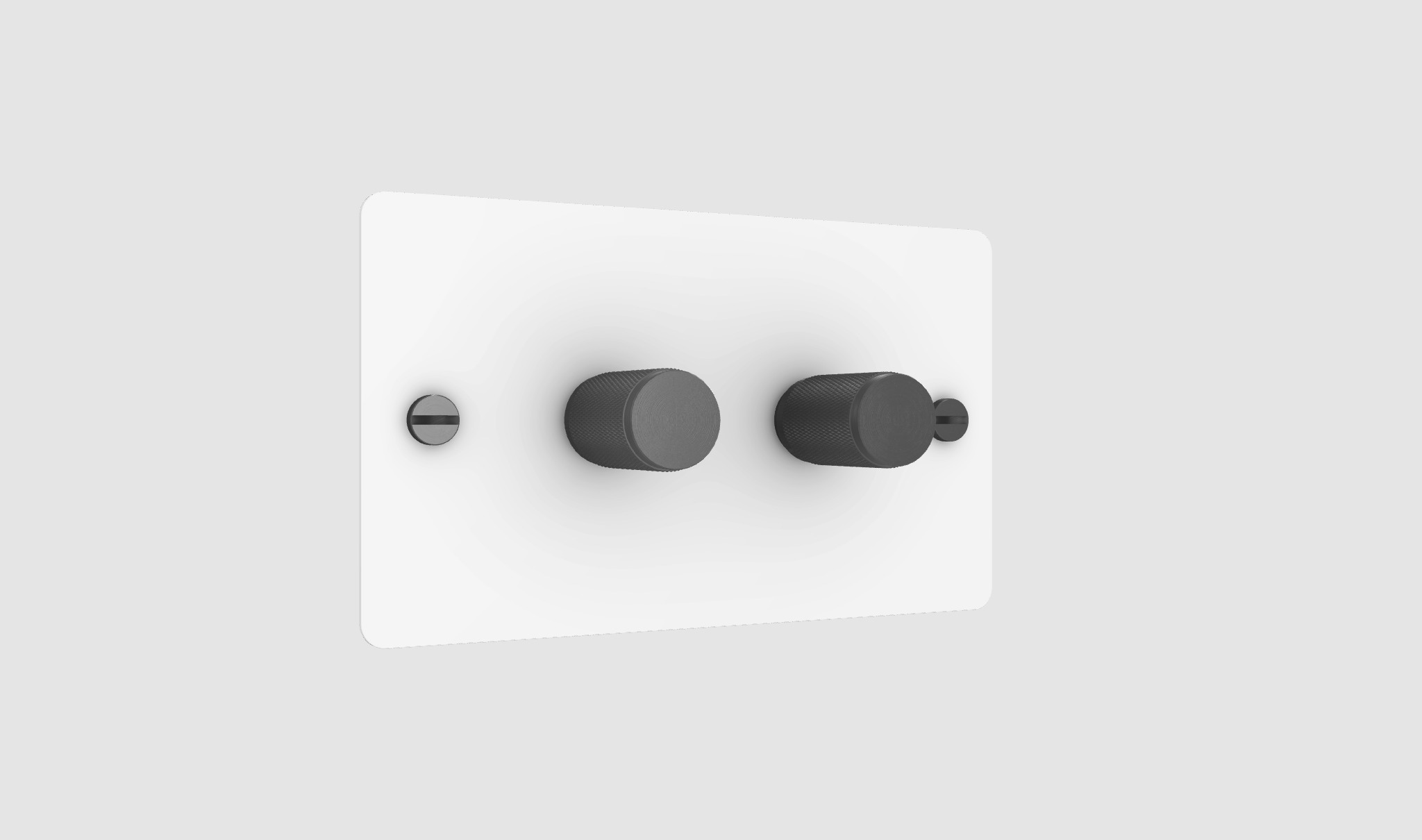

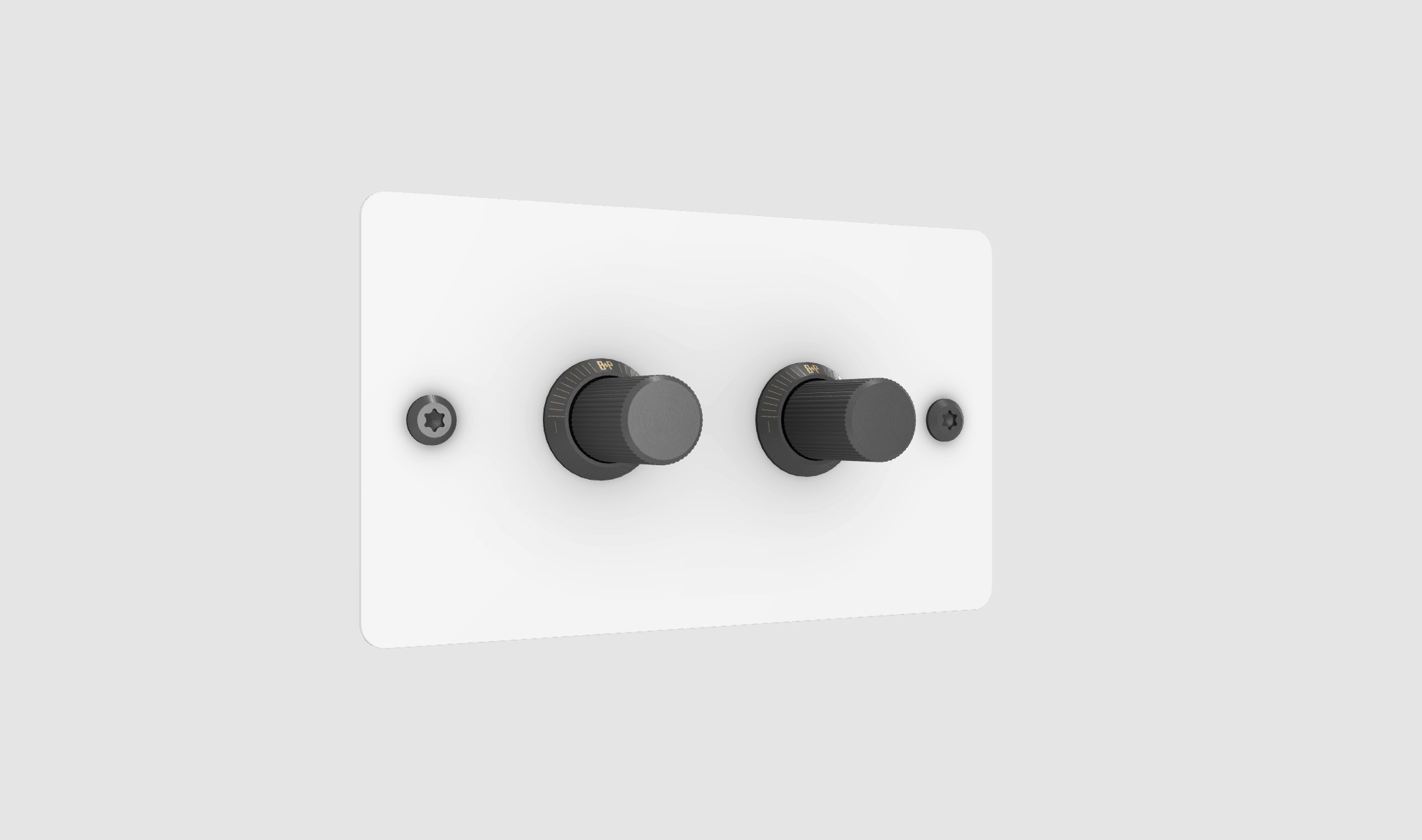

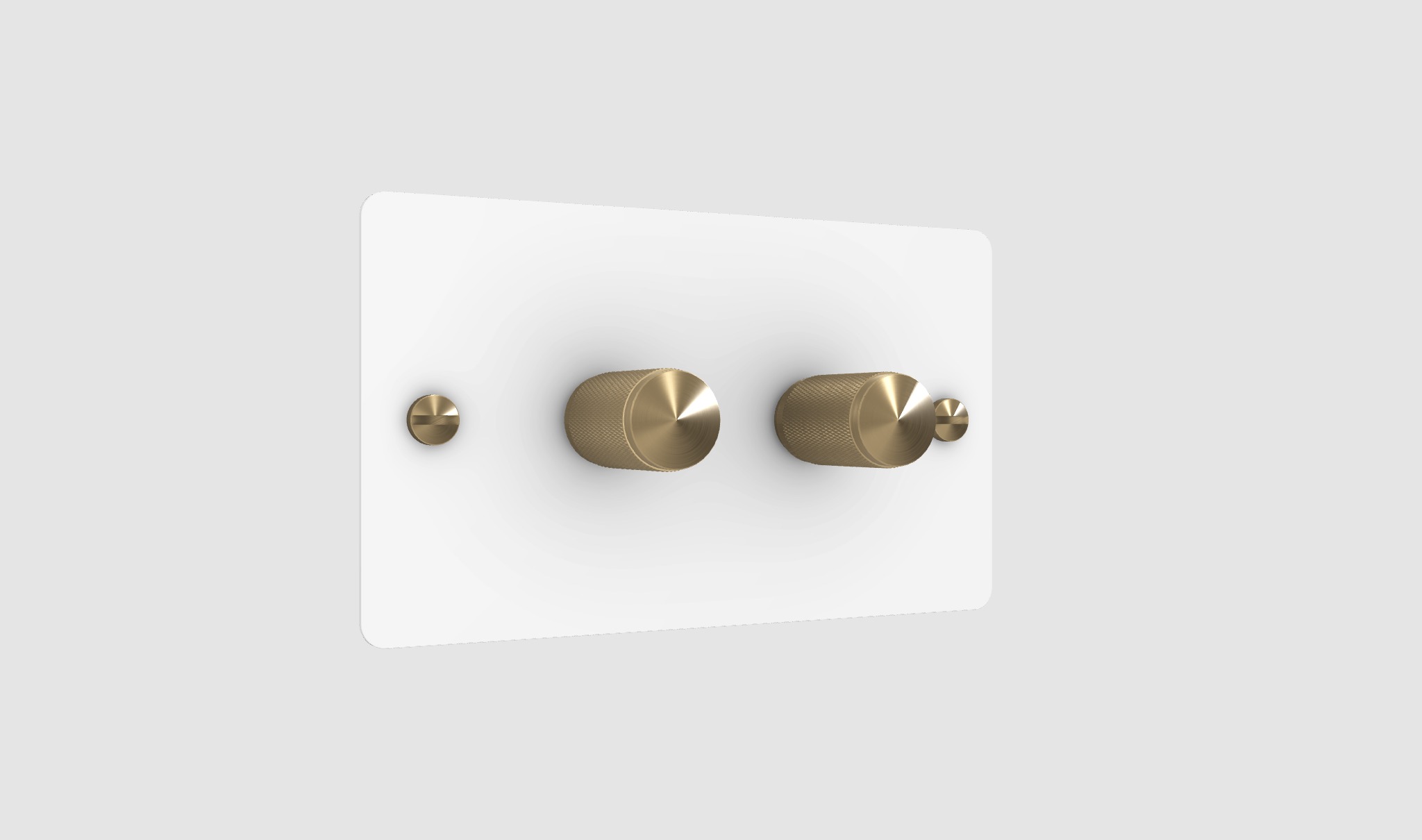

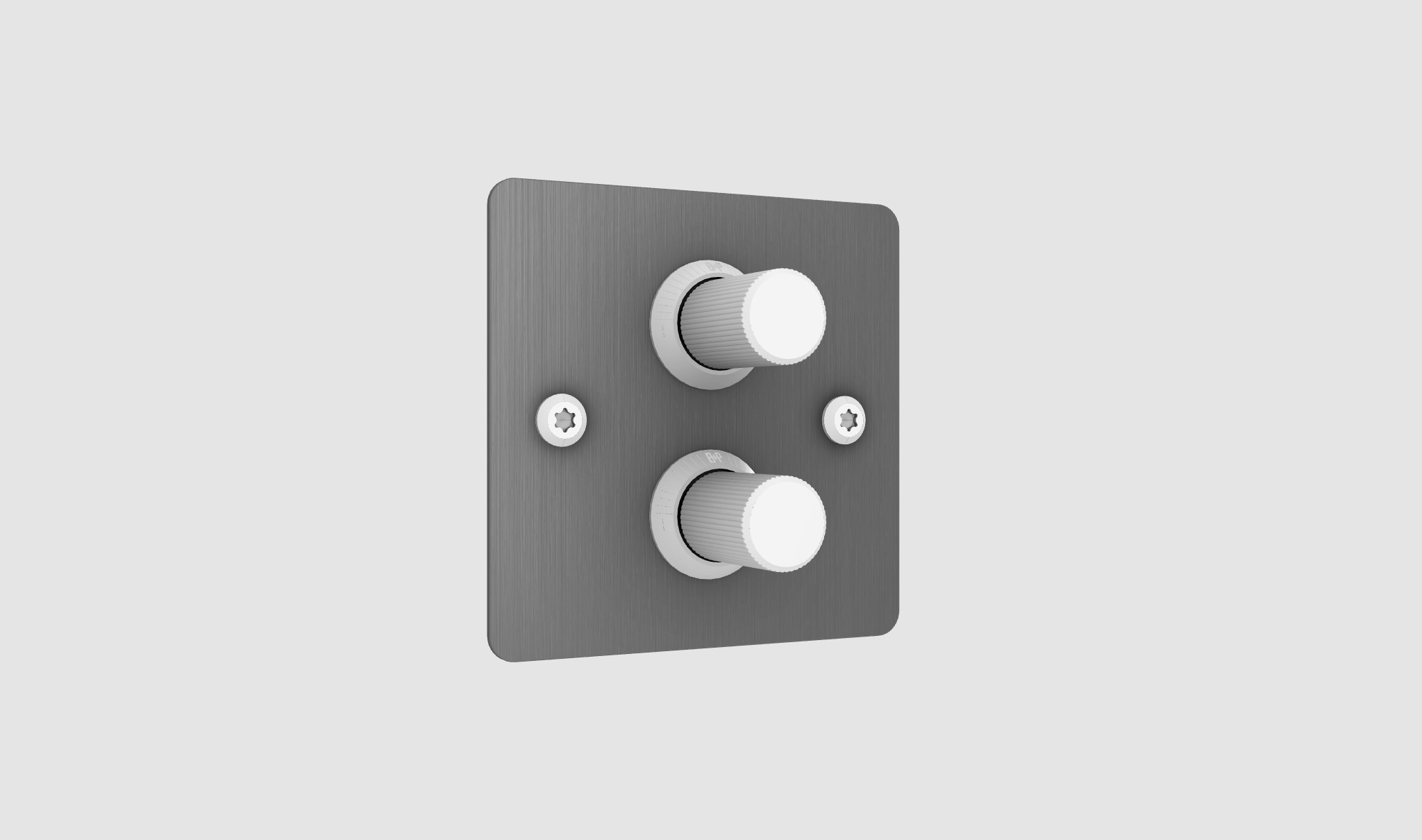

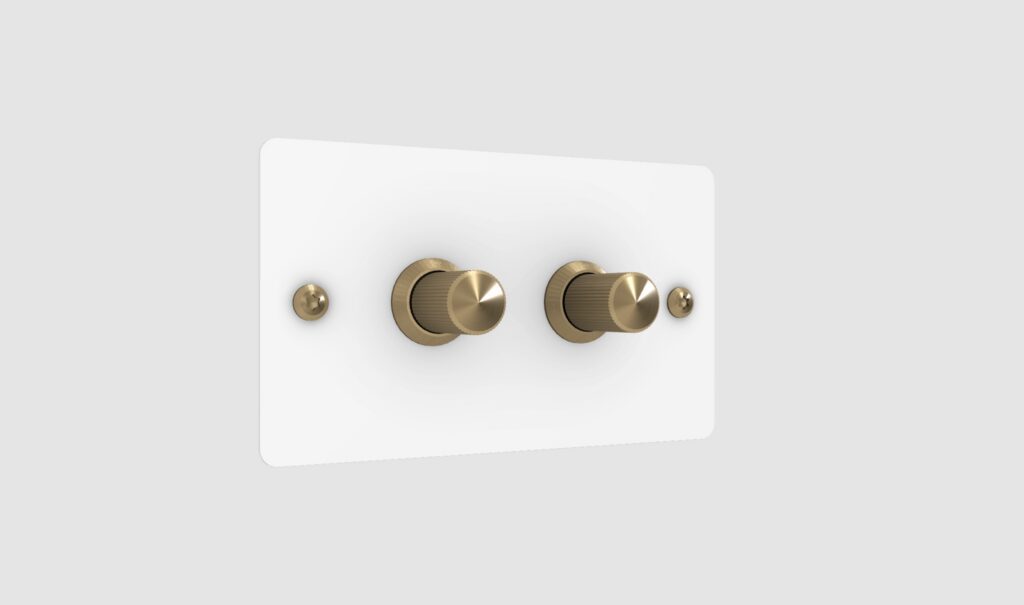

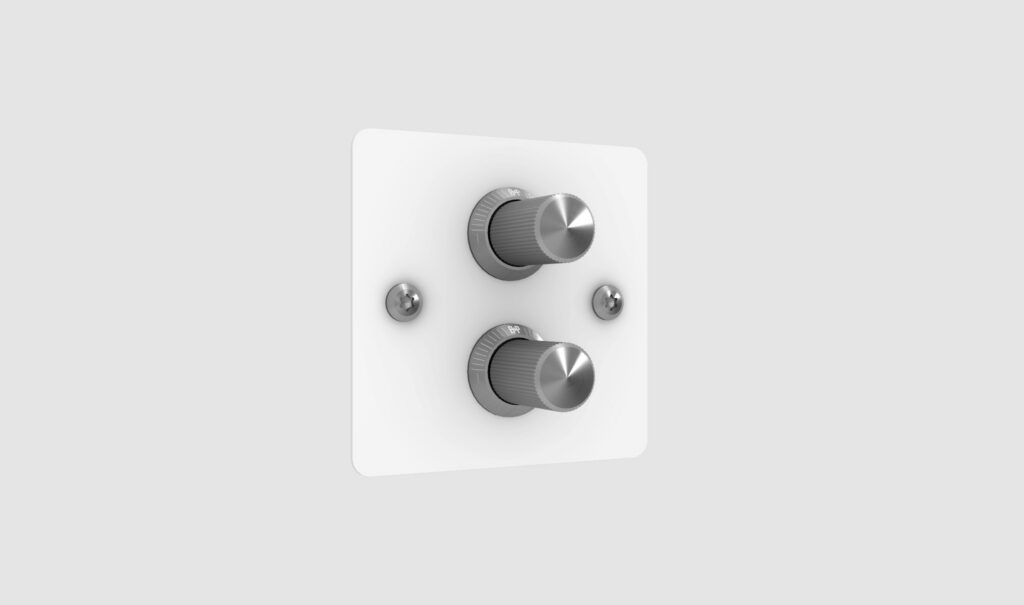

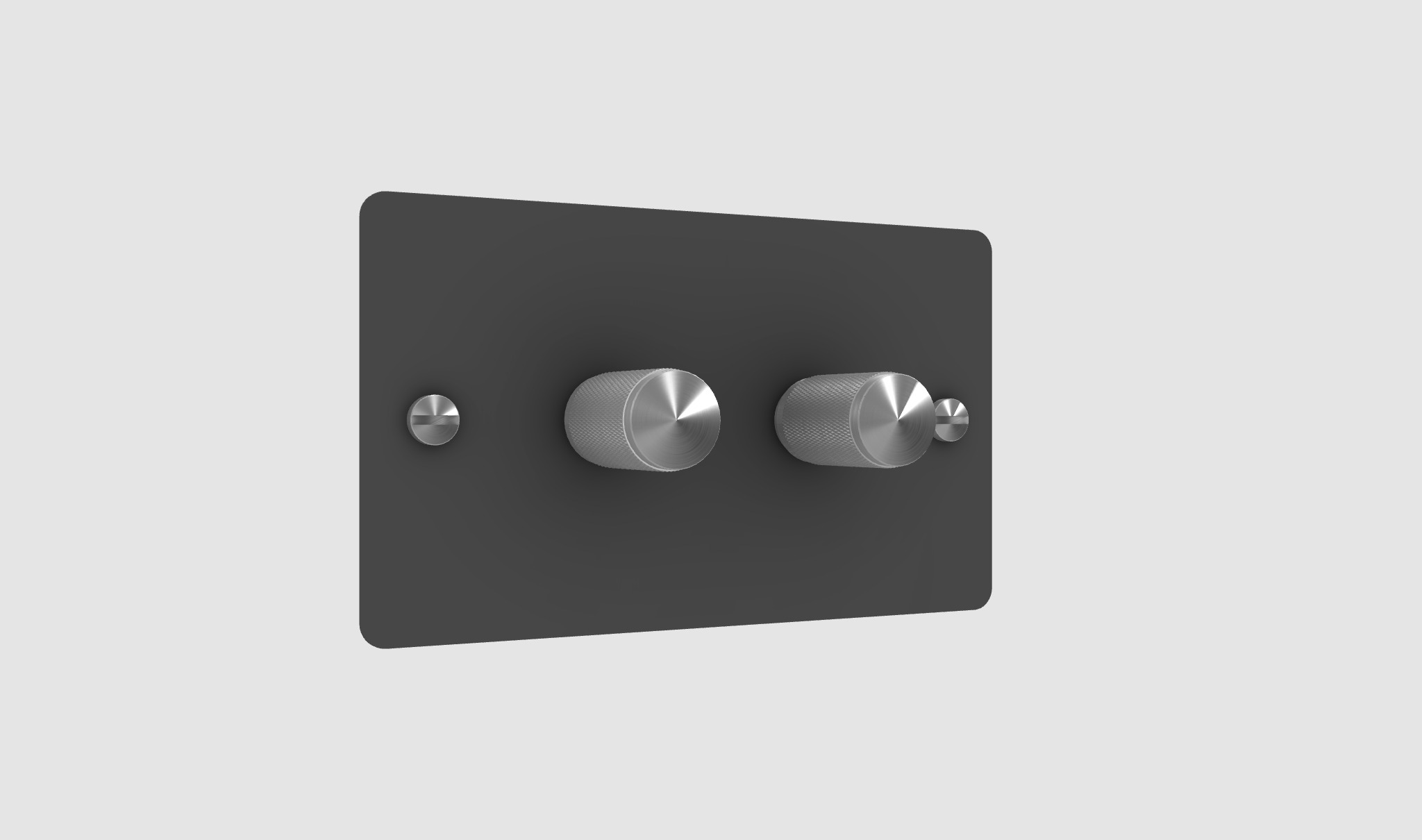

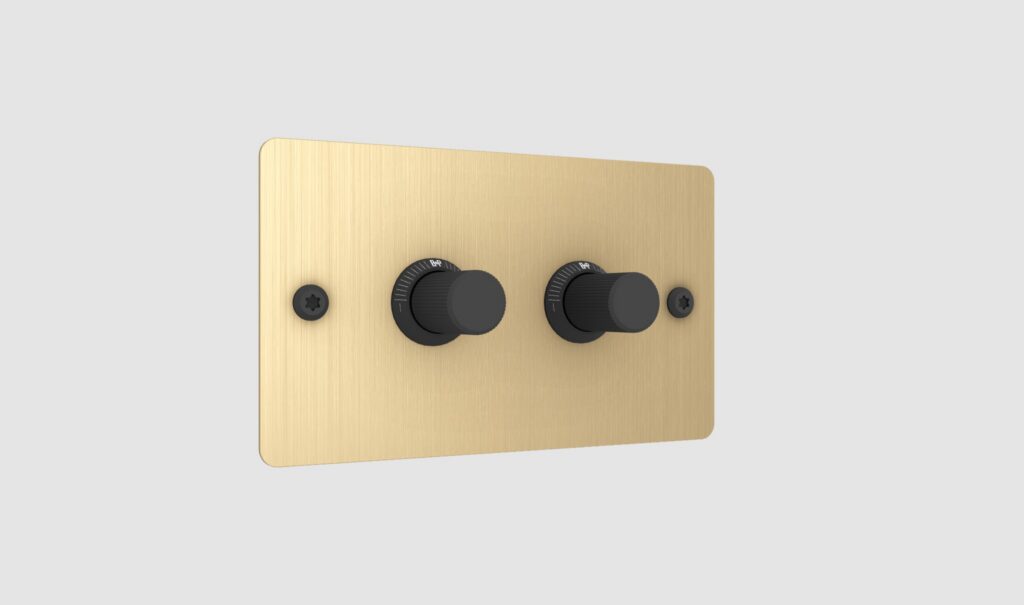

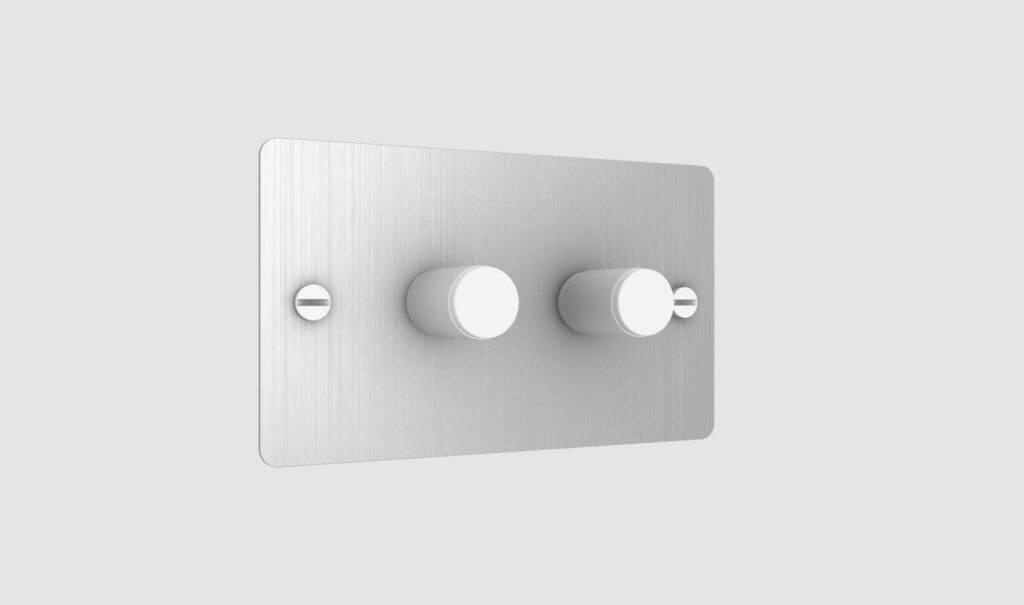

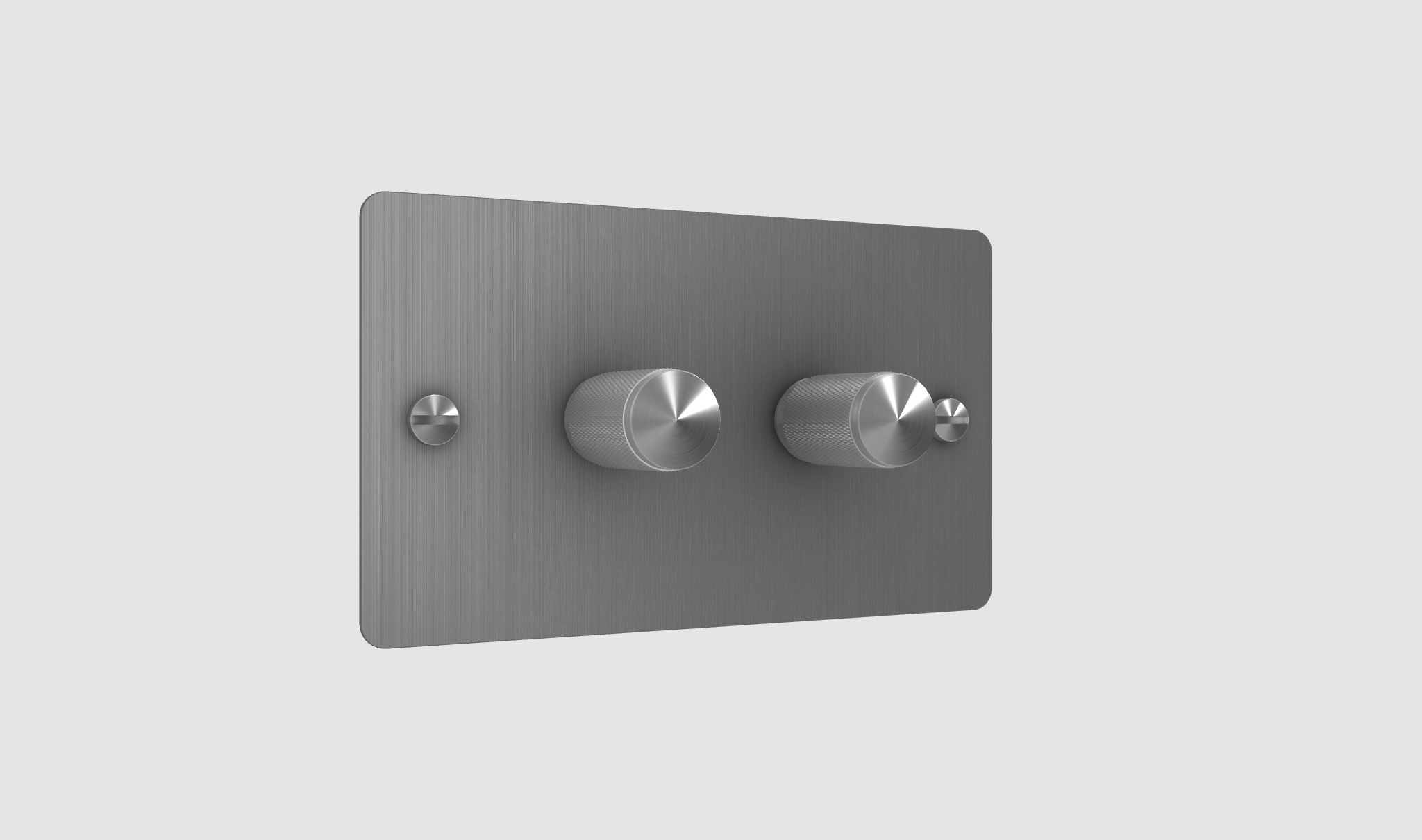

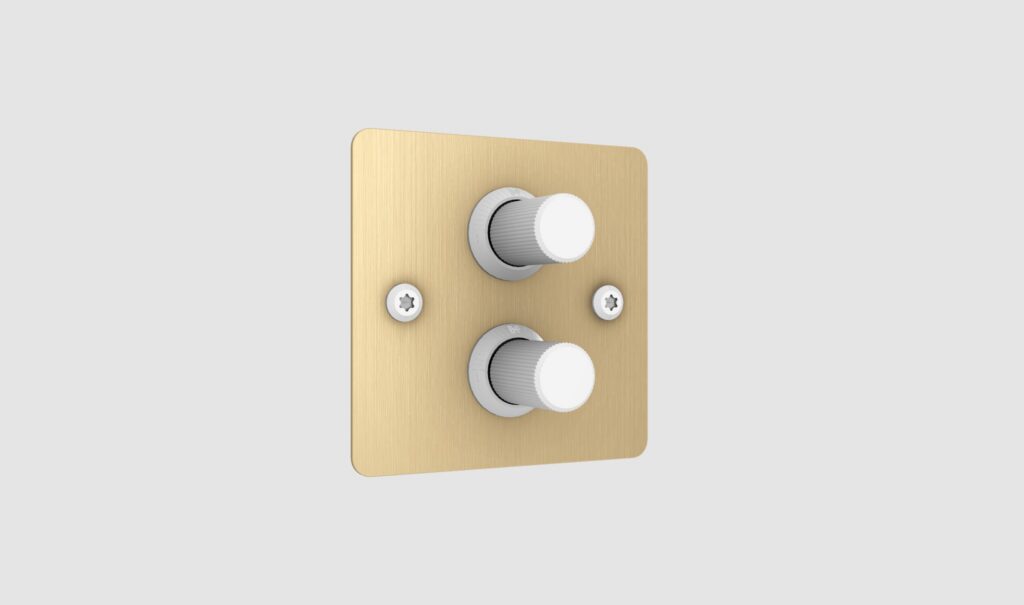

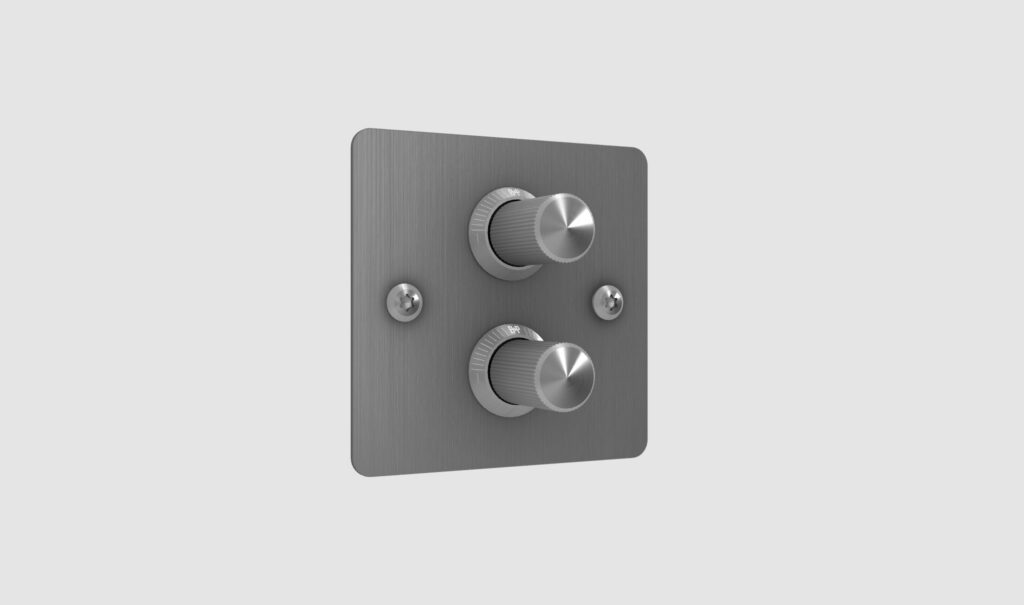

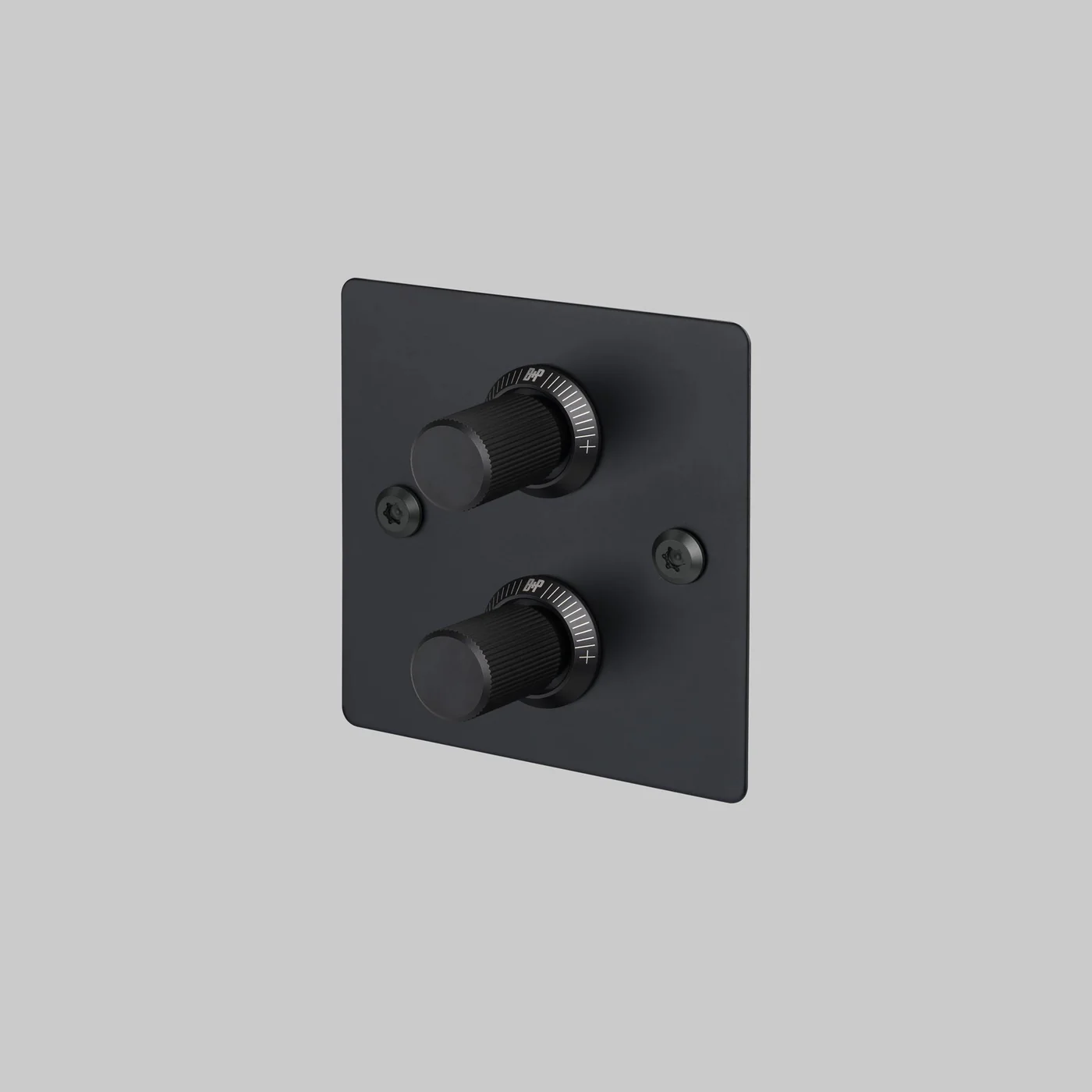

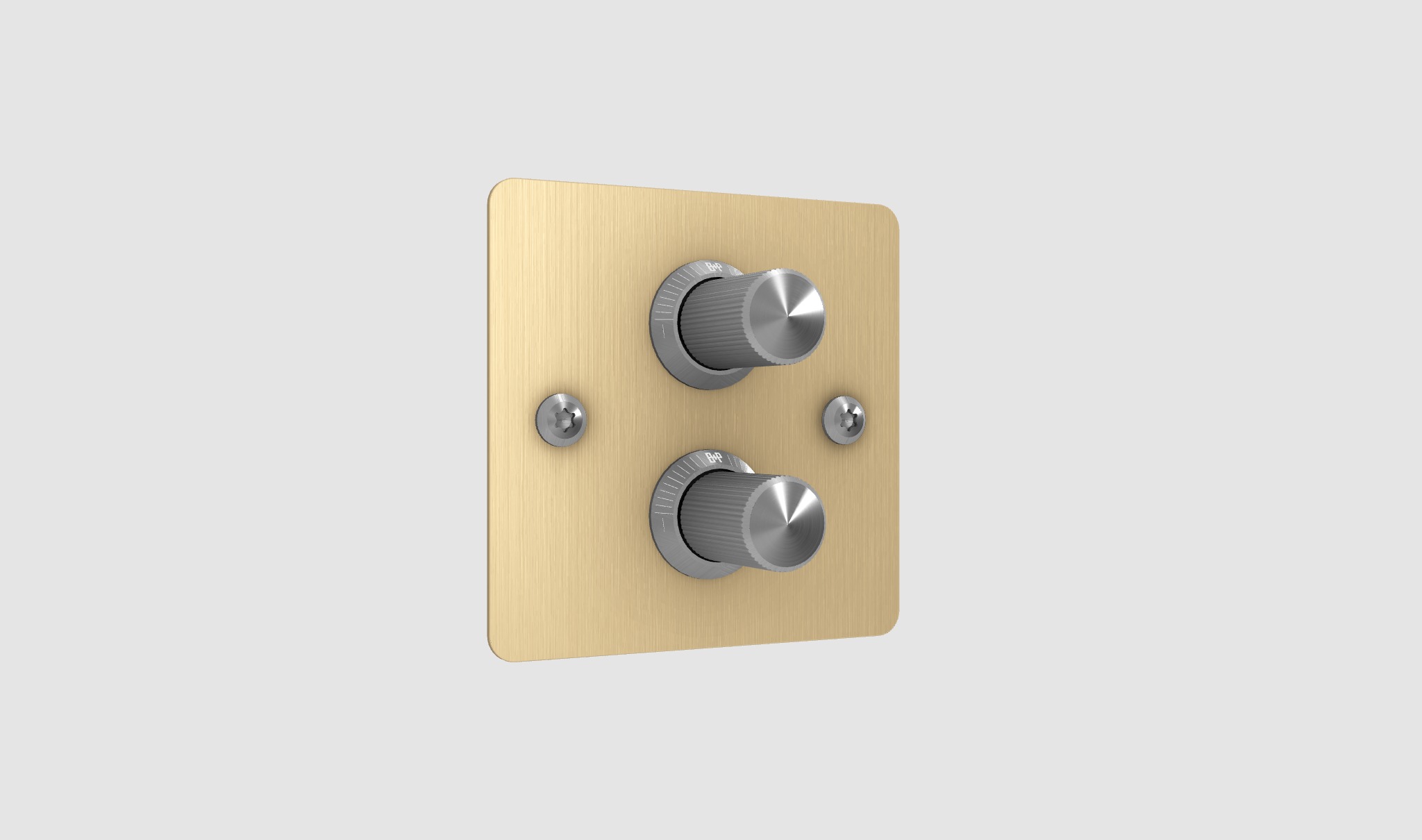

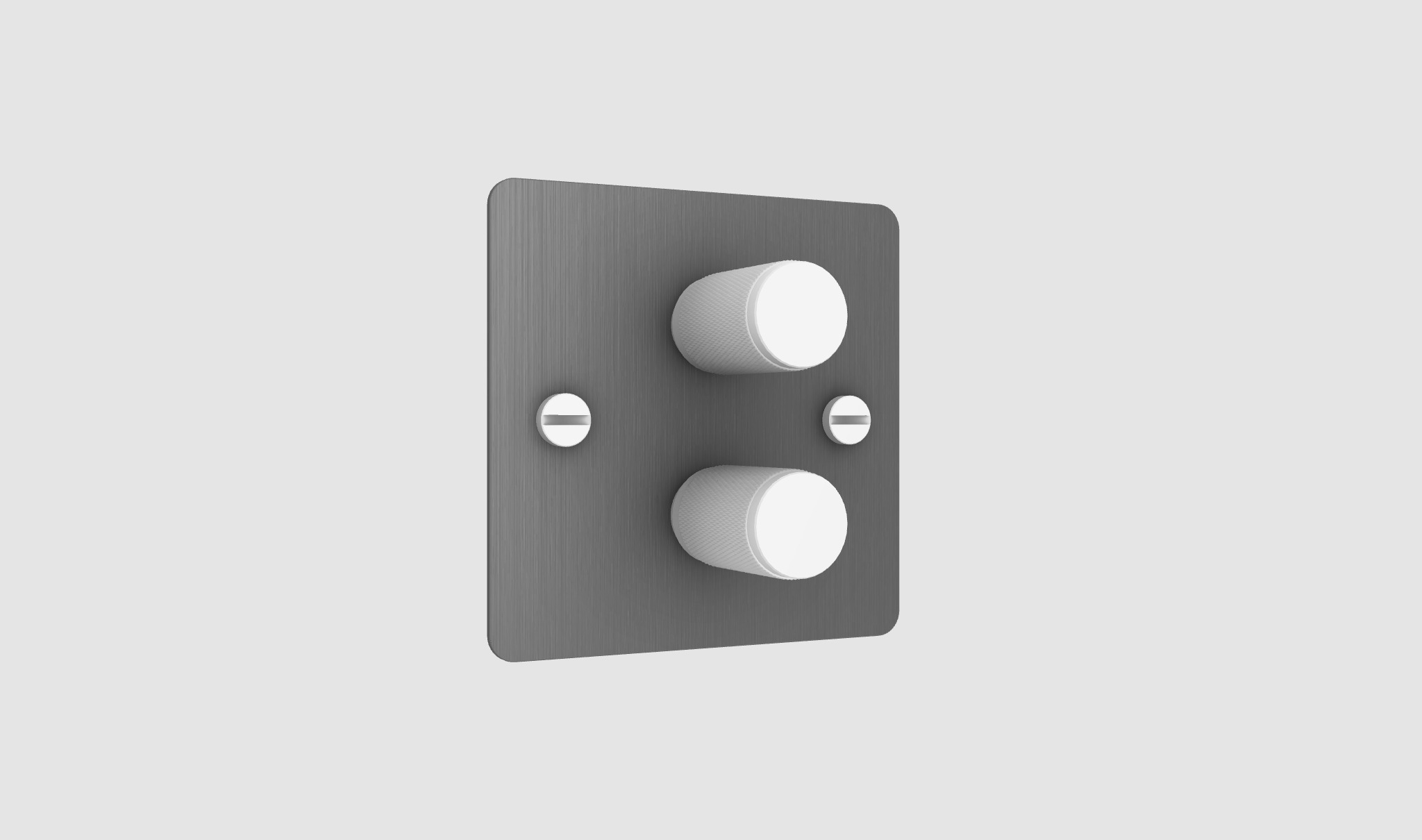

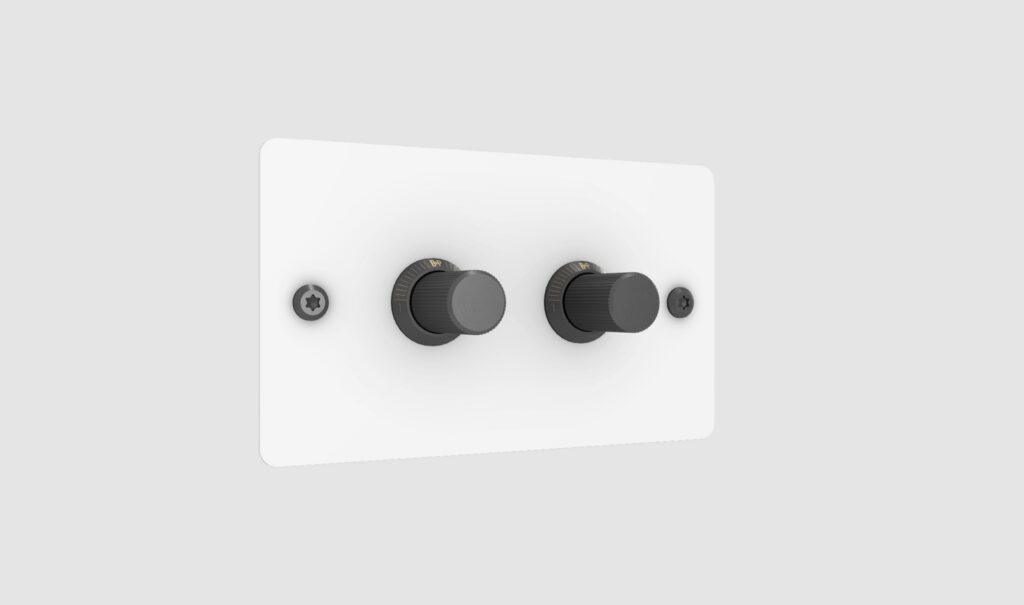

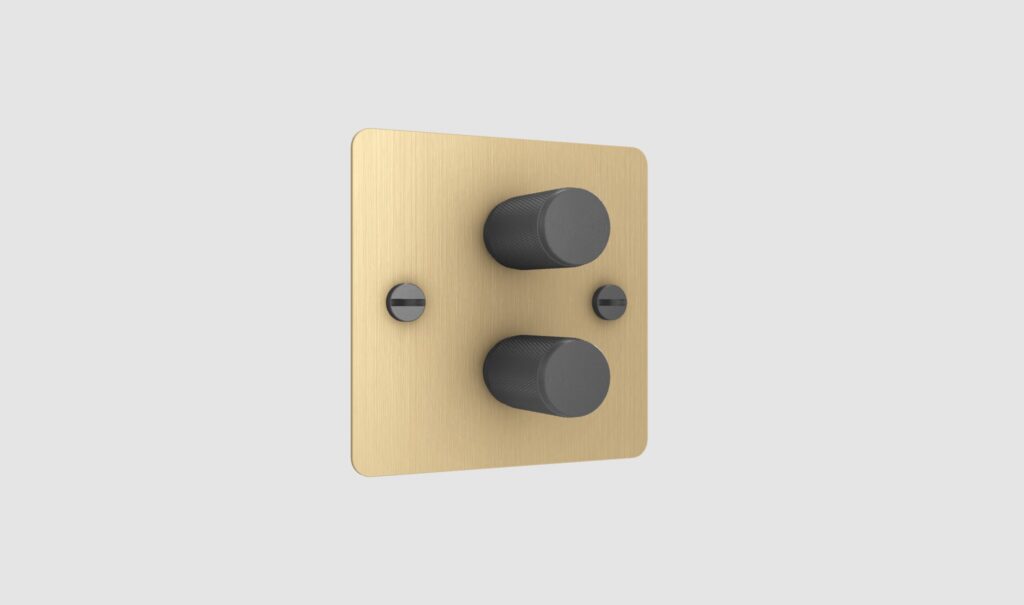

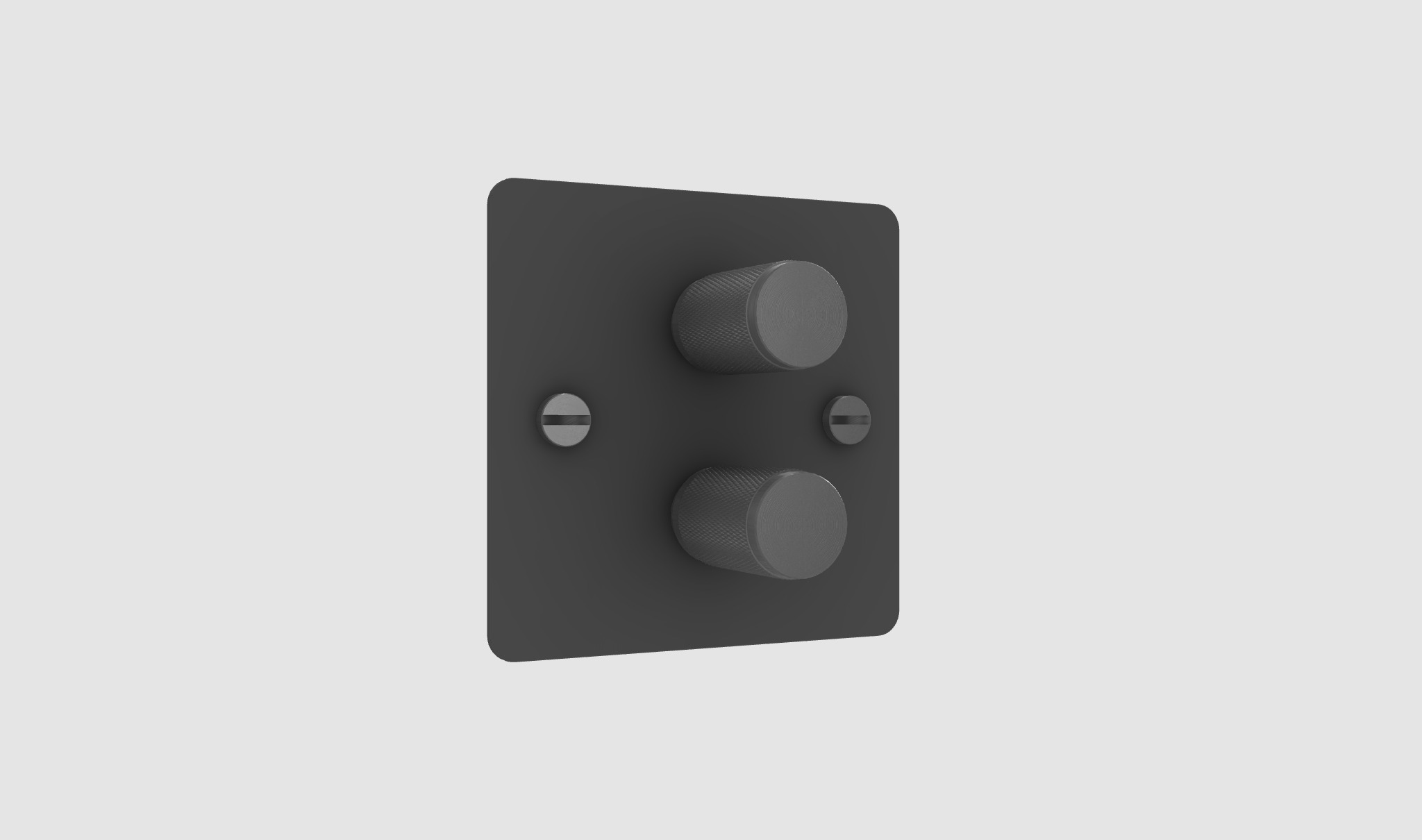

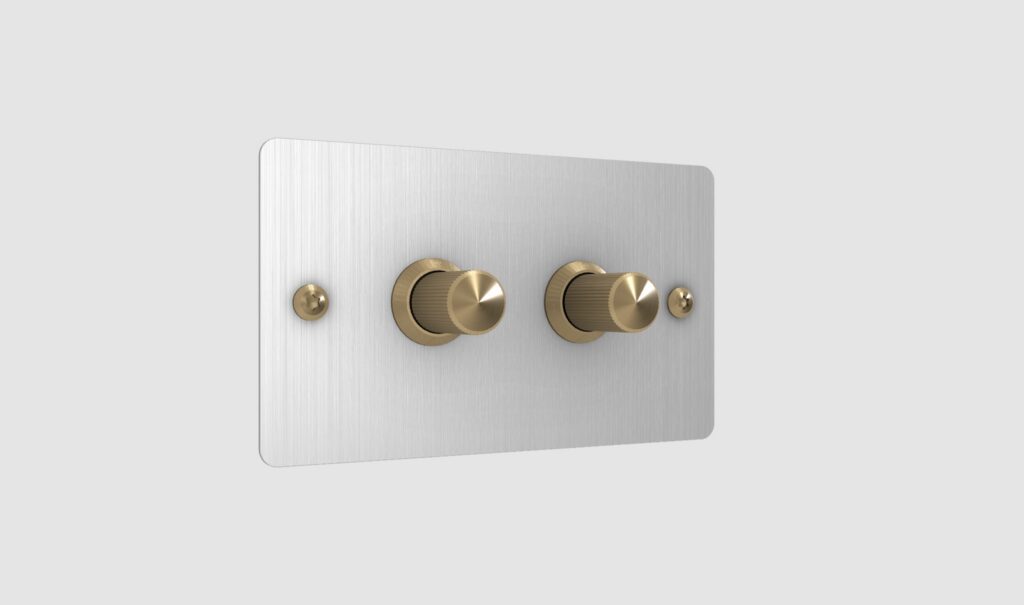

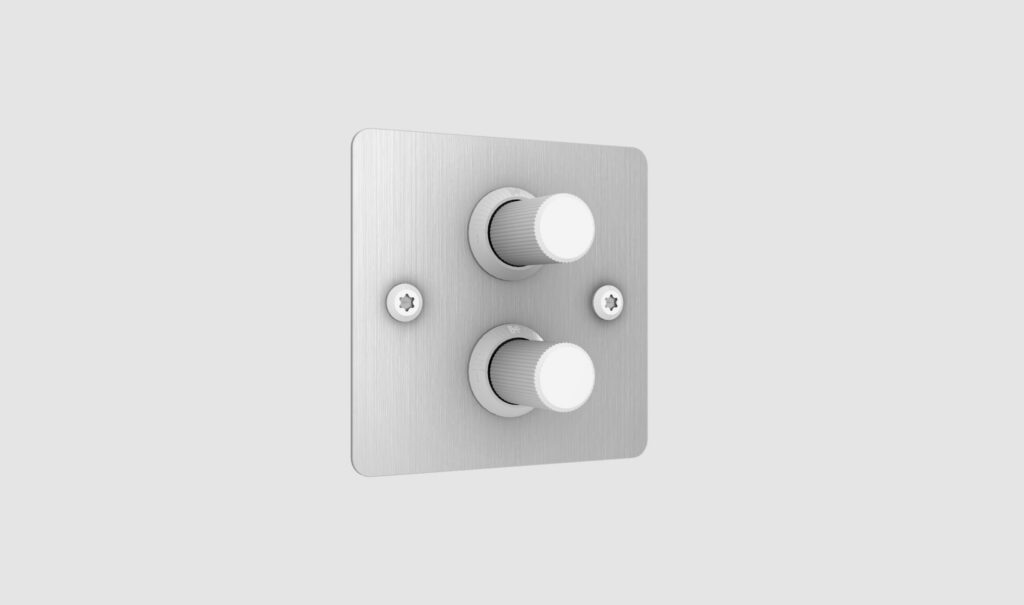

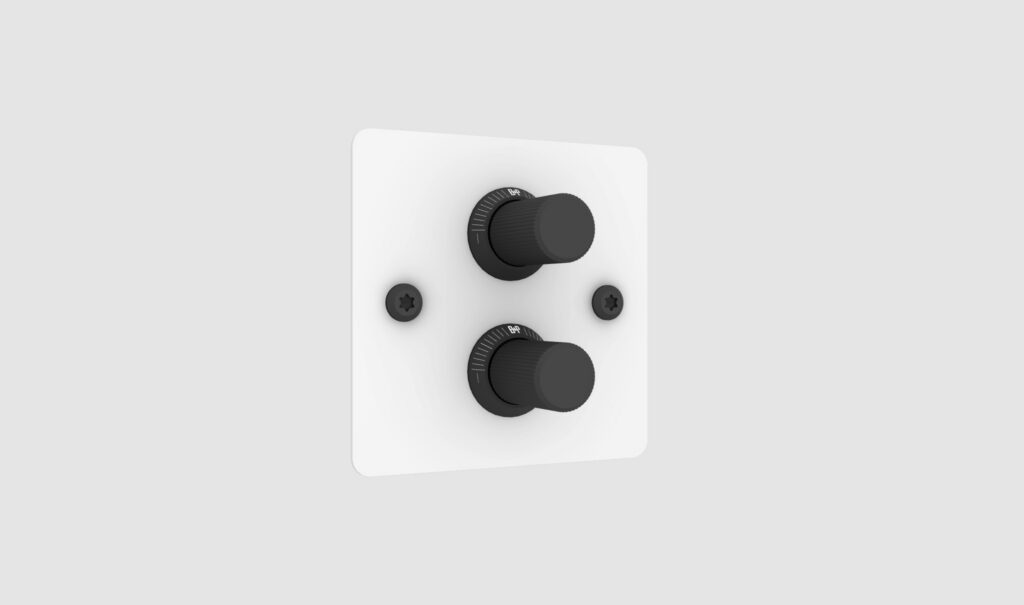

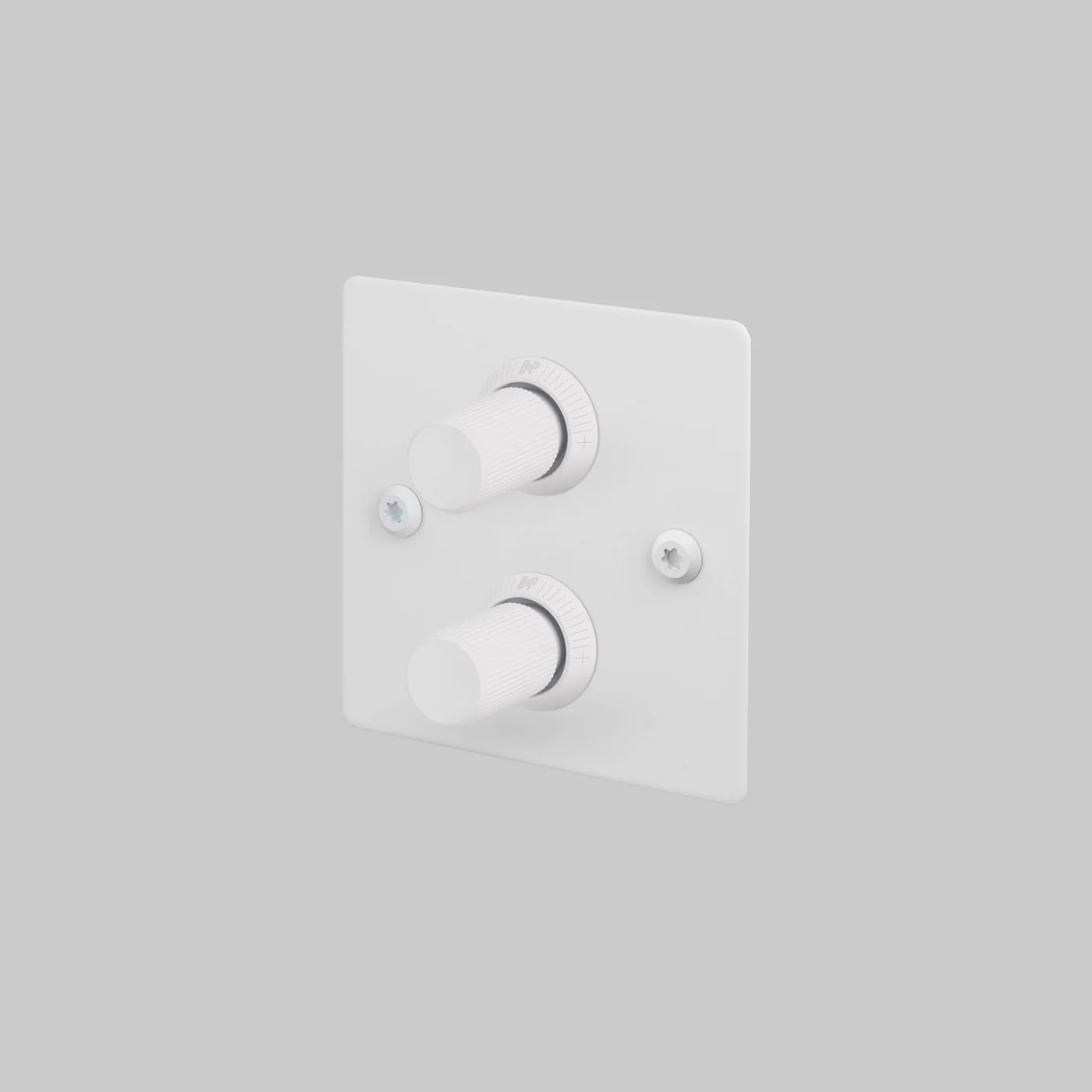

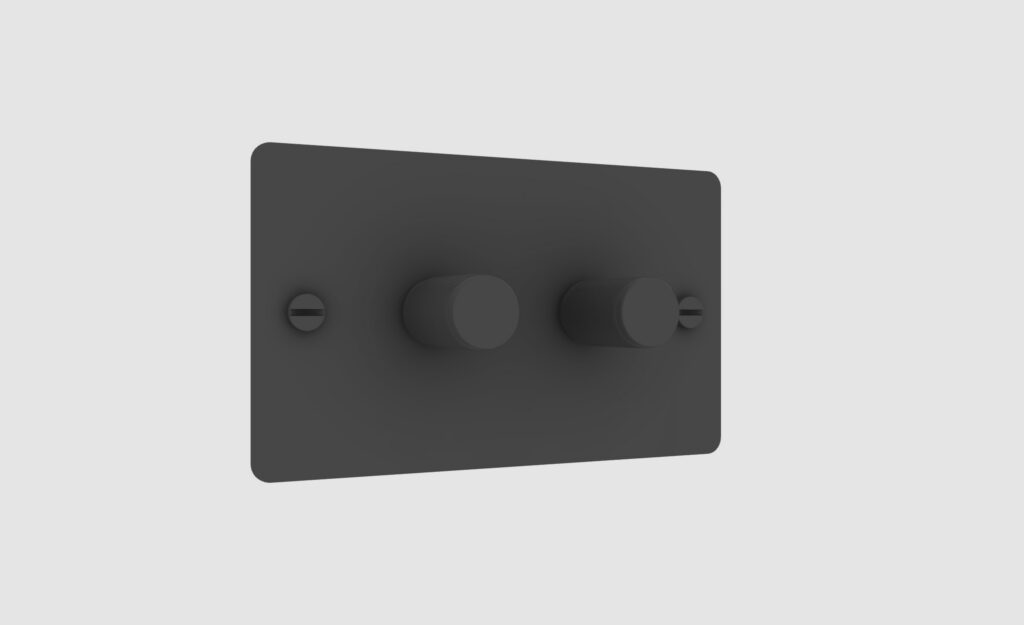

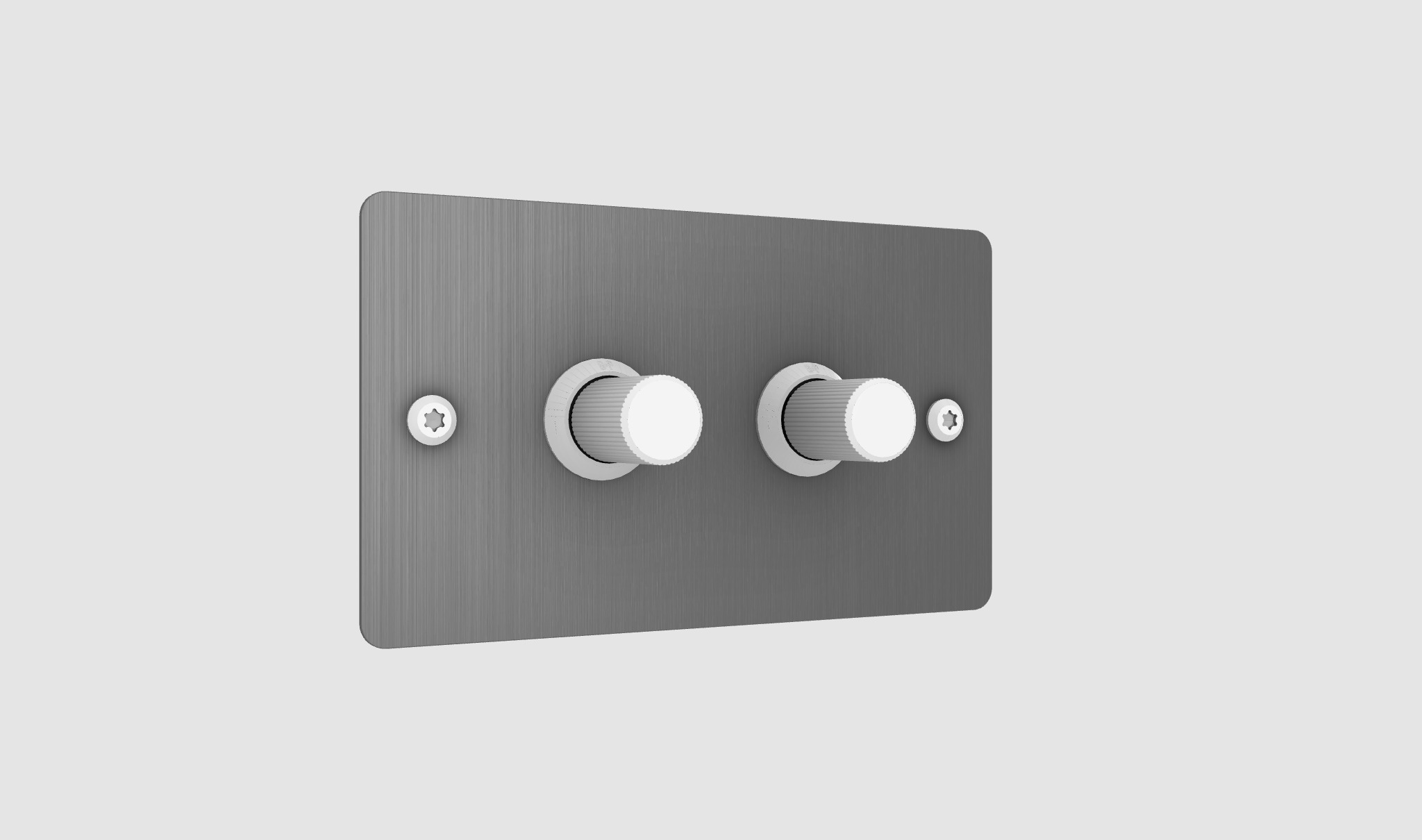

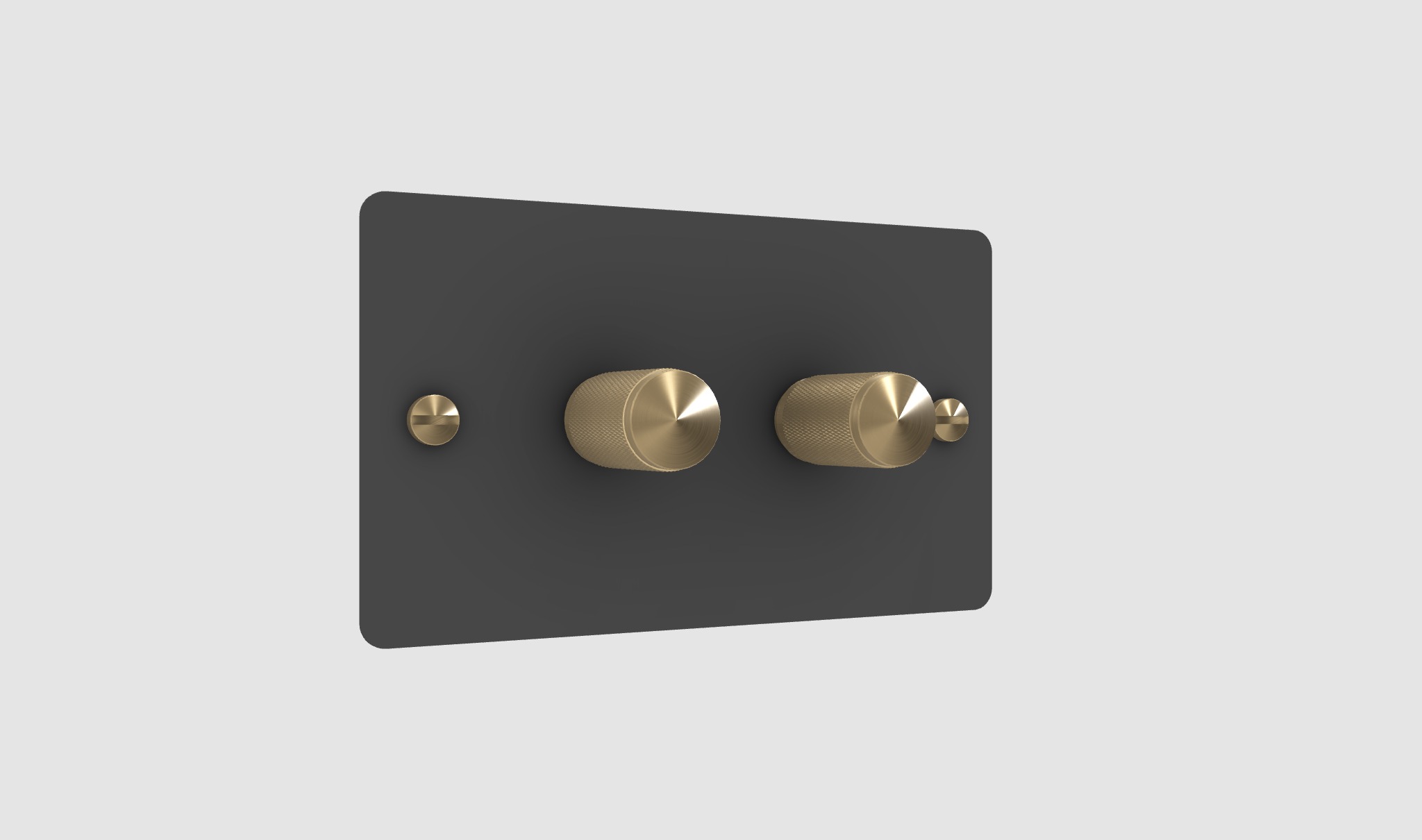

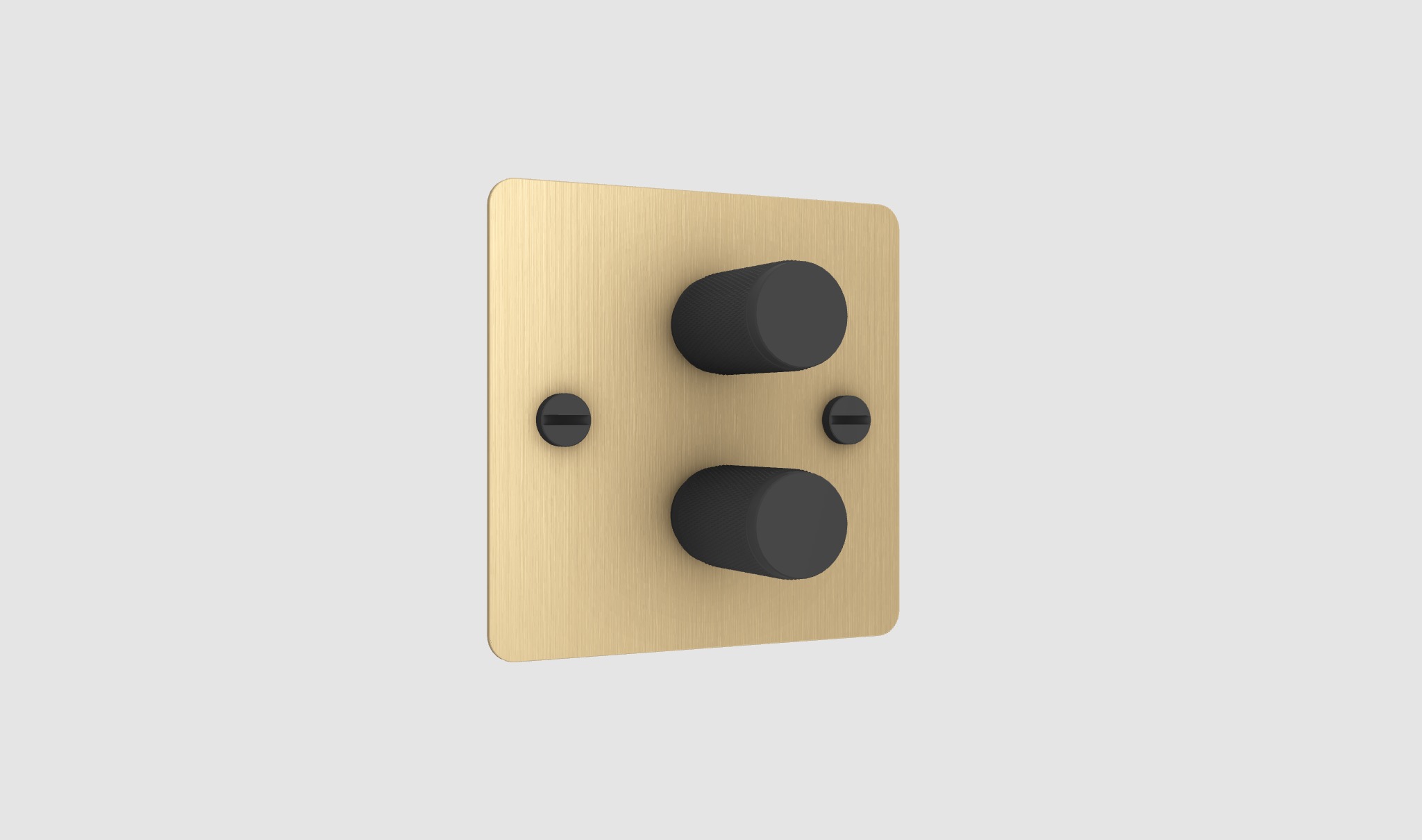

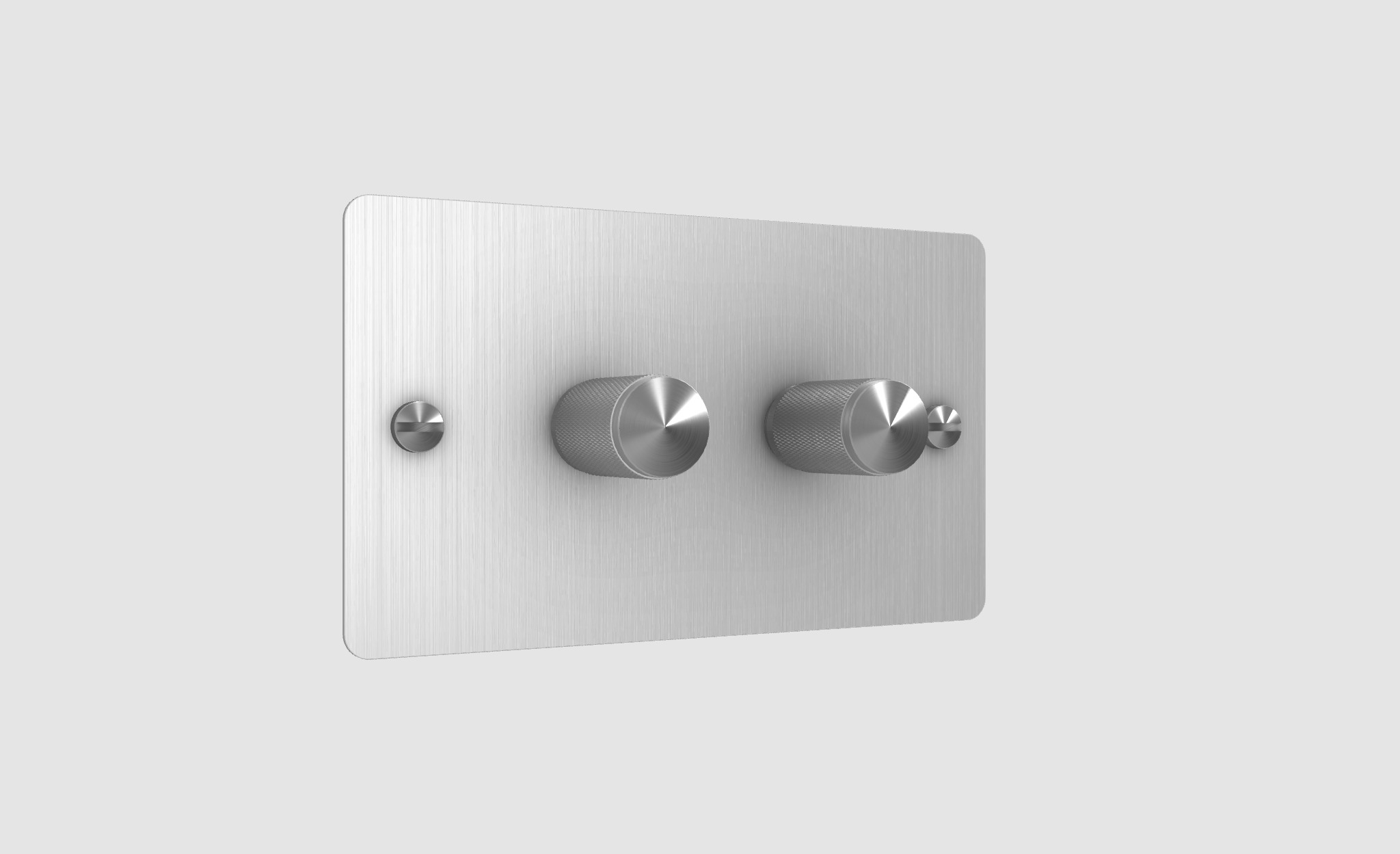

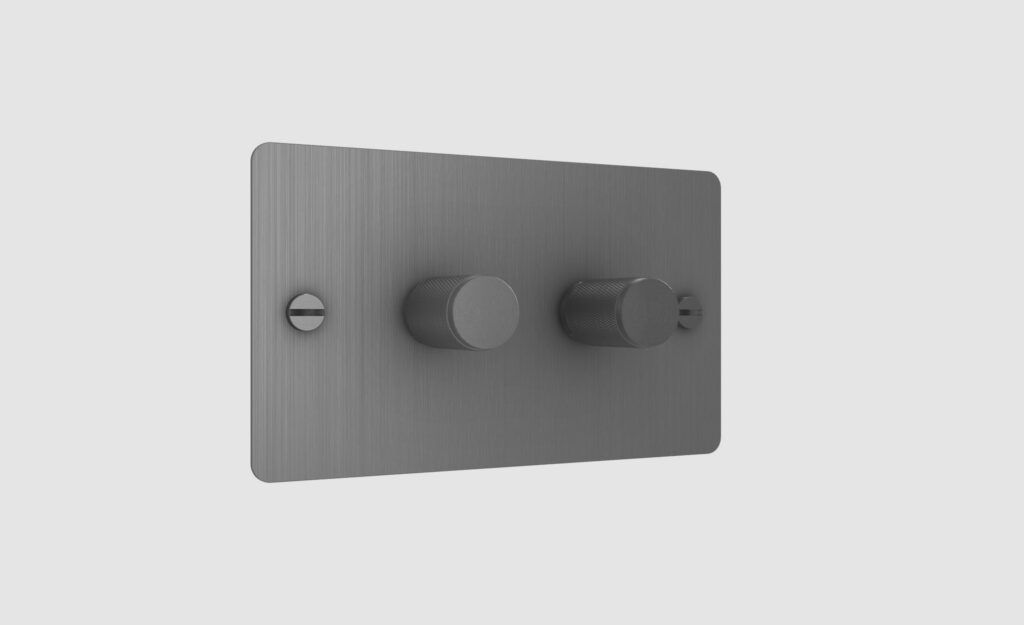

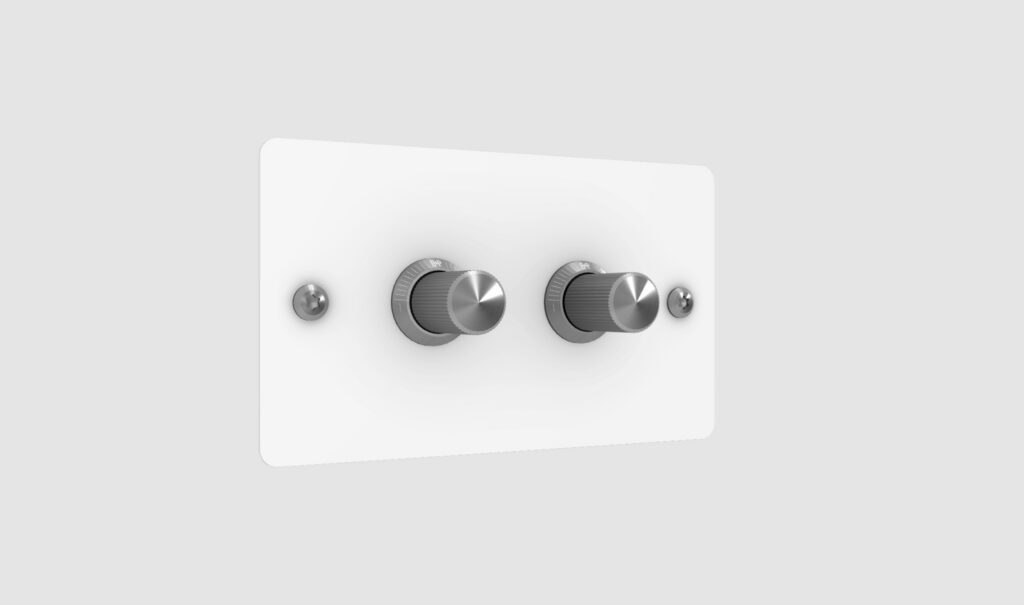

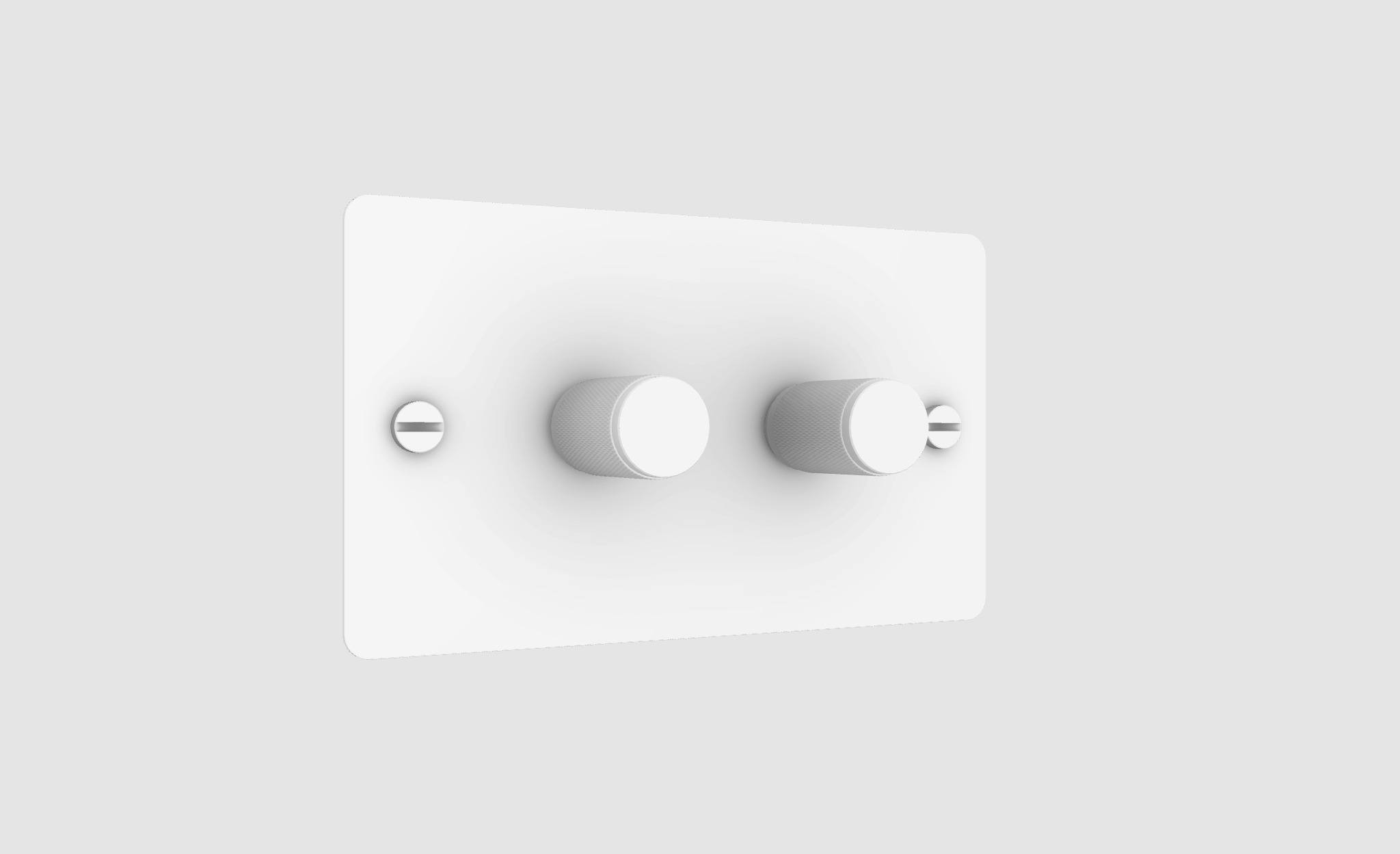

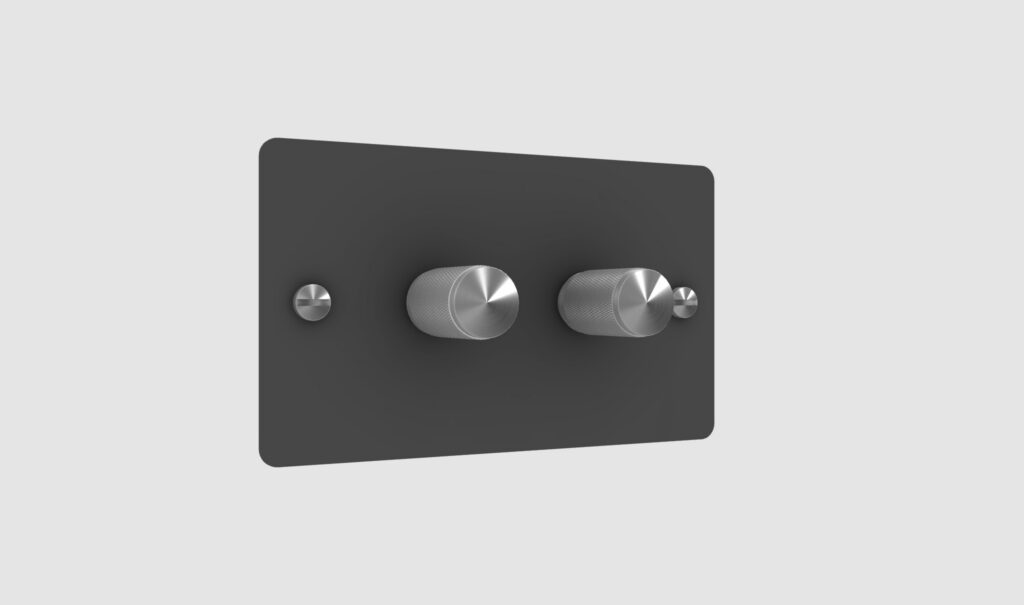

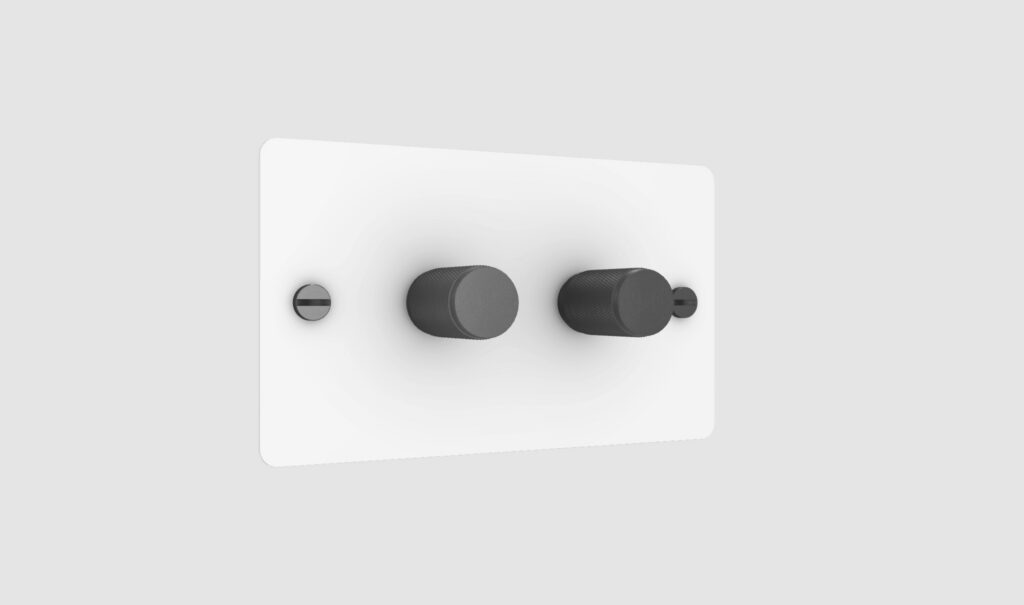

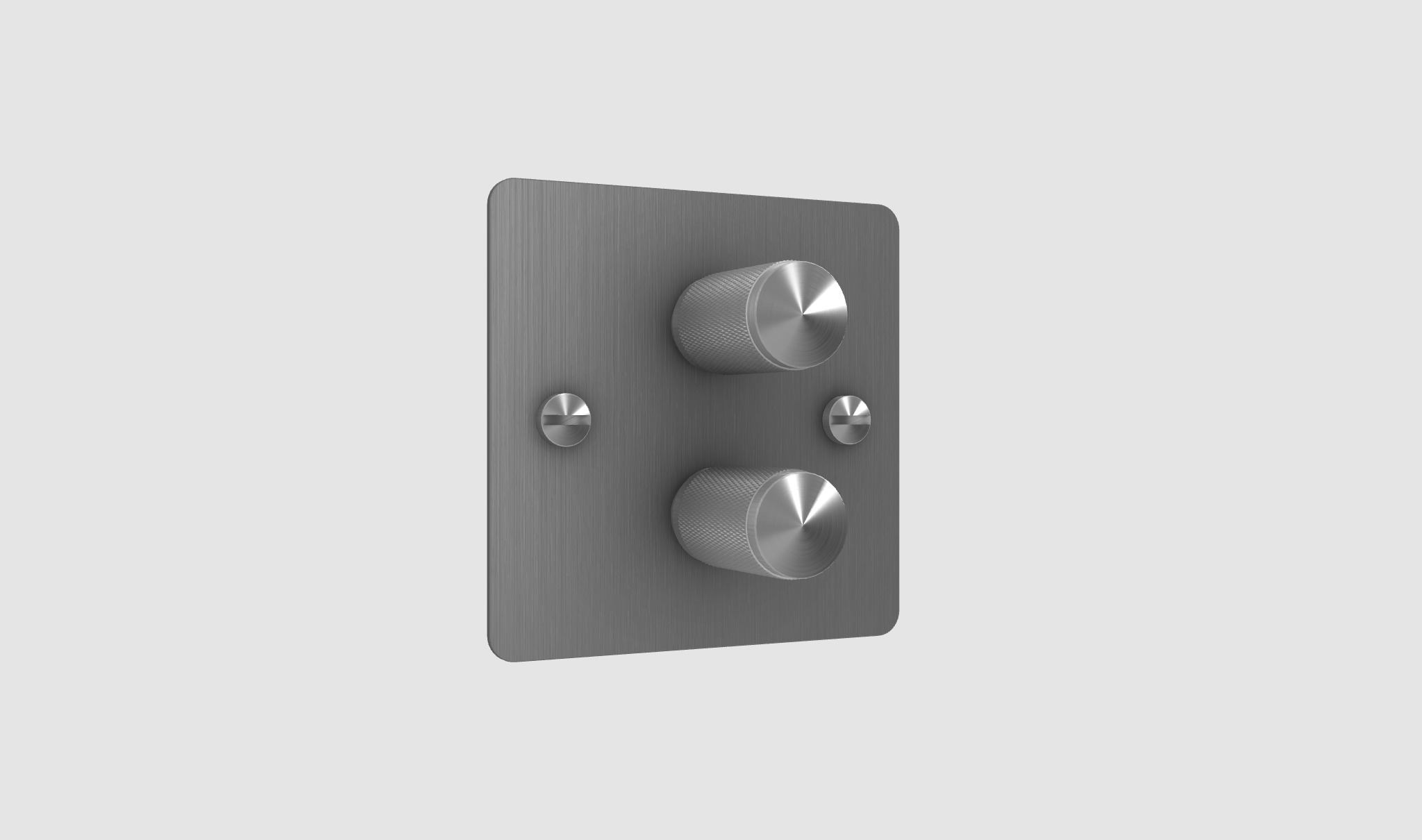

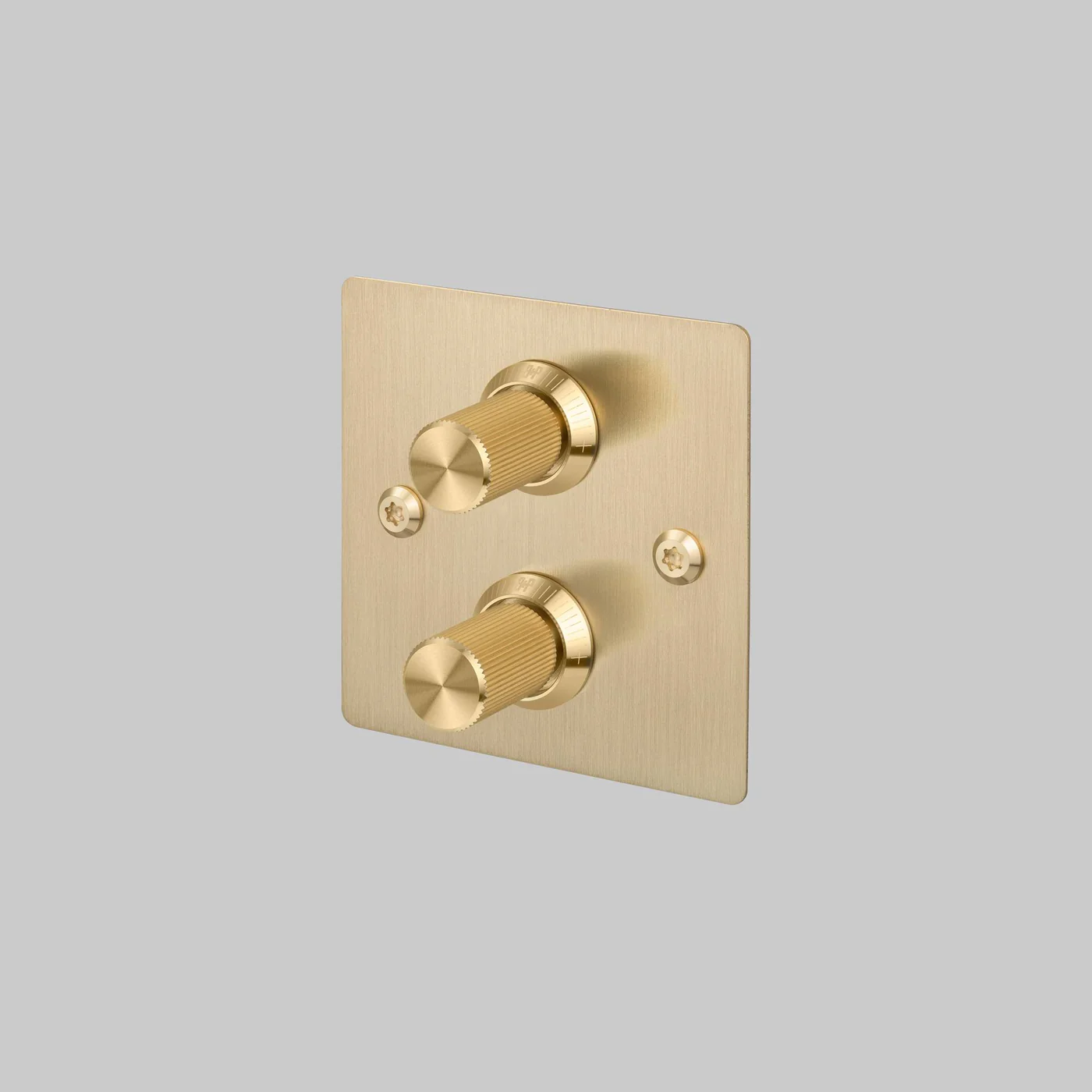

A 2G 120W double dimmer switch made from solid metal. It features a brushed solid metal plate, two rotary dimmer modules and a detail kit with our signature dimmer knob, solid metal collar nuts and coin screws. This dimmer is part of our Custom Switches + Sockets collection, which can be customised in the years to come functionally and aesthetically. Simply switch out the modules, or change the look with one of our detail kits. This piece is delivered with its components in separate boxes. See tech spec for more information and, if in doubt, always consult a licensed electrician.

--- Select the options below for more information ---

Options | Wall Plate Size *

Options | knurl *

Options | Finish *

Options | Detail Kit *

Options | Dimmer Type *

Qty *

Additional information

Origin

United Kingdom

SPECIFICATIONS

Solid metal switch plate with 2x dimmer module.

Style: Push On/Off Rotary Dimmer
Dimming Type: Trailing edge (native, default) and leading edge (simulated)
Input: 230-240 VAC 50Hz
Load: LED 5-120W / HAL/INC 60-400W
Intelligent soft-start
BS EN 60669-2-1
Certified for use in UK, Europe and EAEU:
UKCA / CE / EAC

For use with standard 2-way and 3-way wiring accessories. Maximum one
dimmer module per circuit.
Not compatible with retractive switches and Buster + Punch multipoint
dimmers.
Not compatible with non-dimmable lamps & fixtures, compact fluorescent
lamps (CFLs) or electric motors (e.g. fans).
Not compatible with native TRIAC (leading edge) dimmable drivers.
Suitable for use with good quality ELV electronic drivers only. Certain
transformers & drivers may not behave according to their power rating
when used with a dimmer. In case of issues, change your driver(s), remove
one or more driver from the circuit.

The dimmer switch incorporates a soft-start feature, which may result in a
1–2 second delay before full illumination to reduce inrush current and
extend lamp life.

Note: rotary action is smooth and silent during operation.
Compatible with UK standard 1G electricity back boxes (60.3mm screw
spacing). See dimensions of chosen module for required backbox depth.
Box must be flush mounted.

INCLUDED

1 x 1G/2G Wall Plate for 2x dimmers
2 x Dimmer Module/s
2 x Dimmer Detail Kit/s
2 x Plate Detail Kit
2 x 25mm Electricity Screws
2 x 50mm Electricity Screws

NOTICE

THE PRODUCT INFORMATION IS FOR REFERENCE ONLY. PLEASE REQUEST THE PRODUCT SPECIFICATION FOR THE MOST CURRENT AND ACCURATE INFORMATION.
